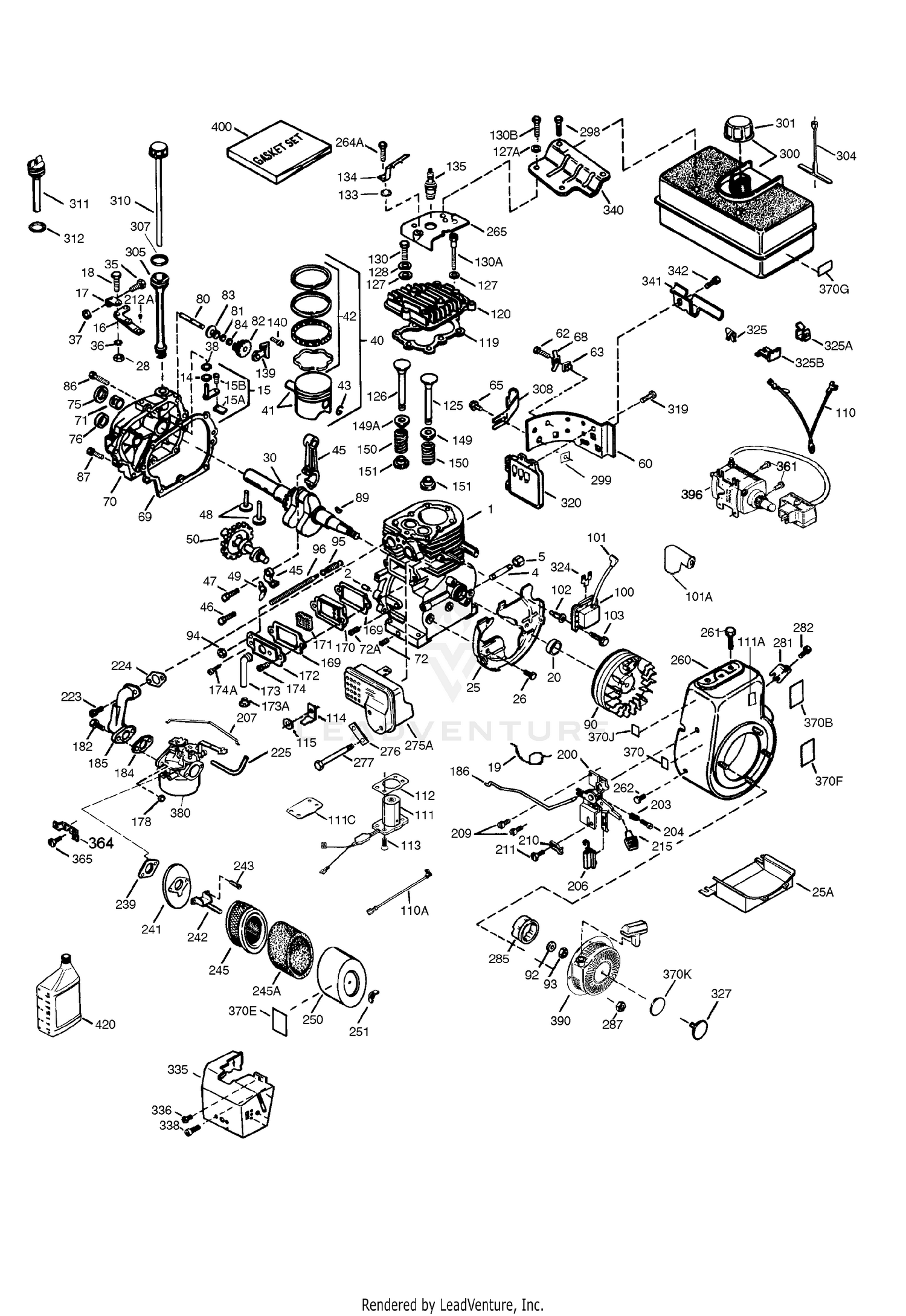

| Ref | Part Number | Description |
|---|
| 1 |
35385 |
CYLINDER Price: $222.77 |
| 2 |
27652 |
PIN Price: $1.58 |
| 14 |
28277 |
WASHER Price: $1.26 |
| 15 |
30699C |
GOVERNOR ROD Price: $12.16 |
| 15A |
30700 |
GOV YOKE Price: $1.22 |
| 15B |
650494 |
SCREW Price: $1.20 |
| 16 |
37458 |
GOV LEVER Price: $3.89 |
| 17 |
29916 |
CLAMP Price: $1.26 |
| 18 |
651028 |
SCREW Price: $1.22 |
| 20 |
35319 |
OIL SEAL Price: $3.50 |
| 25 |
37853 |
BAFFLE Price: $7.95 |
| 25A |
36244 |
BAFFLE Price: $6.54 |
| 25B |
651059 |
SCREW Price: $1.08 |
| 26 |
650561 |
SCREW Price: $1.25 |
| 28 |
30322 |
NUT Price: $1.22 |
| 30 |
35389A |
CRANKSHAFT Price: $116.91 |
| 35 |
29826 |
SCREW Price: $1.26 |
| 36 |
29918 |
WASHER Price: $1.26 |
| 37 |
29216 |
NUT Price: $1.22 |
| 38 |
29642 |
RET RING Price: $1.26 |
| 40 |
40012 |
PISTON ASSY 010 Price: $57.66 |
| 40 |
40049 |
PISTON ASSY STD This part replaces 40011. Price: $56.41 |
| 42 |
40013 |
RING SET STD Price: $20.32 |
| 42 |
40014 |
RING SET 010 Price: $30.71 |
| 43 |
27888 |
RET RING Price: $1.26 |
| 45 |
36897A |
CONN ROD Price: $34.63 |
| 47 |
651033A |
SCREW This part replaces 651033. Price: $1.12 |
| 48 |
34034A |
VALVE LIFTER This part replaces 34034. Price: $7.41 |
| 49 |
36896 |
OIL DIPPER Price: $1.22 |
| 50 |
35375 |
CAMSHAFT Price: $72.17 |
| 60 |
33273A |
EXTENSION Price: $5.21 |
| 62 |
650760 |
SCREW Price: $1.17 |
| 69 |
37342 |
GASKET Price: $8.45 |
| 70 |
33626C |
CYL COVER Price: $109.19 |
| 72 |
27642 |
PIPE PLUG Price: $1.26 |
| 75 |
33625 |
OIL SEAL Price: $7.16 |
| 80 |
37587 |
GOV SHAFT Price: $1.26 |
| 81 |
651080 |
WASHER Price: $1.24 |
| 82 |
37588 |
GEAR Price: $6.54 |
| 83 |
30588A |
GOV SPOOL Price: $1.26 |
| 84 |
29193 |
RET RING Price: $1.26 |
| 86 |
650833 |
SCREW Price: $1.20 |
| 87 |
650832 |
SCREW Price: $1.14 |
| 89 |
32589 |
KEY Price: $1.05 |
| 90 |
611090 |
FLYWHEEL Price: $118.92 |
| 92 |
650880 |
WASHER Price: $1.20 |
| 93 |
650881 |
NUT Price: $1.20 |
| 94 |
651016 |
NUT Price: $1.22 |
| 95 |
30886A |
EXT SPRING Price: $2.62 |
| 96 |
30845A |
ADJ BOLT Price: $5.21 |
| 100 |
35135B |
LAMINATION This part replaces 35135A. Price: $49.95 |
| 101 |
610118 |
PLUG COVER Price: $4.45 |
| 102 |
651024 |
STUD Price: $2.60 |
| 103 |
651007 |
SCREW Price: $1.17 |
| 110 |
35589 |
GROUND WIRE Price: $1.26 |
| 110A |
36993 |
GROUND WIRE Price: $2.62 |
| 119 |
36448 |
GASKET Price: $6.85 |
| 120 |
36449 |
CYL HEAD-NLA Price: Call Us |
| 125 |
27878A |
EXH VALVE STD Price: $16.51 |
| 125 |
27880A |
EXH VALVE OS Price: $34.25 |
| 126 |
34035 |
INT VALVE ST Price: $10.91 |
| 127 |
650691 |
WASHER Price: $1.25 |
| 128 |
730324 |
WASHER KIT This part replaces 650690. Price: $6.86 |
| 130 |
650694A |
SCREW Price: $2.15 |
| 130A |
650273 |
SCREW Price: $1.25 |
| 135 |
33636 |
SPARK PLUG Price: $5.05 |
| 139 |
33369 |
BRACKET Price: $6.00 |
| 140 |
650965 |
SCREW This part replaces 650836. Price: $1.22 |
| 149 |
27882 |
VALVE CAP Price: $1.26 |
| 150 |
27881 |
VALVE SPRING Price: $2.62 |
| 151 |
32581 |
VALVE CAP Price: $4.49 |
| 151A |
35862 |
INT VALVE SEAL Price: $6.54 |
| 169 |
27896A |
GASKET Price: $1.00 |
| 170 |
28423 |
BREATHER Price: $9.29 |
| 171 |
28424 |
ELEMENT Price: $2.62 |
| 172 |
28425 |
VALVE COVER Price: $5.21 |
| 173 |
35350 |
TUBE Price: $4.57 |
| 174 |
650128 |
SCREW Price: $3.60 |
| 178 |
29752 |
NUT Price: $1.26 |
| 182 |
30088A |
SCREW Price: $1.26 |
| 184 |
33263 |
GASKET Price: $1.00 |
| 185 |
33877 |
INTAKE PIPE Price: $34.95 |
| 207 |
37858 |
GOV LINK Price: $6.00 |
| 212A |
36288 |
BUSHING Price: $1.22 |
| 222 |
651081 |
SCREW Price: $2.89 |
| 223 |
650378 |
SCREW Price: $1.25 |
| 224 |
27915A |
GASKET Price: $3.95 |
| 239 |
27272A |
GASKET Price: $1.18 |
| 242 |
33267 |
BRACKET Price: $5.21 |
| 245 |
33268 |
AIR CLEANER Price: $10.95 |
| 250 |
33269A |
CLEANER COV Price: $14.00 |
| 251 |
37444A |
NUT Price: $3.76 |
| 260 |
36468A |
BLOWER HSG Price: $67.77 |
| 261 |
650788 |
SCREW Price: $1.25 |
| 262 |
651084 |
SCREW Price: $1.26 |
| 264A |
650802 |
SCREW Price: $1.25 |
| 265 |
33272D |
COVER Price: $5.21 |
| 276A |
31588 |
LOCK PLATE Price: $2.00 |
| 277 |
650729 |
SCREW Price: $1.25 |
| 281 |
33013 |
COVER Price: $2.62 |
| 285 |
35985C |
STARTER CUP Price: $9.67 |
| 298 |
650665 |
SCREW Price: $1.25 |
| 300 |
34186A |
FUEL TANK Price: $38.24 |
| 301 |
37845 |
FUEL CAP Price: $6.33 |
| 311 |
35941 |
DIPSTICK Price: $3.89 |
| 312 |
29673 |
GASKET Price: $1.26 |
| 325 |
29443 |
CLIP Price: $1.26 |
| 335 |
37655 |
CARB COVER Price: $29.18 |
| 336 |
650765 |
SCREW Price: $0.87 |
| 338 |
28942 |
SCREW Price: $0.88 |
| 340 |
34154 |
TANK BRACKET Price: $9.22 |
| 341 |
34155 |
TANK BRACKET Price: $8.35 |
| 364 |
37659 |
BRACKET Price: $6.96 |
| 365 |
650767 |
SCREW Price: $0.87 |
| 370 |
35274 |
DECAL Price: $1.00 |
| 370 |
36695 |
DECAL Price: $1.00 |
| 380 |
640260B |
CARBURETOR This part replaces 640260A. Price: $78.00 |
| 390 |
590788 |
STARTER Price: $47.08 |
| 400 |
36450C |
GASKET SET Price: $15.14 |
| 420 |
730225A |
OIL SAE 30 Price: $3.38 |
