| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT This part replaces 351-76. Price: $273.15 |
| 1 |
463282 |

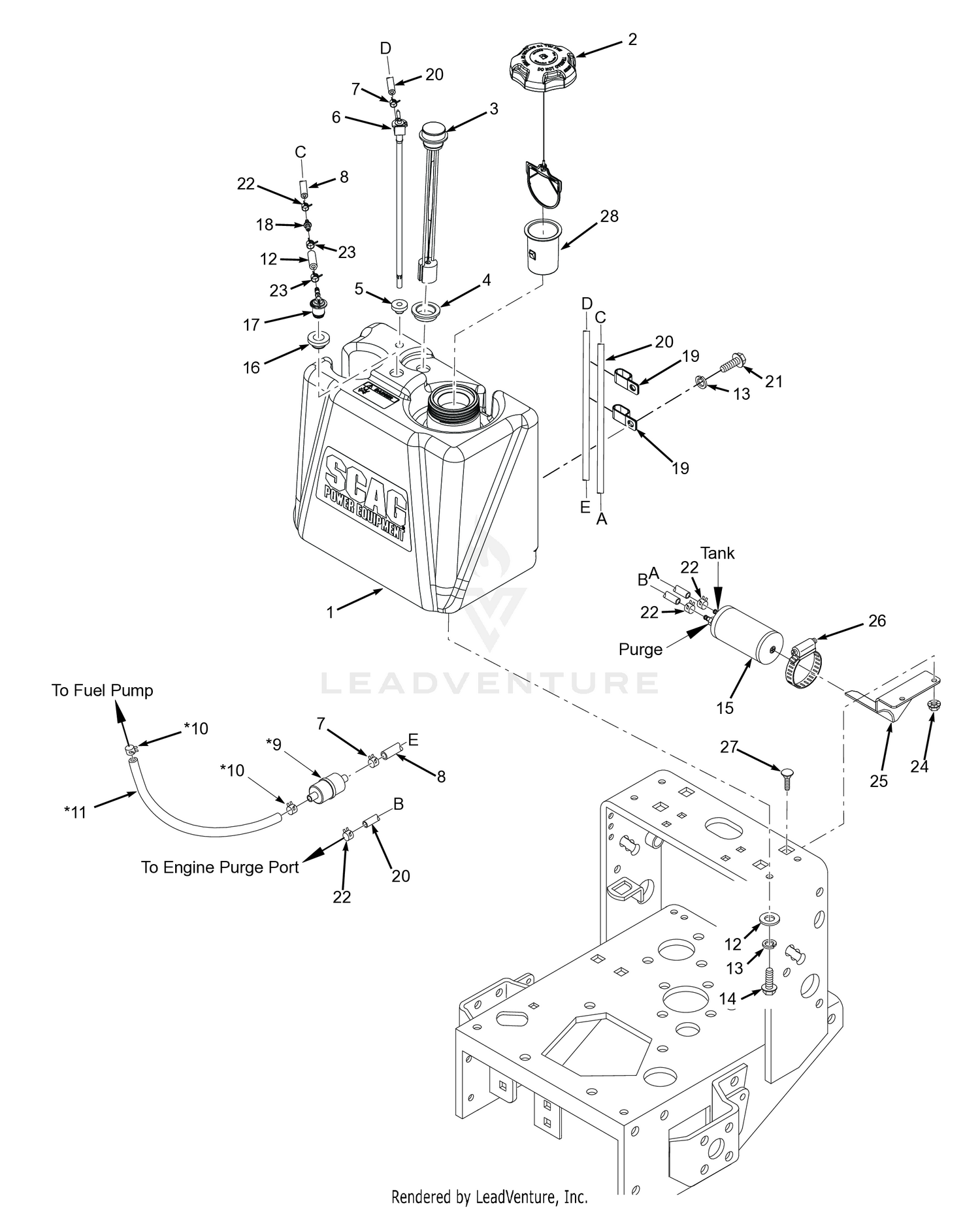

Fuel Tank Assembly (incl. #2, 3, 5, 6, 17, 18) Price: Call Us |
| 2 |
484286 |
Fuel Cap w/ Tether (E.P.A.) Price: Call Us |
| 2 |
92-6534 |
ORDER COMPLETE SEAT This part replaces 351-77. Price: Call Us |
| 3 |
351-78 |
EDGING Price: $60.98 |
| 3 |
484243 |
Fuel Gauge Assembly Price: Call Us |
| 4 |
351-75 |
BACKREST Price: $228.25 |
| 4 |
484242 |
Grommet, Fuel Gauge Price: Call Us |
| 5 |
351-79 |
CLIP Price: $5.69 |
| 5 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 6 |
351-80 |
CLIP Price: $8.87 |
| 6 |
486181 |
Valve, Fuel Shutoff w/Screen Price: Call Us |
| 7 |
3217-6 |
NUT-HEX Price: $1.19 |
| 7 |
48059-01 |
Clamp, Fuel Hose 1/4" Hose I.D. Price: Call Us |
| 8 |
46-9120-03 |
BAR-SEAT MOUNT This part replaces 46-9120. Price: $32.31 |
| 8 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) Price: Call Us |
| 9 |
27-5240 |
BOLT-SHOULDER Price: $17.78 |
| 10 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
484347 |
Hose, 1/4" Vapor Recovery (order by inch) Price: Call Us |
| 12 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 13 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 13 |
46-9110-03 |
SPRING-SEAT This part replaces 46-9110. Price: $119.57 |
| 14 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 14 |
27-4570 |
KNOB-SEAT Price: $25.38 |
| 15 |
36-8020 |
WASHER Price: $1.65 |
| 15 |
484287 |
Carbon Canister - SVR-36A / SVR-48V Price: Call Us |
| 16 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 16 |
484285 |
Grommet, Viton, Price: Call Us |
| 17 |
484333 |
Remote Vent, No Valve Price: Call Us |
| 18 |
484343-01 |
Mender, 1/4 x 3/16 w/0.02 Hole Price: Call Us |
| 19 |
48030-11 |
Clamp, Double Cable 5/8" ID. Price: Call Us |
| 20 |
484345 |
Hose, Vapor Recovery 3/16" Price: Call Us |
| 21 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 22 |
48059-05 |
Clamp, Vapor Recovery Hose 3/16" Price: Call Us |
| 23 |
48059-02 |
CLAMP, FUEL HOSE(KAWASAKI ONLY) Price: Call Us |
| 24 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 25 |
452176 |
Bracket, Canister Mounting Price: Call Us |
| 26 |
48136-17 |
Clamp, 3-1/2" Max. Dia. Price: Call Us |
| 27 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
