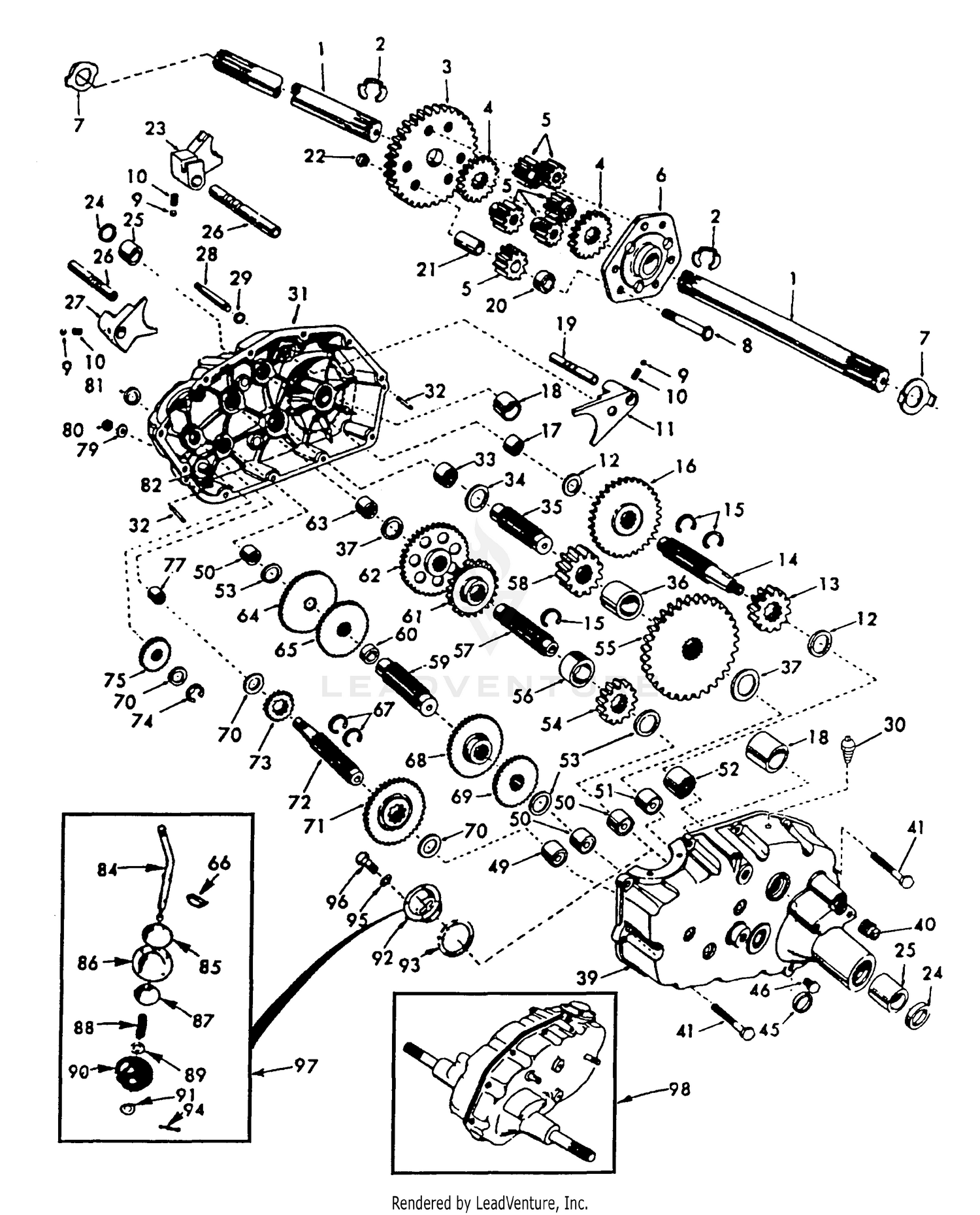

| Ref | Part Number | Description |
|---|
| 1 |
19-9520 |
DISCONTINUED X-REF Price: Call Us |
| 1 |
4197R |
Axle Shaft Price: Call Us |
| 2 |
12000034 |
Retaining Ring Price: Call Us |
| 2 |
321-3 |
SCREW-HH Price: $0.28 |
| 3 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 3 |
4199R |
Final Drive Gear Price: Call Us |
| 4 |
256-239 |
BEARING-PILLOW BLOCK Price: $4.61 |
| 4 |
4216R |
Differential Gear Price: Call Us |
| 5 |
19-9560 |
SPRING SPACER Price: $7.53 |
| 5 |
4215R |
Differential Pinion Price: Call Us |
| 6 |
19-9540 |
LH SPRING Price: $19.44 |
| 6 |
4217R |
Differential Carrier Price: Call Us |
| 7 |
19-9500 |
DISCONTINUED Price: Call Us |
| 7 |
6256H |
Axle Thrust Washer Price: Call Us |
| 8 |
74020652 |
Bolt, Hex Head 3/8-24 x 3-1/4 (1" Thread Length) Price: Call Us |
| 9 |
7392M |
Steel Ball (AYP part number) Price: Call Us |
| 10 |
137261 |
Spring Shift Fork Detent (AYP part number) Price: Call Us |
| 11 |
4985R |
Shift Fork, High-Low Range Price: Call Us |
| 12 |
6266H |
Thrust Bearing Race Price: Call Us |
| 14 |
137125 |
Shaft, Brake Price: Call Us |
| 15 |
6276H |
Snap Ring, Crescent Type Price: Call Us |
| 16 |
633A63 |
High-Low Range Gears Price: Call Us |
| 17 |
8118M |
Needle Bearing Price: Call Us |
| 18 |
8740H1 |
Sintered Iron Bearing (AYP part number) Price: Call Us |
| 19 |
122238X |
Shift Fork Shaft, High-Low Range Price: Call Us |
| 20 |
4218R |
Differential Pinion Spacer Price: Call Us |
| 21 |
6252H1 |
Differential Pinion Bushing Price: Call Us |
| 22 |
7810H |
Gripco Centerlock Nut 3/8-24 Price: Call Us |
| 23 |
6262H |
Shift Fork, R.H. Price: Call Us |
| 24 |
7393R |
Oil Seal Price: Call Us |
| 25 |
992R1 |
Sintered Iron Bearing (AYP part number) Price: Call Us |
| 26 |
139111 |
Shift Fork Shaft Price: Call Us |
| 27 |
4986R |
Shift Fork, L.H. Price: Call Us |
| 28 |
122254X |
Shift Shaft, High-Low Range Price: Call Us |
| 29 |
6269H |
Oil Seal Price: Call Us |
| 30 |
5855H |
Pressure Relief Valve Price: Call Us |
| 32 |
6277H |
Dowel Pin Price: Call Us |
| 33 |
4225R |
Needle Bearing Price: Call Us |
| 34 |
7396H |
Thrust Bearing Race Price: Call Us |
| 37 |
7395H |
Thrust Bearing Race Price: Call Us |
| 40 |
13320400 |
Pipe Plug 1/2-14 N.P.T. Price: Call Us |
| 41 |
17580520 |
Bolt, Hex 5/16-18 UNC x 1-1/4 Price: Call Us |
| 45 |
6271H |
Oil Seal Price: Call Us |
| 46 |
13060200 |
Pipe Plug 1/4-18 N.P.T. (AYP part number) Price: Call Us |
| 49 |
4895H |
Needle Bearing Price: Call Us |
| 50 |
4222R |
Needle Bearing Price: Call Us |
| 51 |
1529R |
Needle Bearing Price: Call Us |
| 52 |
8119M |
Needle Bearing Price: Call Us |
| 53 |
4220R |
Thrust Bearing Race Price: Call Us |
| 58 |
4214R |
Final Drive Pinion Price: Call Us |
| 63 |
7398H |
Needle Bearing Price: Call Us |
| 64 |
4203R |
Low Speed Gear and 2nd Reduction Pinion Cluster Price: Call Us |
| 65 |
4204R |
Reverse Gear Price: Call Us |
| 66 |
2898J |
Key, Hi-Pro 1/8 x 17/32 Price: Call Us |
| 67 |
12000033 |
Klip Ring Price: Call Us |
| 68 |
4205R |
Intermediate Speed Gear Price: Call Us |
| 69 |
4206R |
High Speed Gear Price: Call Us |
| 70 |
1370H |
Thrust Bearing Race Price: Call Us |
| 71 |
633A69 |
Intermediate and High Speed Cluster Pinions Price: Call Us |
| 72 |
139120 |
Input Shaft (AYP part number) Price: Call Us |
| 73 |
4201R |
Low Speed Pinion Price: Call Us |
| 74 |
12000008 |
E-Ring Price: Call Us |
| 75 |
1153R |
Reverse Idler Gear Price: Call Us |
| 77 |
6803J |
Needle Bearing Price: Call Us |
| 79 |
1167R |
Sealing Washer Price: Call Us |
| 80 |
73360700 |
Nut, Hex, Jam 7/16-20 Price: Call Us |
| 81 |
6270H |
Oil Seal Price: Call Us |
| 82 |
136984 |
Reverse Idler Shaft Price: Call Us |
| 84 |
5384J |
Gearshift Lever, Bent Price: Call Us |
| 85 |
2978J |
Gearshift Cap Price: Call Us |
| 86 |
633A85 |
Gearshift Ball Cover and Pin Price: Call Us |
| 87 |
8739H1 |
Shift Lever Guide Ball, Keyed Price: Call Us |
| 88 |
4924H |
Spring Price: Call Us |
| 89 |
19151516 |
Washer 15/32 x 15/16 x 16 Gauge Price: Call Us |
| 90 |
110542X |
Shift Mechanism Seal Price: Call Us |
| 91 |
19181511 |
Washer 9/16 x 15/16 x 12 Gauge Price: Call Us |
| 92 |
75J |
Gearshift Gate and Reinforcement Price: Call Us |
| 93 |
6274H |
Shift Ball Cover Gasket Price: Call Us |
| 94 |
76020412 |
Cotter Pin 1/8 x 3/4 Price: Call Us |
| 95 |
10040500 |
Washer, Lock 5/16 Price: Call Us |
| 96 |
74760514 |
Bolt, Hex Head 5/16-18 UNC x 7/8 Price: Call Us |
| 97 |
633A109 |
Gearshift Lever Assembly Price: Call Us |
