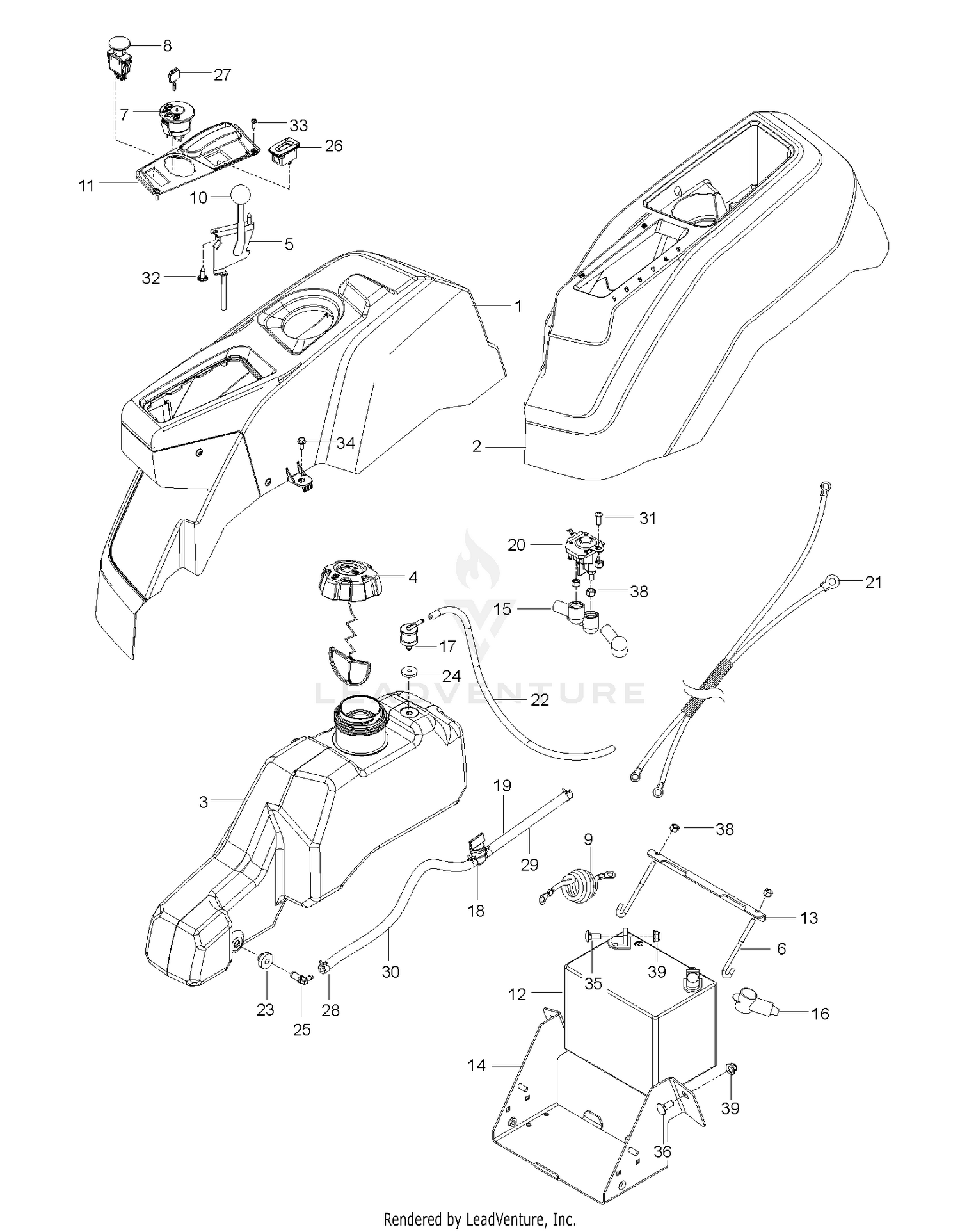

| Ref | Part Number | Description |
|---|
| 1 |
120-0244 |
SEAT PLATE ASM Price: $411.04 |
| 2 |
237-164 |
GROMMET Price: $16.34 |
| 2 |
586621202 |
CONSOLE ASM This part replaces 586621201. Price: $79.99 |
| 3 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 4 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 5 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 5 |
585974906 |
THROTTLE CABLE 37" This part replaces 585974902. Price: $32.99 |
| 6 |
117-3067 |
LATCH-SEAT Price: $14.14 |
| 6 |
588839401 |
HOOK.J.BATTERY Price: $2.99 |
| 7 |
104-4821 |
SPRING-TORSION Price: $6.26 |
| 7 |
532175566 |
IGNITION SWITCH This part replaces 539107541. Price: $22.99 |
| 8 |
283-82 |
PIN-CLEVIS Price: $3.94 |
| 8 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 582107602. Price: $24.99 |
| 9 |
104-7201 |
NUT-HF Price: $0.69 |
| 9 |
586108201 |
CABLE BATTERY POS RZ Price: $8.99 |
| 10 |
119-1415 |
PIN-COTTER, LOCKING Price: $0.22 |
| 10 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 11 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 11 |
585522703 |
CONTROL.PANEL.RZ.REFRESH.RH Price: $9.99 |
| 12 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 12 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 13 |
107-1865 |
R-Clamp Price: $6.86 |
| 13 |
510030001 |
BRACKET, BATTERY MOUNT This part replaces 510030003. Price: $44.99 |
| 14 |
3231-40 |
BOLT-CARR, SHORT NECK Price: $1.27 |
| 14 |
582609602 |
BOX.PNT.BATTERY.RZ.EDIP Price: $32.99 |
| 15 |
42862 |
BLOCK-TERMINAL, GROUND Price: $19.58 |
| 15 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 16 |
42863 |
STRIP-JUMPER Price: $2.90 |
| 16 |
539102759 |
INSULATOR Price: $3.99 |
| 17 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 17 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 18 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 18 |
539916325 |
FUEL VALVE Price: $9.99 |
| 19 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 19 |
586123904 |
FUEL.HOSE.SHUT.OFF.ASM.10".3" Price: $11.99 |
| 20 |
117-3065-03 |
PLATE-SEAT Price: $92.88 |
| 20 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 21 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 21 |
587198601 |
HARNESS.BTTRY.CABLE.RZ.REFRESH Price: $22.99 |
| 22 |
587044518 |
HOSE.3/16".VAPOR.LINE.18"LGTH Price: $2.99 |
| 22 |
83-1050 |
SPACER Price: $3.26 |
| 23 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 23 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 24 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 24 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 532437492. Price: $3.99 |
| 25 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 25 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 26 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 586161801. Price: $19.99 |
| 27 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 28 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 29 |
587044810 |
HOSE.1/4".LOW.PERM.FUEL.LN.10" Price: $9.99 |
| 30 |
587044818 |
HOSE 1/4" LOW PERMEATION FUEL Price: $8.99 |
| 31 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 32 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 33 |
545227101 |
SCREW 6-19X.437 Price: $2.99 |
| 34 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 35 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 36 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 37 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 39 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
