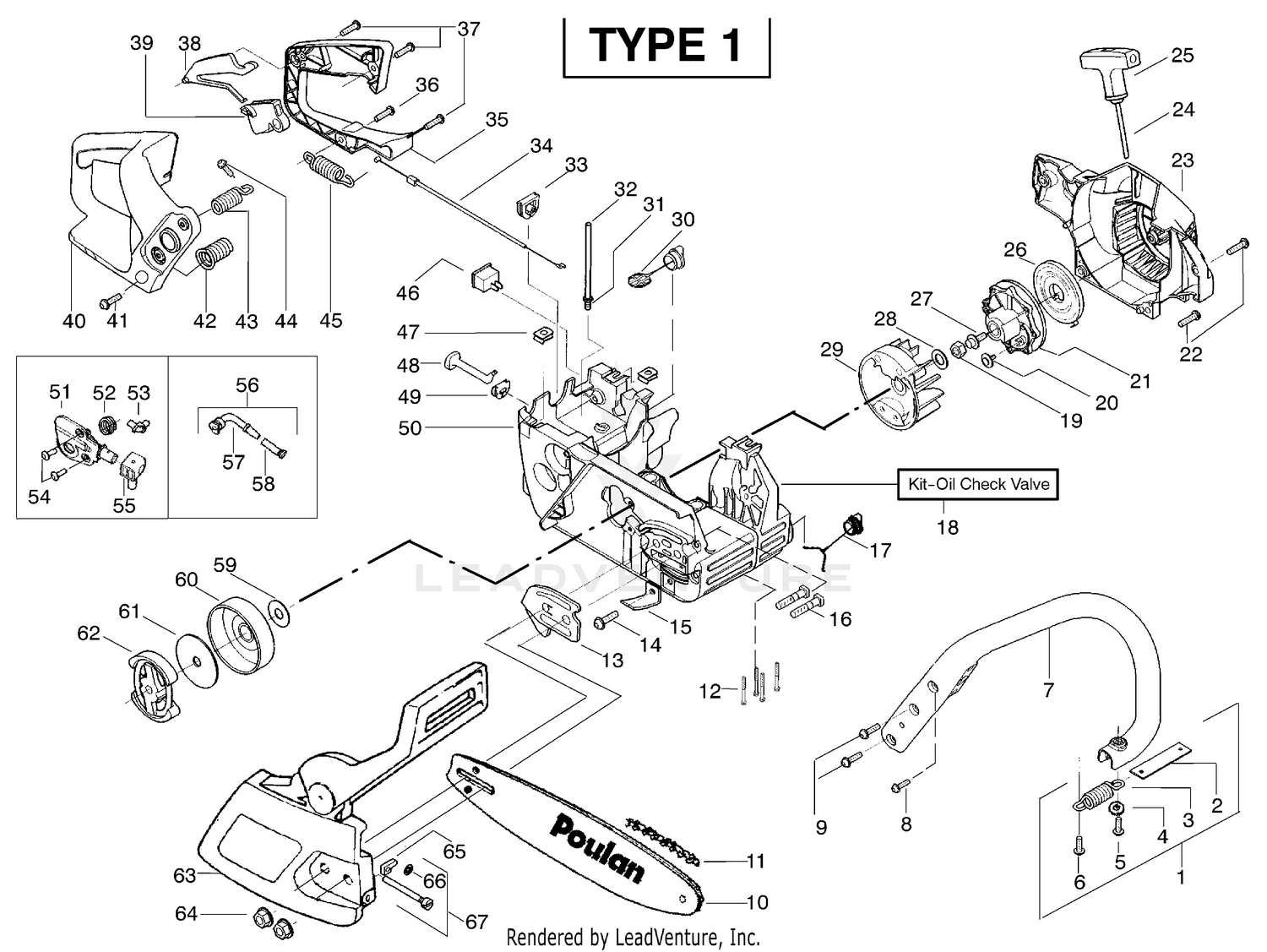

| Ref | Part Number | Description |
|---|
| 1 |
545006036 |
SPRING This part replaces 530047963. Price: $5.99 |
| 1 |
99-8970 |
KEY-LATCH, HOOD Price: $15.13 |
| 2 |
98-9321 |
RING-KEY Price: $1.80 |
| 3 |
32128-20 |
NUT-HF Price: $0.99 |
| 3 |
545006036 |
SPRING This part replaces 530042082. Price: $5.99 |
| 4 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 4 |
98-5398 |
LATCH Price: $32.53 |
| 5 |
105-4531 |
COVER-LATCH Price: $32.23 |
| 5 |
530016018 |
Screw Price: $1.99 |
| 6 |
104-3591-03 |
BRACKET-LATCH, HOOD Price: $50.28 |
| 6 |
530015843 |
Screw Price: $1.99 |
| 7 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 7 |
545048001 |
HANDLE This part replaces 530047583. Price: $27.99 |
| 8 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 8 |
530015940 |
Screw Price: $1.99 |
| 9 |
117-2766 |
DECAL-WARNING, CE Price: $19.47 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
952044418 |
Bar-18" Price: $30.95 |
| 11 |
581562301 |
P/PP CHN 18" 62DL 3/8 .050 This part replaces 952051338. Price: $19.99 |
| 12 |
530016132 |
Screw Price: $1.99 |
| 13 |
530038238 |
Plate-Bar Mounting Price: $1.99 |
| 14 |
530015814 |
Screw Price: $1.99 |
| 15 |
530029850 |
Chain Catcher Price: $1.99 |
| 16 |
530016133 |
Bolt-Bar Price: $1.99 |
| 17 |
530057236 |
OIL TANK CAP This part replaces 530010846. Price: $5.99 |
| 18 |
530071666 |
Kit-Oil Check Valve Price: $7.99 |
| 19 |
530016134 |
Nut- Flywheel Price: $1.99 |
| 20 |
530016080 |
Screw Price: $1.99 |
| 21 |
545034301 |
STARTER PULLEY This part replaces 530037817. Price: $8.99 |
| 22 |
530015892 |
Screw Price: $1.99 |
| 23 |
530057444 |
Fan Housing Price: $17.99 |
| 24 |
530069232 |
Kit - Rope Price: $3.99 |
| 25 |
530056402 |
Handle-Starter This part replaces 530037485. Price: $2.99 |
| 26 |
545008015 |
SPRING STARTER This part replaces 530027531. Price: $2.99 |
| 27 |
530015920 |
Screw Price: $1.99 |
| 28 |
530015127 |
Washer- Flywheel Price: $1.99 |
| 29 |
530047534 |
FLYWHEEL ASSY This part replaces 530039187. Price: $22.99 |
| 30 |
580940901 |
FUEL CAP ASSY This part replaces 530047192. Price: $3.99 |
| 31 |
530023877 |
Fitting- Fuel Line Price: $1.99 |
| 33 |
530047631 |
Grommet-Cable Price: $1.99 |
| 34 |
530047602 |
Cable-Throttle Price: $3.99 |
| 35 |
530047581 |
Cover-Rear Handle Price: $3.99 |
| 36 |
530015886 |
Screw Price: $1.99 |
| 37 |
530015906 |
Screw Price: $1.99 |
| 38 |
530036098 |
Throttle Lockout Price: $1.99 |
| 39 |
530036097 |
Trigger-Throttle Price: $1.99 |
| 40 |
530047582 |
Handle - Rear Price: $11.99 |
| 41 |
530015814 |
Screw Price: $1.99 |
| 42 |
545006036 |
SPRING This part replaces 530053274. Price: $5.99 |
| 44 |
530015875 |
Screw Price: $1.99 |
| 45 |
545006036 |
SPRING This part replaces 530042082. Price: $5.99 |
| 46 |
530069572 |
Kit-Switch Price: $4.99 |
| 47 |
530015922 |
Nut- "U"-Type Price: $1.99 |
| 48 |
530047605 |
Knob-Choke Price: $1.99 |
| 49 |
530049005 |
Grommet-Knob Price: $1.99 |
| 52 |
530037820 |
Gear-Worm Spring Price: $1.99 |
| 53 |
530049477 |
Elbow-Oil Pickup Price: $1.99 |
| 54 |
545227101 |
SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 55 |
530019206 |
Seal Block Price: $1.99 |
| 57 |
530038373 |
Pick-up Oiler Price: $1.99 |
| 58 |
530056533 |
Oil Filter Price: $2.99 |
| 59 |
530015907 |
Washer-Thrust Price: $1.99 |
| 60 |
530047061 |
Assy.-Clutch Drum w/bearing Price: $11.99 |
| 61 |
530015611 |
Washer-Clutch Price: $1.99 |
| 62 |
530014949 |
Assy. Clutch Price: $7.99 |
| 63 |
530057447 |
Assy-Chain Brake Price: $21.28 |
| 64 |
530015917 |
Nut-Bar Mounting Price: $0.99 |
| 65 |
530015826 |
Pin-Bar Adjust Price: $1.99 |
| 66 |
530038593 |
Retainer-Bar Adjust Price: $0.99 |
