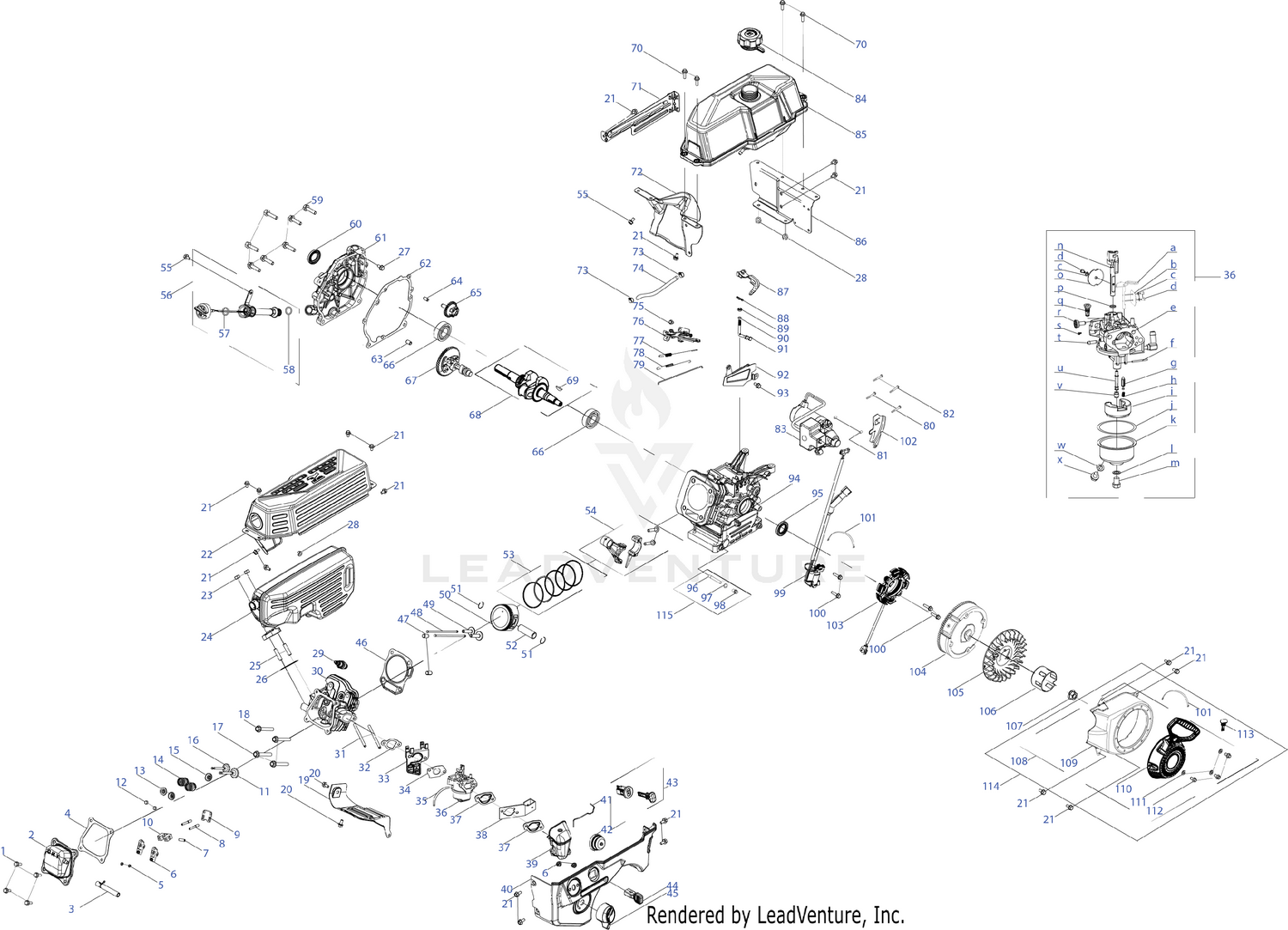

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| b |
None |
Choke Plate |
| c |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| d |
None |
Screw, M3×6 |
| e |
None |
Carburetor Body |
| f |
711-06043A |
FLOAT PIN This part replaces 711P06043. Price: $0.56 |
| g |
None |
NEEDLE VALVE |
| h |
732P05251A |
NEEDLE VALVE SPRING This part replaces 732P05021. Price: $1.70 |
| i |
731P09132A |
FLOAT Price: $4.45 |
| j |
951-11589 |
FUEL BOWL O-RING Price: $6.04 |
| k |
908-05000 |
FLOAT BOWL Not Available Price: |
| l |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| m |
710-04945 |
BOLT M8-1 x 10 Price: $3.66 |
| n |
None |
Throttle Shaft |
| o |
None |
Throttle Plate |
| p |
None |
Gasket |
| q |
None |
Idle Jet |
| r |
None |
Idle Adjusting Screw |
| s |
None |
Mixture Screw |
| t |
937-05005 |
PRIMER LINE Price: $5.25 |
| u |
None |
Nozzle Tube |
| v |
None |
Main Jet |
| w |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| x |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| 1 |
710-04968 |
BOLT M6 x 16 Price: $5.77 |
| 2 |
908-05028 |
VALVE COVER Price: $29.26 |
| 3 |
951-15045 |
BREATHER HOSE Price: $5.68 |
| 4 |
921-04673 |
VALVE COVER GASKET Price: $7.81 |
| 5 |
712-05015 |
HEX NUT Price: $5.78 |
| 6 |
951-15533 |
ROCKER ARM ASSEMBLY Price: $11.42 |
| 7 |
911-06214 |
ROCKER ARM SHAFT Price: $4.34 |
| 8 |
910-06092 |
PIVOT BOLT Price: $5.38 |
| 9 |
908-05066 |
PUSH ROD GUIDE Price: $7.04 |
| 10 |
951-14373 |
ROCKER ARM PIVOT BLOCK Price: $20.65 |
| 11 |
751P14099A |
INTAKE VALVE This part replaces 951-14099. Price: $3.53 |
| 12 |
751P12002A |
EXHAUST VALVE ADJUSTER This part replaces 951-12002. Price: $2.36 |
| 13 |
951-12003 |
EXHAUST VALVE SPRING RETAINER Price: $3.53 |
| 14 |
751P12004A |
VALVE SPRING This part replaces 951-12004. Price: $1.74 |
| 15 |
951-11894 |
INTAKE VALVE SEAL Price: $9.48 |
| 16 |
751P14100A |
EXHAUST VALVE This part replaces 951-14100. Price: $3.43 |
| 17 |
710-06065 |
SCREW M10-1.25 x 65 x GR10.9 Price: $5.53 |
| 18 |
710-06291 |
BOLT M10-1.25 x 70 Price: $4.31 |
| 19 |
951-11113 |
AIR SHIELD Price: $8.11 |
| 20 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 21 |
910-06277 |
BOLT-M6 x 12 Price: $3.86 |
| 22 |
908-05112A |
MUFFLER GUARD Price: $74.15 |
| 23 |
712-04214 |
NUT Price: $3.86 |
| 24 |
951-05263 |
MUFFLER Price: $152.27 |
| 25 |
710-05001 |
STUD M8-1.25 x 36 Price: $3.66 |
| 26 |
751P11289A |
MUFFLER GASKET This part replaces 951-11289. Price: $1.96 |
| 27 |
710-05192 |
SCREW M6-1 x 20 CL5.8 Price: $5.38 |
| 28 |
712-05015 |
HEX NUT Price: $5.78 |
| 29 |
951-10292A |
SPARK PLUG (F6RTC/RN11YC/BPR6ES) This part replaces 951-10292. Price: $6.35 |
| 30 |
919-05073 |
CYLINDER HEAD (Bare) Price: $87.81 |
| 31 |
710-05093 |
STUD M6 x 92 Price: $3.65 |
| 32 |
751P11567B |
CARBURETOR INSULATOR GASKET This part replaces 951-11567. Price: $1.73 |
| 33 |
751P11568A |
INSULATOR This part replaces 951-11568. Price: $3.05 |
| 34 |
751P12005B |
CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89 |
| 35 |
951-15535 |
PRIMER HOSE Price: $6.88 |
| 36 |
951-05118B |
Carburetor This part replaces 651-05118B. Price: $87.78 |
| 37 |
751P11897B |
CARBURETOR GASKET This part replaces 951-11897. Price: $1.61 |
| 38 |
951-14869 |
CHOKE CONTROL Price: $6.20 |
| 39 |
951-14870 |
HEATER BOX Price: $14.87 |
| 40 |
951-14952 |
CONTROL PANEL Price: $25.46 |
| 41 |
951-10640 |
PUSH ROD Price: $8.93 |
| 42 |
951-10639B |
PRIMER This part replaces 951-10639A. Price: $13.84 |
| 43 |
951-15022A |
ENGINE KEY SWITCH ASSEMBLY This part replaces 951-15022. Price: $9.61 |
| 44 |
951-11224 |
THROTTLE CONTROL KNOB Price: $6.89 |
| 45 |
951-14838 |
CHOKE LEVER Price: $6.30 |
| 46 |
921-04674 |
CYLINDER HEAD GASKET Price: $11.64 |
| 47 |
None |
PIN, 12x16 |
| 48 |
951-14370 |
PUSH ROD (SINGLE) Price: $6.50 |
| 49 |
951-14470 |
TAPPET Price: $9.35 |
| 50 |
919-05074 |
PISTON Price: $33.37 |
| 51 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 52 |
951-11633 |
PISTON PIN Price: $6.66 |
| 53 |
951-14471A |
PISTON RING SET 75MM This part replaces 951-14471. Price: $20.34 |
| 54 |
751P11573A |
CONNECTING ROD This part replaces 951-11573. Price: $8.87 |
| 55 |
910-06278 |
BOLT-M6 x 16 Price: $3.86 |
| 56 |
931-05255 |
DIPSTICK ASSEMBLY Price: $20.07 |
| 57 |
921-04663A |
O-RING This part replaces 921-04663. Price: $5.05 |
| 58 |
951-11577 |
O-RING 15.8 x 2.5 Price: $3.53 |
| 59 |
710-04932 |
BOLT M8-1.25 x 32 GR5.8 Price: $3.66 |
| 60 |
751P11368A |
OIL SEAL This part replaces 951-11368. Price: $2.70 |
| 61 |
951-14875 |
CRANKCASE COVER Price: $73.89 |
| 62 |
751P11371B |
CRANKCASE GASKET This part replaces 951-11371A. Price: $3.07 |
| 63 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 64 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 65 |
751P11576A |
GOVERNOR GEAR This part replaces 951-11576. Price: $3.00 |
| 66 |
951-15055 |
BALL BEARING Price: $15.43 |
| 67 |
951-05058 |
CAMSHAFT Price: $59.12 |
| 68 |
951-05059 |
CRANKSHAFT ASSEMBLY Price: $189.09 |
| 69 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 70 |
951-14885 |
BOLT-M6 x 22 Price: $3.86 |
| 71 |
951-14997A |
FUEL TANK INSULATOR Price: $10.02 |
| 72 |
951-14872 |
FRONT FUEL TANK BRACKET Price: $30.70 |
| 73 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 74 |
951-15536 |
FUEL LINE Price: $8.61 |
| 75 |
710-05103 |
BOLT M6-1 x 12 GR8.8 Price: $3.52 |
| 76 |
951-14881 |
GOVERNOR GEAR BRACKET Price: $20.39 |
| 77 |
751P19229 |
GOVERNOR SPRING This part replaces 751-19229. Price: $6.87 |
| 78 |
751P10664A |
THROTTLE SPRING This part replaces 951-10664. Price: $2.01 |
| 79 |
751P10665A |
THROTTLE LINKAGE This part replaces 951-10665. Price: $1.53 |
| 80 |
710-05182 |
BOLT M6-1 x 32 GR8.8 Price: $3.61 |
| 81 |
715-04088A |
DOWEL PIN This part replaces 715-04088. Price: $2.97 |
| 82 |
910-06279 |
BOLT-M4 x 55 Price: $3.59 |
| 83 |
951-10645B |
ELECTRIC STARTER Price: $291.30 |
| 84 |
951-14884 |
FUEL CAP Price: $23.29 |
| 85 |
951-14883 |
FUEL TANK Price: $85.04 |
| 86 |
951-14880 |
FUEL TANK INSULATOR Price: $13.72 |
| 87 |
951-14089 |
GOVERNOR LEVER Price: $6.67 |
| 88 |
714-04078 |
COTTER PIN Price: $3.66 |
| 89 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 90 |
736-04461 |
O-RING Price: $3.50 |
| 91 |
951-14053 |
GOVERNOR SHAFT Price: $13.94 |
| 92 |
951-11110 |
AIR FLOW SHIELD Price: $3.88 |
| 93 |
710-04914 |
BOLT M6-1 x 10 GR8.8 Price: $3.71 |
| 94 |
919-05075 |
CRANKCASE Price: $187.05 |
| 95 |
751P11370A |
OIL SEAL This part replaces 951-11370. Price: $2.23 |
| 96 |
951-11350A |
OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05 |
| 97 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 98 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 99 |
951-15275 |
IGNITION MODULE Price: $94.95 |
| 100 |
710-04919 |
BOLT M6-1 x 25 GR8.8 Price: $3.86 |
| 101 |
725-06031 |
CABLE TIE - 3 x 150 Price: $2.04 |
| 102 |
751P16487 |
LOWER HOUSING This part replaces 751-16487. Price: $2.40 |
| 103 |
951-15806 |
IGNITION MODULE Price: $76.95 |
| 104 |
951-15540A |
FLYWHEEL Price: $161.84 |
| 105 |
951-15025 |
COOLING FAN Price: $21.69 |
| 106 |
951-14887 |
STARTER CUP Price: $12.71 |
| 107 |
712-04287A |
FLYWHEEL NUT M14-1.5 This part replaces 712-04287. Price: $5.33 |
| 108 |
951-05424 |
RECOIL HOUSING ASSEMBLY Price: $56.30 |
| 109 |
951-15537 |
BLOWER HOUSING Price: $34.93 |
| 110 |
951-15538A |
RECOIL STARTER This part replaces 951-15538. Price: $62.29 |
| 111 |
736-04455B |
FLAT WASHER This part replaces 736-04455. Price: $5.94 |
| 112 |
710-06280 |
HEX FLANGE BOLT M6-1 x 10 GR8 Price: $3.20 |
| 113 |
951-10630 |
IGNITION KEY Price: $6.07 |
| 114 |
None |
RECOIL STARTER |
| 115 |
None |
OIL DRAIN ASSEMBLY |
