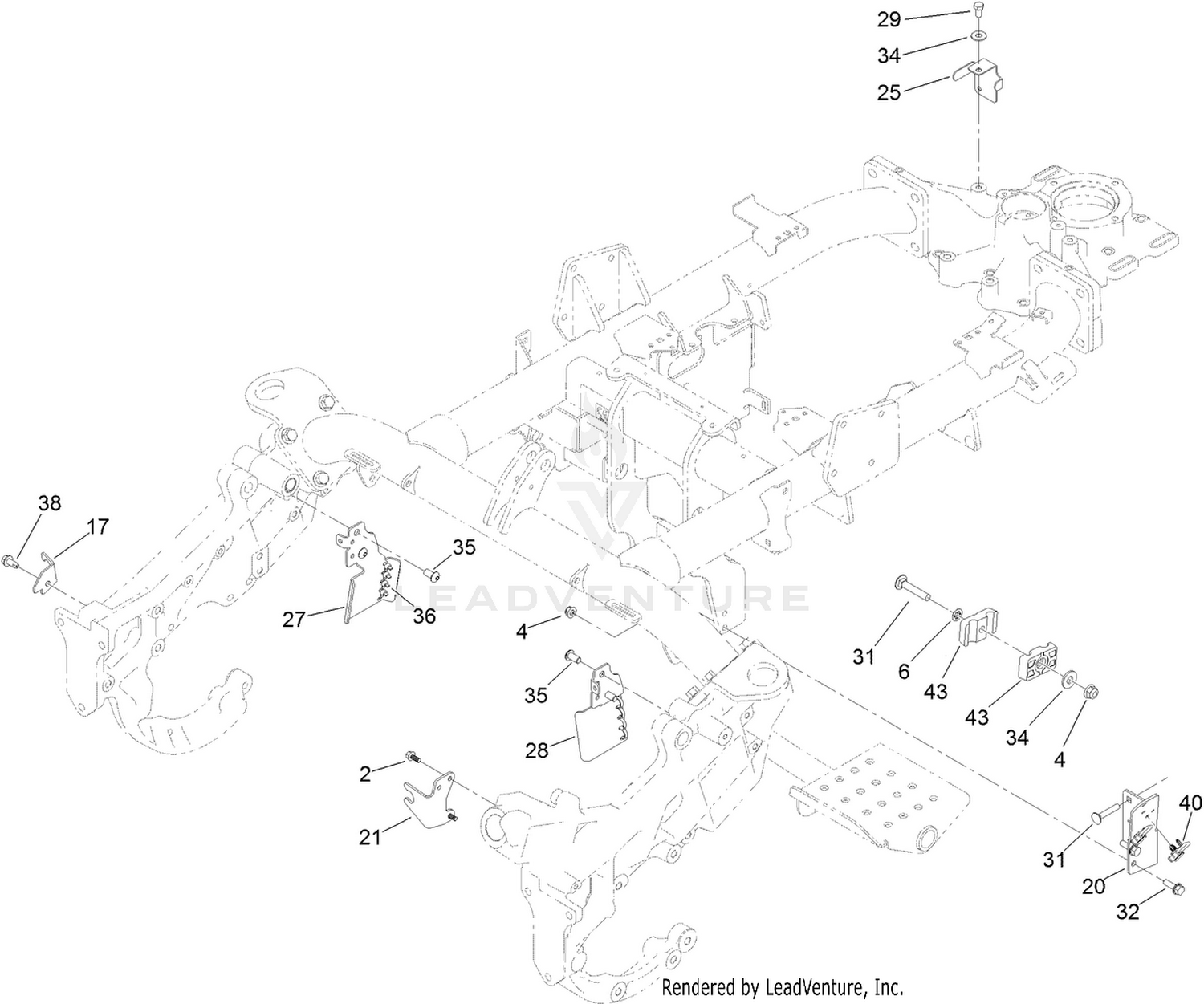

Harness Bracket Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 99-6810 | SCREW-HHF Price: $3.09 |
| 4 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 109-5667 | RING-RETAINING, BOLT Price: $4.07 |
| 17 | 139-8409 | BRKT-HOSE Price: $10.31 |
| 20 | 137-8146-03 | BRACKET-HOSE, REAR Price: $23.53 |
| 21 | 136-2697 | BRACKET-HOSE Price: $12.57 |
| 25 | 137-7859 | BRACKET-3WD Price: $14.65 |
| 27 | 137-7905-01 | BRACKET-HARNESS, RH Price: $35.23 |
| 28 | 137-7906-01 | BRACKET-HARNESS, LH Price: $35.23 |
| 29 | 3210-2 | SCREW-HH Price: $0.41 |
| 31 | 3230-5 | BOLT-CAR Price: $0.54 |
| 32 | 3234-29 | SCREW-HHF Price: $1.84 |
| 34 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 35 | 3274-80 | SCREW-HH Price: $1.76 |
| 36 | 3290-378 | TIE-CABLE Price: $0.79 |
| 38 | 32104-32 | SCREW-HWH Price: $1.99 |
| 40 | 32180-103 | CLIP-CONNECTOR Price: $5.02 |
