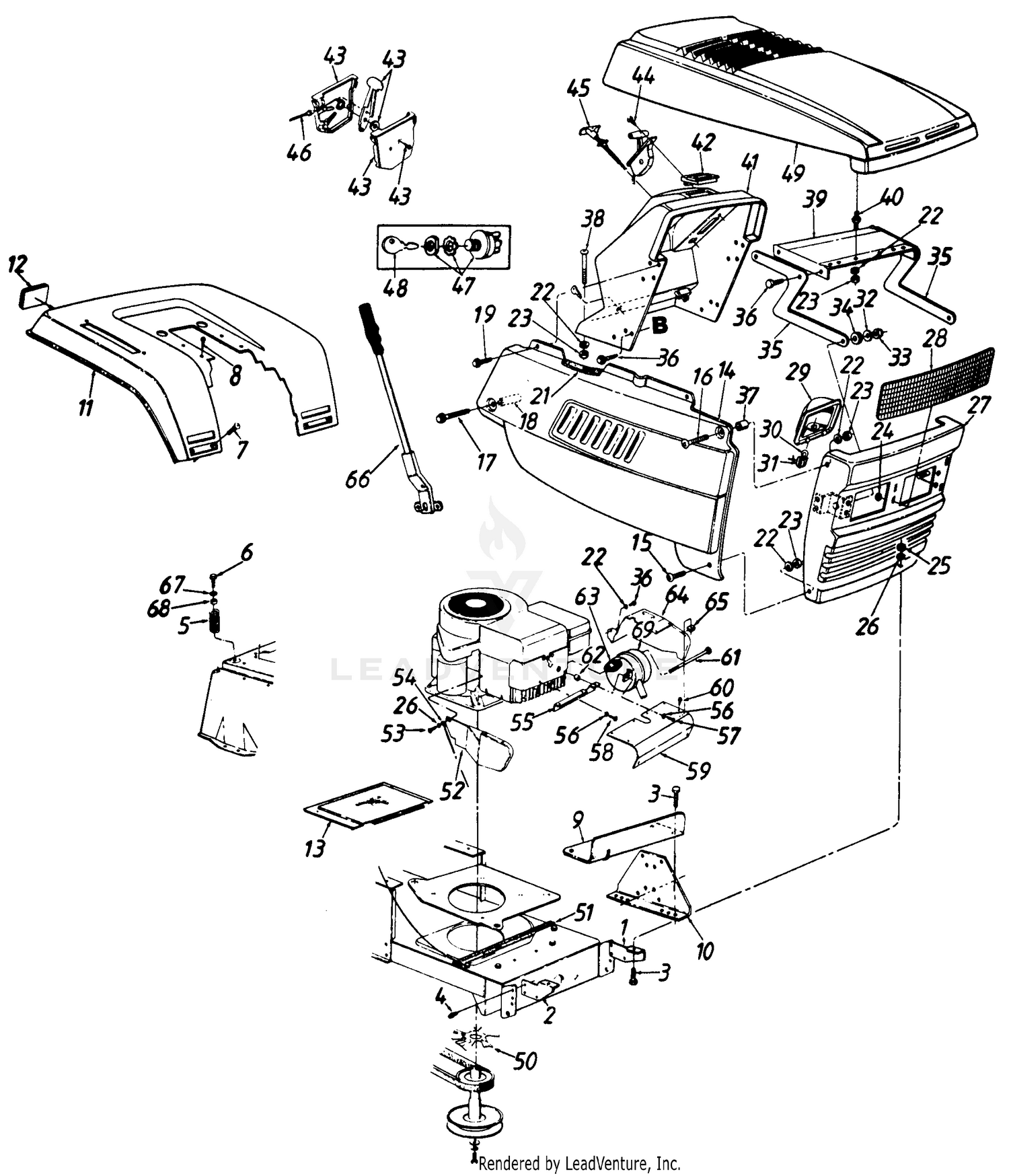

| Ref | Part Number | Description |
|---|
| 1 |
15821 |
BRACKET-GR Not Available Price: |
| 2 |
15822 |
BRACKET-GRILLE (RH) Not Available Price: |
| 3 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 4 |
710-0607 |
Hex Wash. Hd. Tap Scr. 5/16-18 x .5" Lg. Price: $6.06 |
| 5 |
732-0588 |
COMPRESSION SPRING Not Available Price: |
| 6 |
710-0817 |
Hex Wash. TT-Tap Scr. 5/16-18 x 1.25" Lg. Price: $5.77 |
| 7 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 8 |
710-0726 |
Hex Wash. Hd. Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 9 |
14605 |
SUPPORT-GA Not Available Price: |
| 10 |
17300A |
DASH SUPPORT BRACKET Not Available Price: |
| 11 |
17324 |
FENDER Not Available Price: |
| 13 |
17286B-0637 |
Shift Cover Not Available This part replaces 17286. Price: |
| 14 |
16725 |
SIDE PANEL (RH) Not Available This part replaces 17308. Price: |
| 15 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 16 |
710-0166A |
Truss Mach. Scr. 1/4-20 x 1.0" Lg. This part replaces 710-0166. Price: $6.24 |
| 17 |
710-1026 |
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg. Price: $5.94 |
| 18 |
750-0768 |
SPACER-.260 ID x 1.32 LG x 16 Not Available Price: |
| 19 |
710-0642 |
Hex Rolling Tap Scr. 1/4 20 x .75" Lg. Price: $4.05 |
| 21 |
731-0511 |
Trim Strip-6" Lg. Price: $3.29 |
| 22 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 23 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 24 |
726-0201 |
Speed Nut 5/16" Thd. Price: $6.01 |
| 25 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 26 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 27 |
17410 |
GRILLE ASS'Y. Not Available Price: |
| 28 |
931-1044 |
HEADLIGHT LENS Not Available This part replaces 731-1044. Price: |
| 29 |
931-0705 |
HEADLIGHT HOUSING Not Available This part replaces 731-0705. Price: |
| 30 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 31 |
925-1058A |
HEADLAMP SOCKET Not Available This part replaces 725-1058. Price: |
| 32 |
736-0242 |
Bell-Wash. .345" I.D. x .88" Price: $3.75 |
| 33 |
712-0429 |
Hex L-Nut 5/16-18 Thd. Price: $3.56 |
| 34 |
735-0126A |
RUBBER WASHER Not Available This part replaces 735-0126. Price: |
| 35 |
17273 |
HOOD HINGE Not Available Price: |
| 36 |
710-0599 |
Hex Wash. Hd. B-Tap Scr. 1/4-20 x .5" Lg Price: $3.86 |
| 37 |
750-0565 |
SPACER Not Available Price: |
| 38 |
710-0578 |
Truss Mach. Scr. 1/4-20 x 1.5" Lg. Price: $3.93 |
| 39 |
16903 |
HOOD LATE Not Available Price: |
| 40 |
710-1034 |
DOUBLE ENDED STUD 1/4-20 Not Available Price: |
| 41 |
731-1045 |
DASH PANEL Not Available Price: |
| 42 |
925-0925 |
Ammeter Not Available This part replaces 725-0925. Price: |
| 43 |
831-0823A |
Throttle Control Box Ass'y. Price: $30.59 |
| 44 |
710-0779A |
Truss Mach. AB-Tap Scr. #10 x .5" Lg. Price: $3.85 |
| 45 |
946-0615A |
CHOKE CONTROL 29" This part replaces 746-0615A. Price: $42.14 |
| 46 |
946-0500 |
Throttle Control Wire This part replaces 746-0500. Price: $13.70 |
| 47 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 48 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 49 |
731-1054 |
Hood Price: Call Us |
| 50 |
17199-0637 |
COOLING FAN Not Available This part replaces 17199. Price: |
| 51 |
722-0247 |
STRIP-FOAM Not Available Price: |
| 52 |
16811 |
SHIELD-HEA Not Available Price: |
| 53 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 55 |
16813 |
BRACKET-HE Not Available Price: |
| 56 |
936-0175 |
Spring Wash. .265 I.D. x .562 O.D. This part replaces 736-0175. Price: $3.48 |
| 57 |
710-3015 |
Hex Bolt 1/4-20 x .75" Lg. This part replaces 710-0252. Price: $3.65 |
| 58 |
710-0294 |
HEX CAP SCREW 1/4-20 x .375 GR5 Not Available Price: |
| 59 |
16812 |
SHIELD-MUF Not Available Price: |
| 60 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 61 |
938-0636 |
SHOULDER SCREW Not Available This part replaces 738-0636. Price: |
| 62 |
750-0709 |
SPACER Not Available Price: |
| 63 |
BS-692236 |
Gasket-Exhaust This part replaces 721-0208. Price: $4.66 |
| 64 |
16801 |
HEAT SHIELD (LH) Not Available Price: |
| 65 |
712-0147 |
Speed Nut #10-24 Thd. Price: $6.01 |
| 66 |
17194 |
KIT-DECK LIFT Not Available Price: |
| 67 |
736-0159 |
Fl-Wash. .344" I.D. x .875" Price: $3.71 |
| 68 |
722-0160 |
RUBBER BUSHING .318IDX.930OD Not Available Price: |
