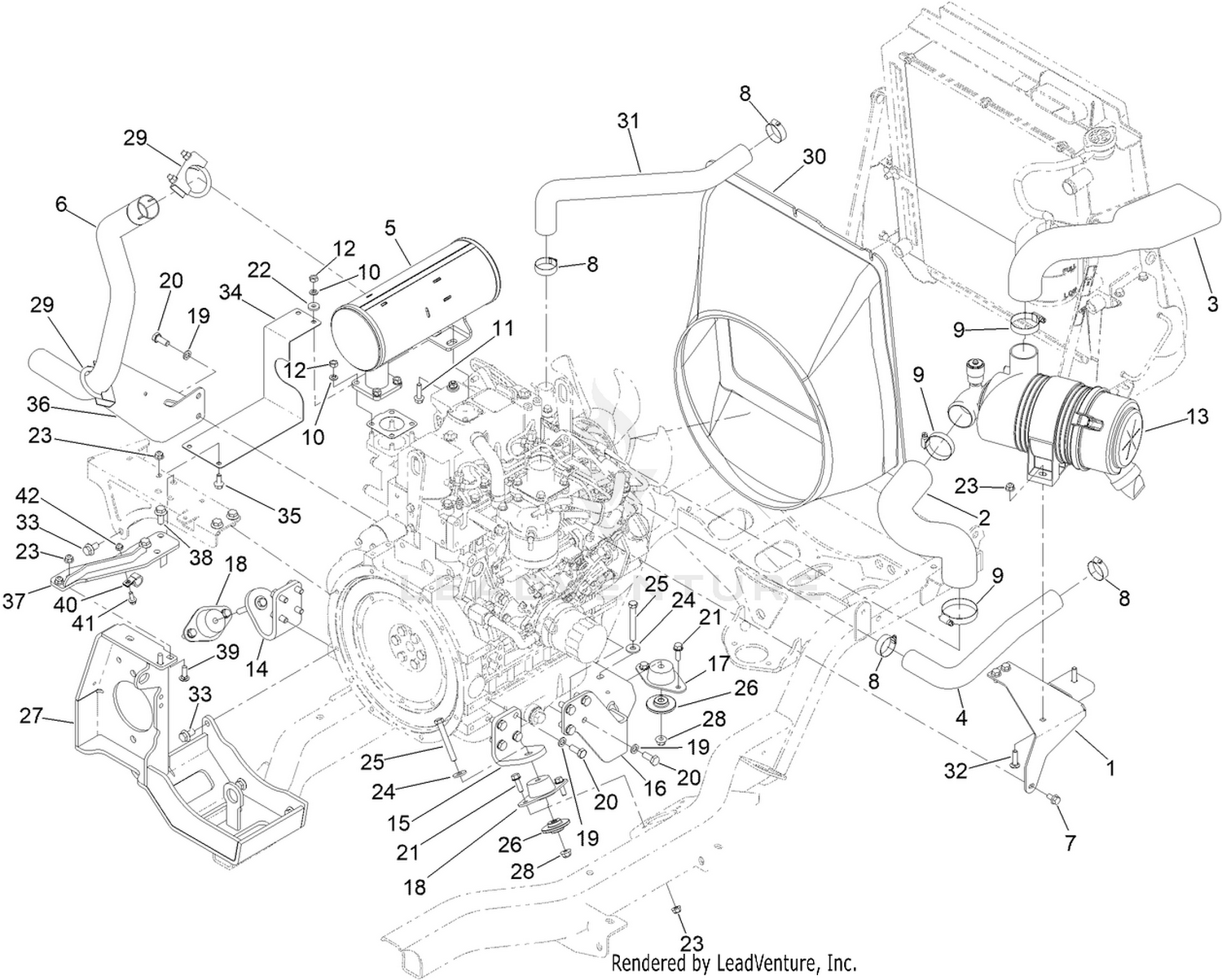

Engine Mount, Exhuast and Air Cleaner Assembly
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-6260-0P | BRACKET-AIR CLEANER [PRIMED] Price: Call Us |
| 2 | 139-6263 | HOSE-CLEANER, AIR Price: $52.60 |
| 3 | 139-6264 | HOSE-INTAKE, AIR Price: $94.91 |
| 4 | 139-6265 | HOSE-RADIATOR, LOWER Price: $28.57 |
| 5 | 139-6269 | MUFFLER ASM Price: $281.37 |
| 6 | 144-0571 | PIPE-EXHAUST Price: $113.71 |
| 7 | 33104-016 | SCREW-HHF Price: $0.97 |
| 8 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 9 | 2412-130 | CLAMP-HOSE Price: $2.57 |
| 10 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 11 | 33104-030 | SCREW-HHF Price: $4.66 |
| 12 | 33014-00 | NUT-HEX Price: $0.25 |
| 13 | 136-4481 | AIR CLEANER ASM Price: $287.47 |
| 14 | 138-0408-0P | MOUNT-ENGINE, RH FRONT Price: $32.69 |
| 15 | 138-0409-0P | MOUNT-ENGINE, LH FRONT Price: Call Us |
| 16 | 138-0410-0P | MOUNT-ENGINE, REAR 37HP [PRIMED Price: $115.41 |
| 17 | 120-6274 | MOUNT-ENGINE Price: $30.17 |
| 18 | 139-0856 | MOUNT-ENGINE Price: $28.21 |
| 19 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 20 | 33115-025 | SCREW-HH Price: $0.61 |
| 21 | 3234-29 | SCREW-HHF Price: $1.84 |
| 22 | 88-7200 | WASHER-FLAT Price: $2.51 |
| 23 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 24 | 80-6990 | WASHER-HARDENED Price: $3.06 |
| 25 | 323-14 | SCREW-HH Price: $1.34 |
| 26 | 138-6462 | SUPPORT-ISOLATOR Price: $4.17 |
| 27 | 145-6016-0P | BRACKET-PUMP MOUNT ASM [PRIMED] Price: $329.99 |
| 28 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 29 | 18-2130 | CLAMP Price: $5.63 |
| 30 | 138-0419 | SHROUD-FAN Price: $182.02 |
| 31 | 138-0429 | HOSE-RADIATOR, UPPER Price: $30.57 |
| 32 | 3230-29 | SCREW-CARR Price: $1.89 |
| 33 | 33105-020 | SCREW-HHF Price: $0.54 |
| 34 | 140-7186 | BRACKET-HEAT SHIELD Price: $27.69 |
| 35 | 3234-47 | SCREW-HHF Price: $1.79 |
| 36 | 144-0514-03 | SUPPORT-TAILPIPE Price: $38.40 |
| 37 | 145-5955-0P | BRACKET-PUMP [PRIMED] Price: $129.73 |
| 38 | 33105-025 | SCREW-HHF Price: $1.56 |
| 39 | 3230-2 | BOLT-CARR Price: $0.47 |
| 40 | 2412-87 | CLAMP-CABLE Price: $2.89 |
| 41 | 120-9678 | SCREW-HHF Price: $0.42 |
