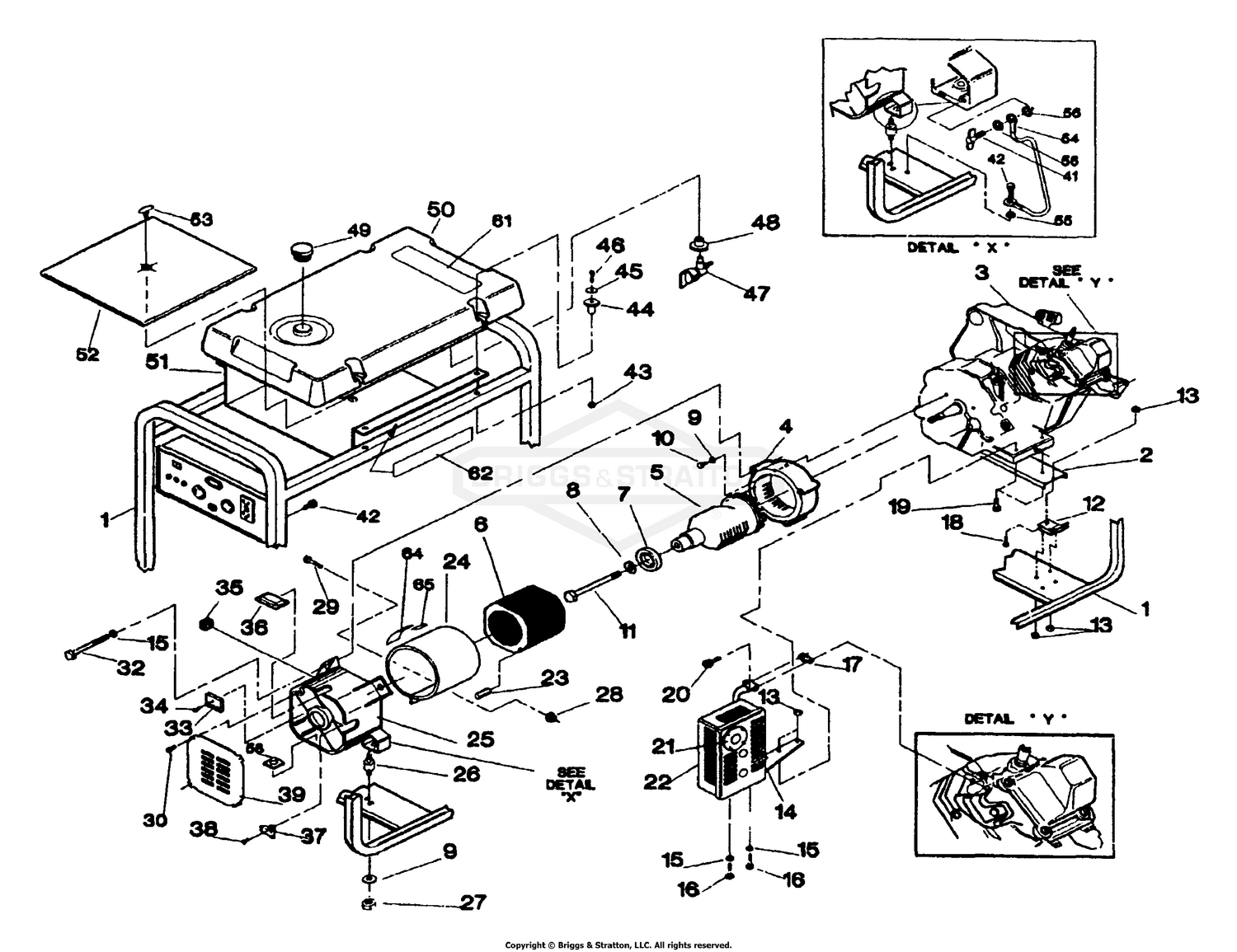

| Ref | Part Number | Description |
|---|
| 2 |
B84021GS |
SUPPORT, Engine This part replaces 84021. Price: $7.35 |
| 4 |
66365GS |
HOUSING, Engine Adapter This part replaces 66365. Price: $60.98 |
| 5 |
84141 |
Rotor Assembly Price: Call Us |
| 6 |
83540 |
Stator Assembly Price: Call Us |
| 7 |
65791GS |
BEARING This part replaces 65791. Price: $32.00 |
| 8 |
67451 |
M8 Flat Washer Price: Call Us |
| 9 |
22129GS |
WASHER, Lock This part replaces 22129. Price: $2.61 |
| 11 |
5047480B |
FLOOR PLATE This part replaces 47480. Price: $179.99 |
| 12 |
84508GS |
MOUNT, Vibration This part replaces 84508. Price: $17.97 |
| 13 |
52858GS |
NUT, Locking Hex M8 - 1.25 This part replaces 52858. Price: $3.20 |
| 14 |
83208GS |
BRACKET, Muffler This part replaces 83208. Price: $16.99 |
| 15 |
5022097SM |
CAP This part replaces 22097. Price: $2.75 |
| 16 |
43116GS |
SCREW, M6 x 12 This part replaces 43116. Price: $2.96 |
| 17 |
80314GS |
GSKT, EXHAUST This part replaces 80314. Price: $7.29 |
| 18 |
70644GS |
SCREW This part replaces 70644. Price: $3.79 |
| 19 |
195398GS |
TPHMS, M8 - 1.25 x 35 This part replaces 84346. Price: $2.49 |
| 20 |
40976 |
M8-1.25 x 20mm Capscrew Price: Call Us |
| 21 |
83083GS |
SCREEN, Spark Arrest This part replaces 83083. Price: $8.49 |
| 22 |
83071GS |
MUFFLER This part replaces 83071. Price: $82.05 |
| 23 |
81917GS |
PIN, ROLL 4MM x 10 This part replaces 81917. Price: $2.79 |
| 24 |
81887B |
Stator Wrap Price: Call Us |
| 25 |
66825 |
Rear Bearing Carrier Price: Call Us |
| 26 |
194153GS |
MOUNT-VIBRATION This part replaces 85652. Price: $10.54 |
| 27 |
5045771B |
SKID PLATE This part replaces 45771. Price: $55.95 |
| 28 |
52856GS |
NUT, LOCKING-M5 This part replaces 52856. Price: $2.59 |
| 29 |
52618GS |
SCREW, M5 x 0.8 x 12 This part replaces 52618. Price: $2.64 |
| 30 |
74908GS |
TAPTITE, M5-0.8 x 10 LG. This part replaces 74908. Price: $2.69 |
| 32 |
66449E |
M6-1.0 x 115mm Stator Bolt Price: Call Us |
| 33 |
65795GS |
RECTIFIER, BATTERY CHARGE This part replaces 65795. Price: $10.80 |
| 34 |
66849AGS |
SCREW This part replaces 66849A. Price: $4.02 |
| 35 |
67022GS |
GROMMET, RUBBER This part replaces 67022. Price: $2.55 |
| 36 |
84132GS |
ASSEMBLY, POWER REGULATOR This part replaces 84132. Price: $31.80 |
| 37 |
66386GS |
ASSEMBLY, BRUSH HOLDER This part replaces 66386. Price: $21.52 |
| 38 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849. Price: $2.96 |
| 39 |
67025 |
Bearing Carrier Cover Price: Call Us |
| 40 |
22769GS |
WASHER, SHAKE PROOF INT.# 10 This part replaces 22769. Price: $2.49 |
| 41 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 42 |
313085GS |
SCREW This part replaces 86292. Price: $3.35 |
| 43 |
77395GS |
NUT, FLANGE LOCK - M6 This part replaces 77395. Price: $3.09 |
| 44 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
| 45 |
78830GS |
WSHR, SPCL, BLK This part replaces 78830. Price: $1.35 |
| 46 |
78831A |
M6-1.0 x 60mm Capscrew Price: Call Us |
| 47 |
192980GS |
Kit, Valve This part replaces 80270. Price: $16.43 |
| 48 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 49 |
84134GS |
GROMMET, Rubber Connector This part replaces 84134. Price: $4.19 |
| 50 |
83311 |
Fuel Tank Price: Call Us |
| 51 |
84042 |
Heat Shield Price: Call Us |
| 52 |
84667 |
No. 2 1/4" thick insulation Price: Call Us |
| 53 |
85000GS |
CLIP, INSULATION This part replaces 85000. Price: $2.59 |
| 54 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 55 |
23762GS |
WASHER, #10 Ext. Shakeproof This part replaces 23762. Price: $2.64 |
| 58 |
57593GS |
MOUNT, CABLE TIE This part replaces 57593. Price: $4.29 |
| 61 |
78992 |
Start/Danger Decal Price: Call Us |
| 62 |
88270 |
Heat Shield Decal Price: Call Us |
| 64 |
78817GS |
DECAL, DATA, GNRC GEN This part replaces 78817. Price: $2.80 |
