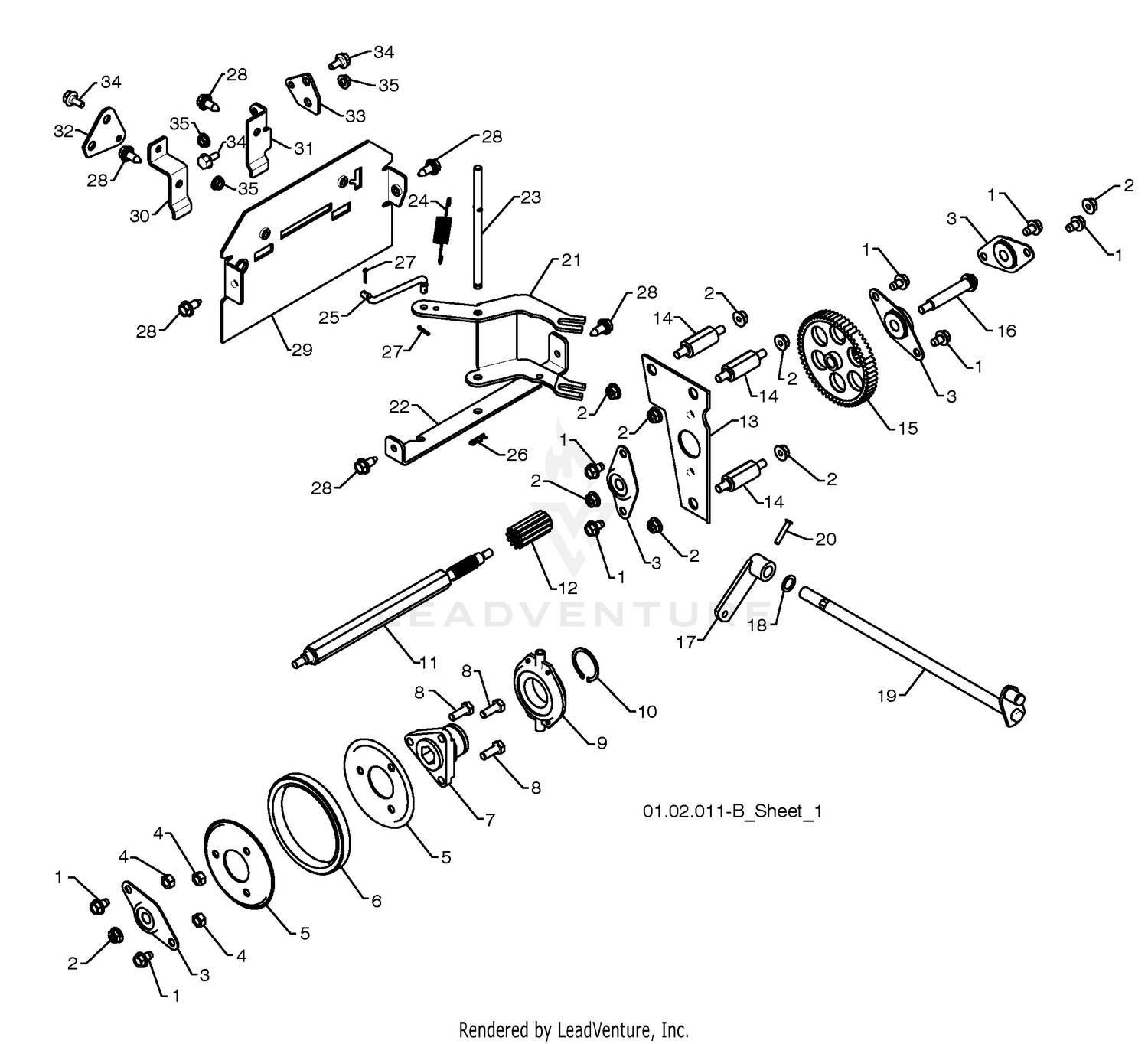

| Ref | Part Number | Description |
|---|
| 1 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 1 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 3 |
322-10 |
SCREW-HH Price: $0.70 |
| 3 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 4 |
32105-21 |
SCREW-HH Price: $1.09 |
| 4 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 5 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK Price: $7.99 |
| 6 |
29-6162 |
SWITCH-MICRO Price: $107.13 |
| 6 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 7 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 7 |
75-4130 |
PLATE-SWITCH Price: $13.26 |
| 8 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 8 |
76-9430-03 |
SPRING-EXTENTION This part replaces 76-9430. Price: $28.14 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 10 |
322-7 |
SCREW-HH Price: $0.89 |
| 10 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 11 |
251-259 |
BEARING-BALL Price: $13.67 |
| 11 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 12 |
532180065 |
GEAR, PINION Price: $12.99 |
| 12 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 13 |
32144-22 |
SCREW Price: $0.75 |
| 13 |
532192616 |
PLATE.AUXILIARY.BLACK This part replaces 532435790. Price: $4.99 |
| 14 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 15 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180082. Price: $199.99 |
| 15 |
75-4080-03 |
PLATE-TRACTION ASM This part replaces 75-4080. Price: $56.27 |
| 16 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 16 |
85-9900-03 |
PLATE-ANCHOR, SPRING This part replaces 85-9900. Price: $21.09 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
256-113 |
BUSHING-FLANGE Price: $5.58 |
| 19 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532427542. Price: $29.99 |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 21 |
532184080 |
LEVER, SPEED CONTROL This part replaces 532435792. Price: $12.99 |
| 21 |
92-2581 |
DISCONTINUED Price: Call Us |
| 22 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 22 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK Price: $5.99 |
| 23 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 23 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 24 |
3296-9 |
NUT-HEX Price: $0.25 |
| 24 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 25 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 25 |
75-4100-03 |
CONTROL-PUMP This part replaces 75-4100. Price: $198.81 |
| 26 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 26 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 27 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 27 |
85-9910 |
EYEBOLT Price: $28.77 |
| 28 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 29 |
532416921 |
PLATE.REAR.SNOW.PNT.ORANGE Price: $11.99 |
| 30 |
532435797 |
RP BRACKET.SHIFTER.PLATE Price: $2.99 |
| 31 |
532435796 |
BRACKET.CLUTCH.PLATE Price: $2.99 |
| 32 |
532435800 |
RP PLATE.SHIFTER. Price: $2.99 |
| 33 |
532415435 |
PLATE.CLUTCH.BZP This part replaces 532435799. Price: $2.99 |
| 34 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $3.99 |
