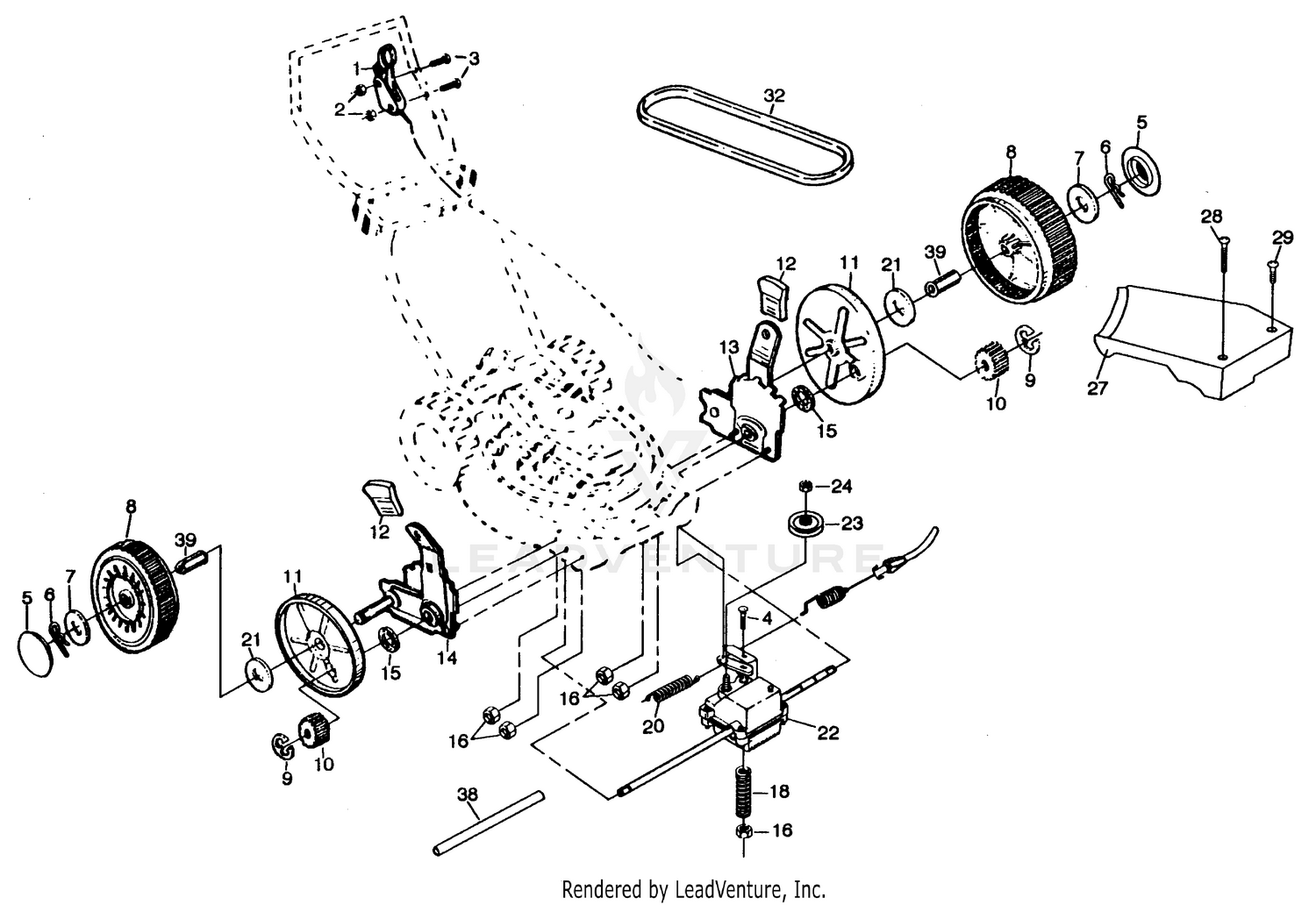

| Ref | Part Number | Description |
|---|
| GCK2200 |
Grass |
Catcher (AYP part number) Price: Call Us GCK2200 |
| 1 |
120-8575-03 |
UPPER CRADLE ASM Price: $147.46 |
| 1 |
532137076 |
Drive Control (AYP part number) This part replaces 532700615. Price: $44.99 |
| 2 |
120-8576 |
COVER-SLIDE Price: $97.57 |
| 2 |
532069180 |
Locknut #10-24 (AYP part number) Price: $2.99 |
| 3 |
108-3457 |
SPACER Price: $21.03 |
| 3 |
532750029 |
Pan Head Machine Screw #10-24 x 2 (AYP part number) Price: $3.99 |
| 4 |
120-8589-03 |
BRACKET-TUBE Price: $60.38 |
| 4 |
532700875 |
Carriage Bolt 1/4-20 x 2 (AYP part number) Price: $2.99 |
| 5 |
120-0757-03 |
BRACKET-TUBE Price: $29.00 |
| 5 |
532077400 |
Hubcap (AYP part number) Price: $3.99 |
| 6 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 6 |
532085179 |
Retainer Clip (AYP part number) Price: $3.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
532052160 |
Washer (AYP part number) Price: $3.99 |
| 8 |
120-0608-03 |
HINGE Price: $130.93 |
| 8 |
532750851 |
Wheel & Tire Assembly (AYP part number) Price: $3.33 |
| 9 |
120-0611-03 |
STRAP Price: $70.31 |
| 9 |
812000058 |
E-ring (AYP part number) Price: $1.99 |
| 10 |
120-0613-03 |
STRAP Price: $81.86 |
| 10 |
532137054 |
Pinion Price: $2.99 |
| 11 |
120-0761 |
BUSHING Price: $3.39 |
| 11 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532088080. Price: $2.99 |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
532701037 |
SELECTOR KNOB This part replaces 532132800. Price: $2.99 |
| 13 |
322-20 |
SCREW-HH Price: $1.79 |
| 13 |
583530901 |
KIT.ADJUSTER.ASM.438442.ORING This part replaces 532751809. Price: $27.99 |
| 14 |
110-5331 |
SPRING-COMPRESSION Price: $22.18 |
| 14 |
532751810 |
Wheel Adjuster Assembly (Right) (AYP part number) Price: $49.99 |
| 15 |
532088118 |
Felt Washer (AYP part number) Price: $3.99 |
| 15 |
92-0010 |
U-BOLT Price: $10.65 |
| 16 |
120-0646 |
HOUSING-LOWER, ULTRASONIC SENSOR Price: $89.58 |
| 16 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 532063601. Price: $1.99 |
| 17 |
117-8114 |
SENSOR-SONIC Price: $850.04 |
| 18 |
3234-36 |
SCREW-HHF Price: $0.75 |
| 18 |
532137090 |
Spring (AYP part number) Price: $3.99 |
| 19 |
120-0647 |
NUT Price: $21.97 |
| 20 |
120-0648 |
PLUG-PROGRAMMING Price: $62.08 |
| 20 |
532075192 |
Spring Price: $3.99 |
| 21 |
120-0645 |
COVER-SENSOR, ULTRASONIC Price: $80.27 |
| 21 |
532067725 |
Washer 1/2 x 1-1/2 x .134 (AYP part number) Price: $3.99 |
| 22 |
104-7201 |
NUT-HF Price: $0.69 |
| 22 |
532702510 |
Gear Case Assembly (AYP part number) Price: $114.14 |
| 23 |
120-0772 |
CAP-TUBE Price: $5.21 |
| 23 |
532137052 |
Drive Pulley (AYP part number) Price: $6.99 |
| 24 |
117-8115 |
CABLE-ULTRASONIC SENSOR, 4 METER Price: $152.18 |
| 24 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $2.99 |
| 25 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 27 |
532137080 |
Drive Cover Price: $3.33 |
| 28 |
532087866 |
Pan Head Tapping Screw #10-24 x 2-3/4 (AYP part number) Price: $3.90 |
| 29 |
532149746 |
Pan Head Tapping Screw #10-24 x 1-3/4 (AYP part number) This part replaces 532136797. Price: $3.99 |
| 32 |
532157769 |
KIT.SERVICE.BELT/SPRING. This part replaces 532137078. Price: $11.99 |
| 38 |
532086012 |
Drive Shaft Cover (AYP part number) Price: $5.46 |
| 39 |
532088446 |
Wheel Bushing (AYP part number) Price: $2.16 |
