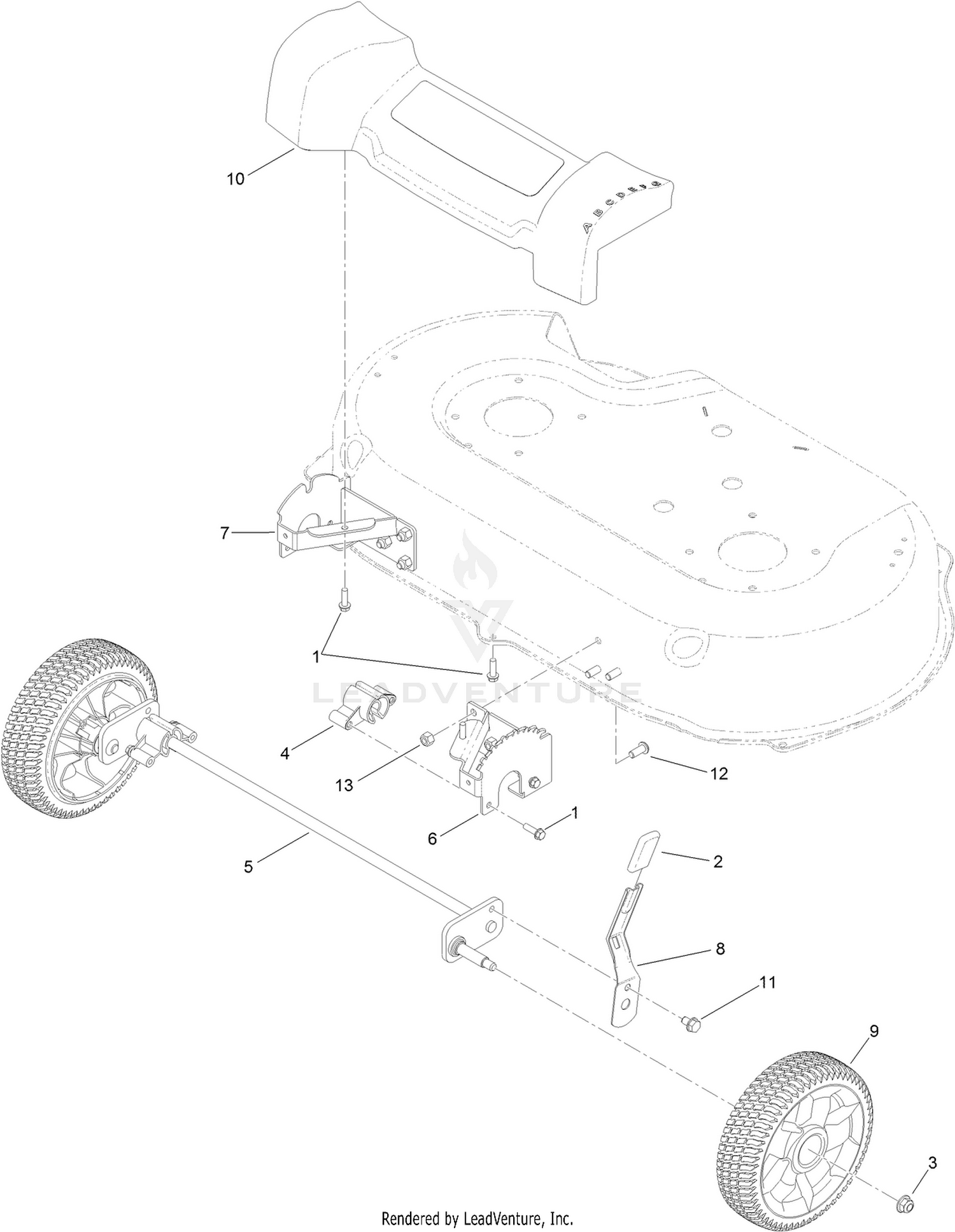

Front Wheel and Axle Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 46-8091 | SCREW-HWH Price: $3.59 |
| 2 | 120-9535 | GRIP-LEVER Price: $1.22 |
| 3 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 4 | 136-5875 | BUSHING-PIVOT, FRONT This part replaces 125-2495. Price: $2.89 |
| 5 | 139-1753 | FRONT AXLE ASM This part replaces 125-5061. Price: $28.67 |
| 6 | 120-7037-03 | PLATE-HOC, LH Price: $15.80 |
| 7 | 120-7038-03 | PLATE-HOC, RH Price: $15.80 |
| 8 | 120-7043 | ARM-SPRING Price: $8.44 |
| 10 | 125-5027 | FRONT COVER ASM Price: $31.64 |
| 11 | 700057 | SCREW-HWH Price: $1.36 |
| 12 | 3274-55 | SCREW-HSBH Price: $3.19 |
