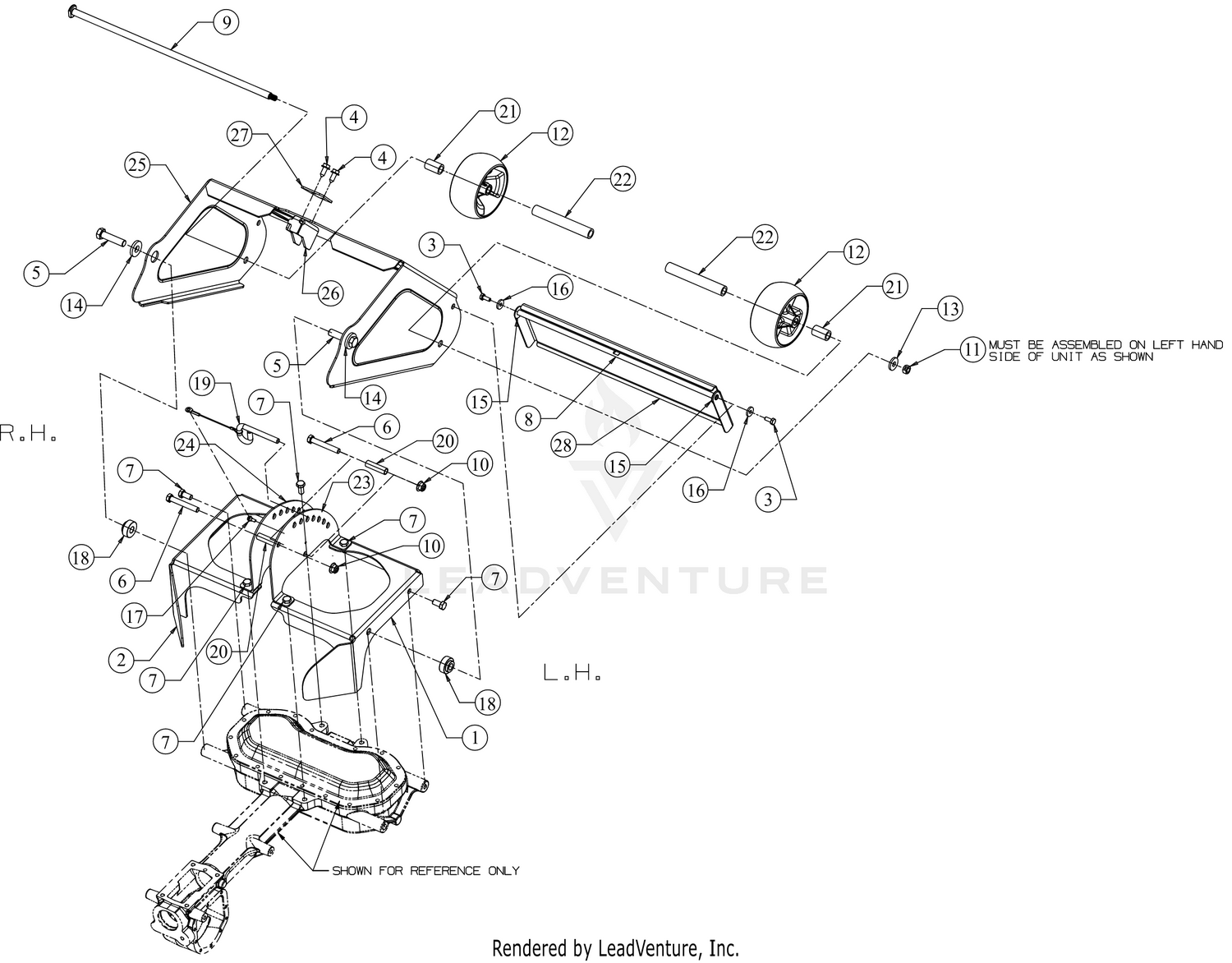

| Ref | Part Number | Description |
|---|
| 1 |
686-05029-0638 |
TINE SHIELD ASSEMBLY (LH) (MTD RED) Not Available Price: |
| 2 |
686-05030-0638 |
TINE SHIELD ASSEMBLY (RH) (MTD RED) Not Available Price: |
| 3 |
710-0433 |
SCREW 1/4-20 x .62 SPEC GR5 Price: $4.02 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-04644 |
SCREW 1/2-13 x 2.00 GR5 Price: $2.72 |
| 6 |
710-0859 |
HEX SCREW-3/8-16X2.5 GR5 Price: $5.99 |
| 7 |
710-3119 |
SCREW 3/8-16 x .75 GR 5 Price: $5.91 |
| 8 |
711-06398 |
TINE SHIELD ROD Not Available Price: |
| 9 |
711-06445 |
WHEEL SHAFT Not Available Price: |
| 10 |
712-04065 |
NUT Price: $3.68 |
| 11 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 12 |
734-04155 |
DECK WHEEL Price: $19.04 |
| 13 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 14 |
736-04019 |
FLAT WASHER .531 x 1.25 x .181 Price: $7.02 |
| 15 |
736-05117 |
WASHER-DELRIN .405 x .985 X.042 Not Available Price: |
| 16 |
736-0176 |
Flat Washer .265 x .938 x .120 This part replaces 936-0176. Price: $3.95 |
| 17 |
738-04237A |
SHOULDER SCREW Price: $5.30 |
| 18 |
738-05119 |
SHOULDER SPACER Not Available Price: |
| 19 |
747-06450 |
LOCK ROD DEPTH PIN Not Available Price: |
| 20 |
750-06031 |
SPACER Price: $4.69 |
| 21 |
750-06296 |
SPACER .525 x .775 x 1.245 Not Available Price: |
| 22 |
750-06376 |
SPACER .525 x .775 x 5.175 Not Available Price: |
| 23 |
786-05055-0638 |
HEIGHT ADJUSTMENT BRACKET (MTD RED) Not Available Price: |
| 24 |
786-05056-0638 |
HEIGHT ADJUSTMENT BRACKET (MTD RED) Not Available Price: |
| 25 |
786-05057-0638 |
TINE SHIELD PIVOT (MTD RED) Not Available Price: |
| 26 |
786-05058-0638 |
SHIELD STOP BRACKET (MTD RED) Not Available Price: |
| 27 |
786-05059-0638 |
SHIELD STOP BRACKET (MTD RED) Not Available Price: |
