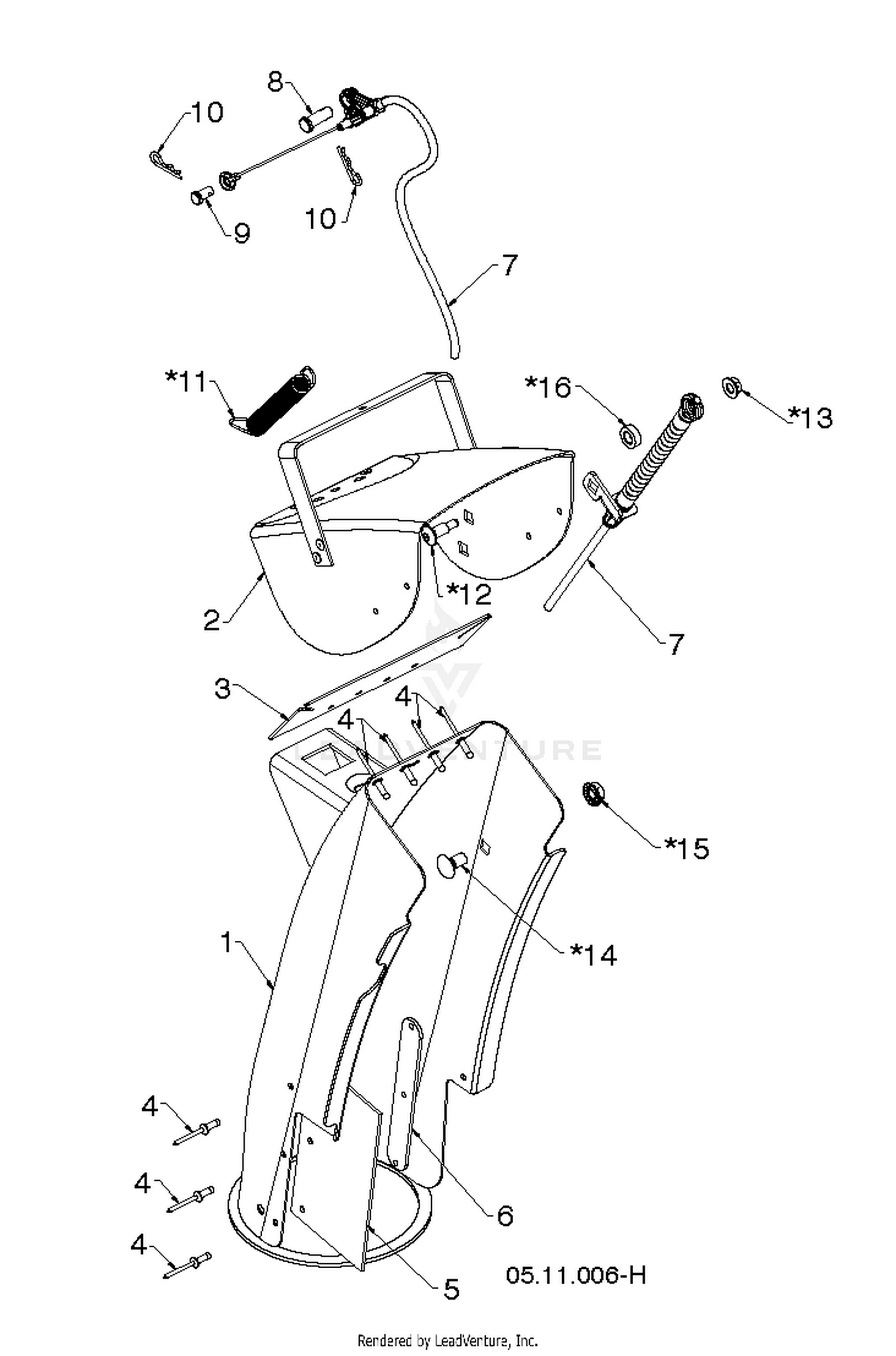

| Ref | Part Number | Description |
|---|
| 1 |
115-0190-03 |
SHAFT-LIFT Price: $677.87 |
| 2 |
115-0491 |
CAP-BEARING Price: $56.97 |
| 3 |
117-2903 |
PLATE-BEARING Price: $9.22 |
| 4 |
325-37 |
SCREW-HH Price: $2.57 |
| 5 |
112-9544 |
PIN-HOC Price: $6.66 |
| 6 |
110-9834 |
HYD CYLINDER ASM Price: $647.03 |
| 7 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 7 |
590587002 |
CABLE CONTROL.CHUTE.DEFLECTOR. Price: $19.99 |
| 8 |
581329401 |
PIN CLEVIS 5/16X.875 Price: $2.99 |
| 8 |
95-1639 |
FITTING-STR,ORIF Price: $63.47 |
| 9 |
115-0183 |
SHAFT-CYLINDER, LIFT Price: $25.26 |
| 9 |
585808301 |
PIN CLEVIS .25 X .31 Price: $3.99 |
| 10 |
327-8 |
SCREW-HH Price: $5.97 |
| 10 |
583404901 |
HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 11 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 12 |
98-2654 |
PIN-PIVOT Price: $77.85 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 15 |
99-5105 |
BOLT-SHOULDER Price: $5.89 |
| 16 |
119-1385 |
CHAIN-HOC Price: $10.05 |
| 17 |
119-1380-03 |
LIFT-RH Price: $140.22 |
| 18 |
119-1383-03 |
LIFT-LH Price: $147.86 |
| 19 |
114-5680 |
BUSHING-FLANGE Price: $3.90 |
| 20 |
69-9010 |
WASHER Price: $1.83 |
| 21 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 22 |
103-1898 |
SCREW-HH Price: $1.79 |
| 23 |
32128-37 |
NUT-HF Price: $3.63 |
| 24 |
327-7 |
SCREW-HH Price: $5.69 |
| 25 |
3296-61 |
NUT-LOCK Price: $14.99 |
| 26 |
114-4059 |
LINK ASM Price: $91.43 |
| 27 |
112-1602 |
PIN-RETAINER Price: $60.94 |
| 28 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
