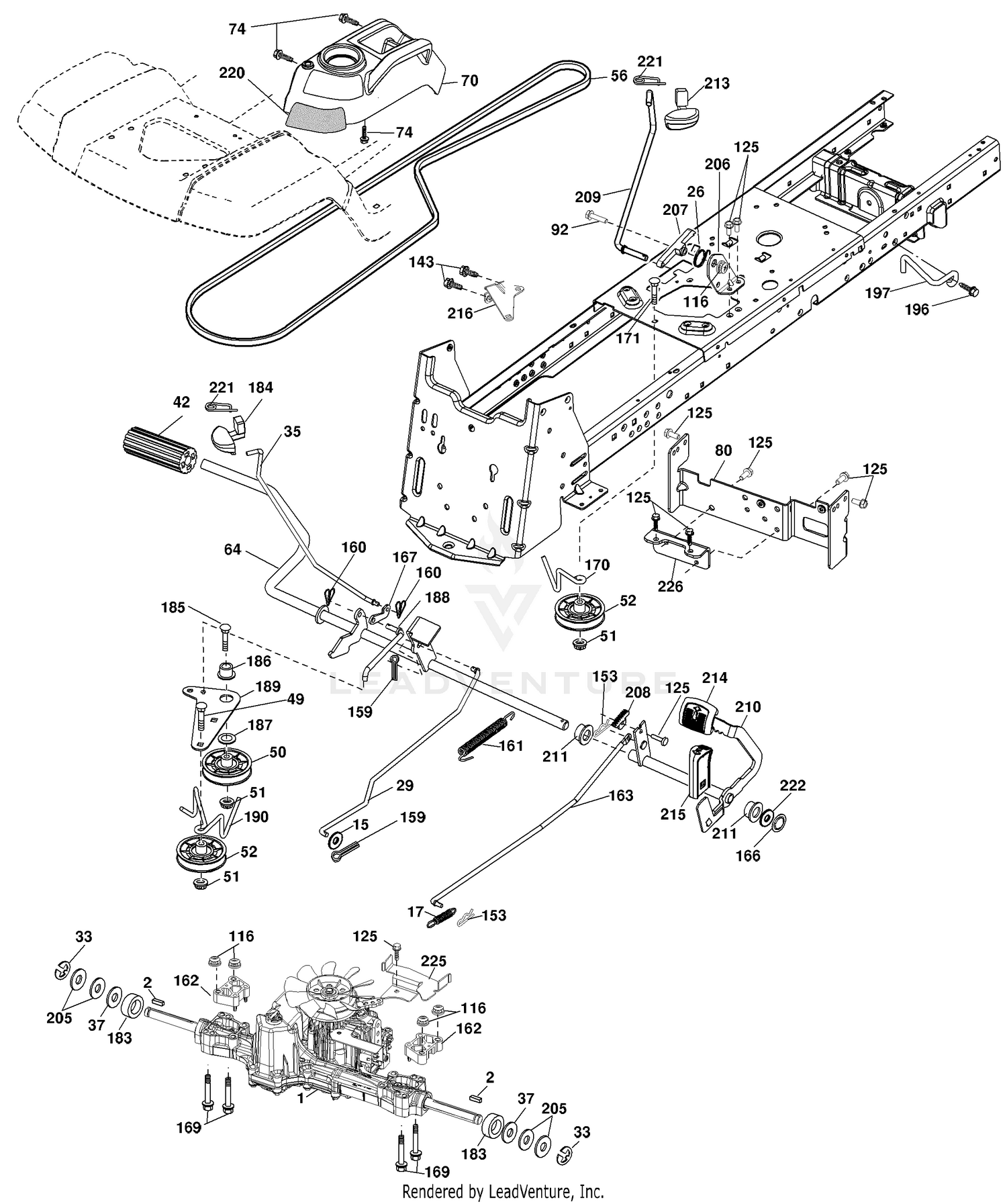

Drive

Drive

Parts (105)

RefPart NumberDescription
1 62-5550 DECAL Price: $9.32
2 532123583 SQUARE KEY Price: $3.99
2 93-7996-01 COVER-TOWER Price: $64.83
3 106-5950 RH FENDER ASM This part replaces 93-7579. Price: $661.25
4 93-6686 DECAL-OIL, HYD Price: $7.01
5 93-6689 DECAL-NO RIDERS Price: $9.75
6 106-5951 LH FENDER ASM This part replaces 75-3860. Price: $625.15
7 3234-14 SCREW-HHF Price: $0.61
8 99-6900-01 FRAME ASM Price: $5,541.71
9 3256-1 WASHER-FLAT Price: $0.39
10 3258-166 SCREW-PRH Price: $0.28
11 98-4572 BRACKET-CLAMP, HOSE Price: $33.62
12 32144-14 SCREW-HWHTF Price: $4.29
13 75-1390-01 COVER-ACCESS, FRONT Price: $78.27
14 75-1410-01 PLATE-ACCESS, FLOOR Price: $142.43
15 3234-7 SCREW-HHF Price: $1.99
15 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99
15 75-6840 KNOB-KNURLED Price: $16.22
16 93-7592 TREAD-REST, FOOT Price: $13.96
17 104-0048 TREAD-STEP Price: $10.35
17 532413678 SPRING.BRAKE.K46.GREEN Price: $6.99
18 3234-5 SCREW-HHF Price: $0.42
19 75-5780 HINGE-STEEL Price: $18.08
20 3256-3 WASHER-FLAT Price: $0.49
21 75-0620 TREAD-FOOT, LH Price: $24.33
22 75-0610 TREAD-FOOT, RH Price: $21.68
23 75-0630 TREAD-FOOT, CENTER Price: $56.24
24 32128-33 NUT-HF Price: $0.25
25 93-8744 RIVET-BLIND Price: $0.75
26 52-2900 WASHER-PLASTIC Price: $0.75
26 532199679 SPRING.RETURN.CRUISE Price: $3.99
27 74-5950 LATCH-SWELL Price: $21.28
28 94-1410 HOLDER-CAN, BEVERAGE Price: $5.81
29 532403806 ROD.BRAKE.K46 Price: $17.99
29 93-9180-03 COVER-TOOL BOX Price: $24.04
30 104-0081 DECAL-SERVICE INSTRUCTIONS Price: $12.07
30 104-1400 DECAL-DANISH Price: $11.19
30 104-1401 DECAL-DUTCH Price: $11.19
30 104-1402 DECAL-FINNISH Price: $11.19
30 104-1403 DISCONTINUED Price: Call Us
30 104-1404 DECAL-GERMAN Price: $11.19
30 104-1405 DECAL-ITALIAN Price: $11.19
30 104-1406 DECAL-JAPANESE Price: $11.19
30 104-1407 DECAL-NORWEGIAN Price: $11.19
30 104-1408 DECAL-PORTUGUESE Price: $11.19
30 104-1409 DECAL-SPANISH Price: $11.19
30 104-1410 DECAL-SWEDISH Price: $11.19
30 104-1434 DECAL-SERVICE, BLANK Price: $11.05
31 93-1262 DISCONTINUED Price: Call Us
32 322-3 SCREW-HH Price: $0.79
33 75-5810-03 BOX-TOOL ASM Price: $234.90
33 812000001 E-RING LT Price: $3.99
35 583864502 Rods This part replaces 532199591. Price: $6.99
36 93-6680 DECAL-DIESEL Price: $19.31
37 532188967 WASHER.HARDENED Price: $3.99
42 510089501 PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99
49 596136201 Bolts This part replaces 872110614. Price: $3.99
50 532194327 IDLER.FLAT.910.OFFSET Price: $17.99
51 532409149 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99
52 532194326 IDLER.V-GROOVE.910.OFFSET Price: $19.99
56 592855201 Belts This part replaces 532130969. Price: $27.99
64 532197865 SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99
70 532439661 CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99
74 596134101 Screws This part replaces 532142432. Price: $2.99
80 532404483 STRAP.TORQUE.HG3000/K46 Price: $17.99
92 595305701 Screws This part replaces 874760520. Price: $3.99
116 596135701 GSPW Nuts This part replaces 873900500. Price: $2.99
125 532428867 BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99
143 596030701 Screws This part replaces 817490508. Price: $2.99
153 532004497 RETAINER M This part replaces 532124788. Price: $4.99
159 596029501 Pins This part replaces 876020412. Price: $2.99
160 596029401 GSPW Retainers This part replaces 532169484. Price: $3.99
161 532105709 SPRING, RETURN LT This part replaces 532195403. Price: $9.99
162 580457401 SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99
163 593861001 Rods This part replaces 532401034. Price: $22.99
166 532429164 NUT.PUSH.625 This part replaces 532197290. Price: $4.99
167 531152901 SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99
169 583613301 BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99
170 532194322 KEEPER.V-IDLER.CENTER. Price: $5.99
171 596136301 Bolts This part replaces 872110616. Price: $2.99
183 532137057 SPACER AXLE Price: $5.99
184 532196439 HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99
185 596435101 Bolts This part replaces 872110620. Price: $2.99
186 532194321 SPACER.RETAINER Price: $7.99
187 596135501 Washers This part replaces 819133210. Price: $4.99
188 582217001 LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99
189 531169001 SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99
190 532194318 KEEPER.BELLCRANK.DRIVE Price: $5.99
196 817000616 SCREW 3/8-16X1 Price: $5.99
197 532195804 LINK.CLUTCH.ANIT-ROTAT Price: $5.99
205 532121748 WASHER Price: $3.99
206 532448596 BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99
207 587031402 Latch This part replaces 532197868. Price: $5.99
208 596564101 Gears This part replaces 532197869. Price: $4.99
209 596869801 Rods This part replaces 532199592. Price: $5.99
210 532197860 ROCKER.ASM.PEDAL.CONTR Price: $44.99
211 532120183 BEARING.NYLON Price: $5.99
213 532403119 KNOB.CONTROL.CRUSIE.HU Price: $8.99
214 532421263 PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99
215 532401723 PEDAL.REVERSE.TEX.GT.4 Price: $12.99
216 532196131 BRACKET.PULLEY.IDLER.W/TEX Price: $6.99
220 532198908 REFLECTOR.RH.TEX GT Price: $14.99
221 532403187 RETAINER.SPRING.CLIP.H Price: $3.99
222 879212010 WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99
225 531149001 SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99
