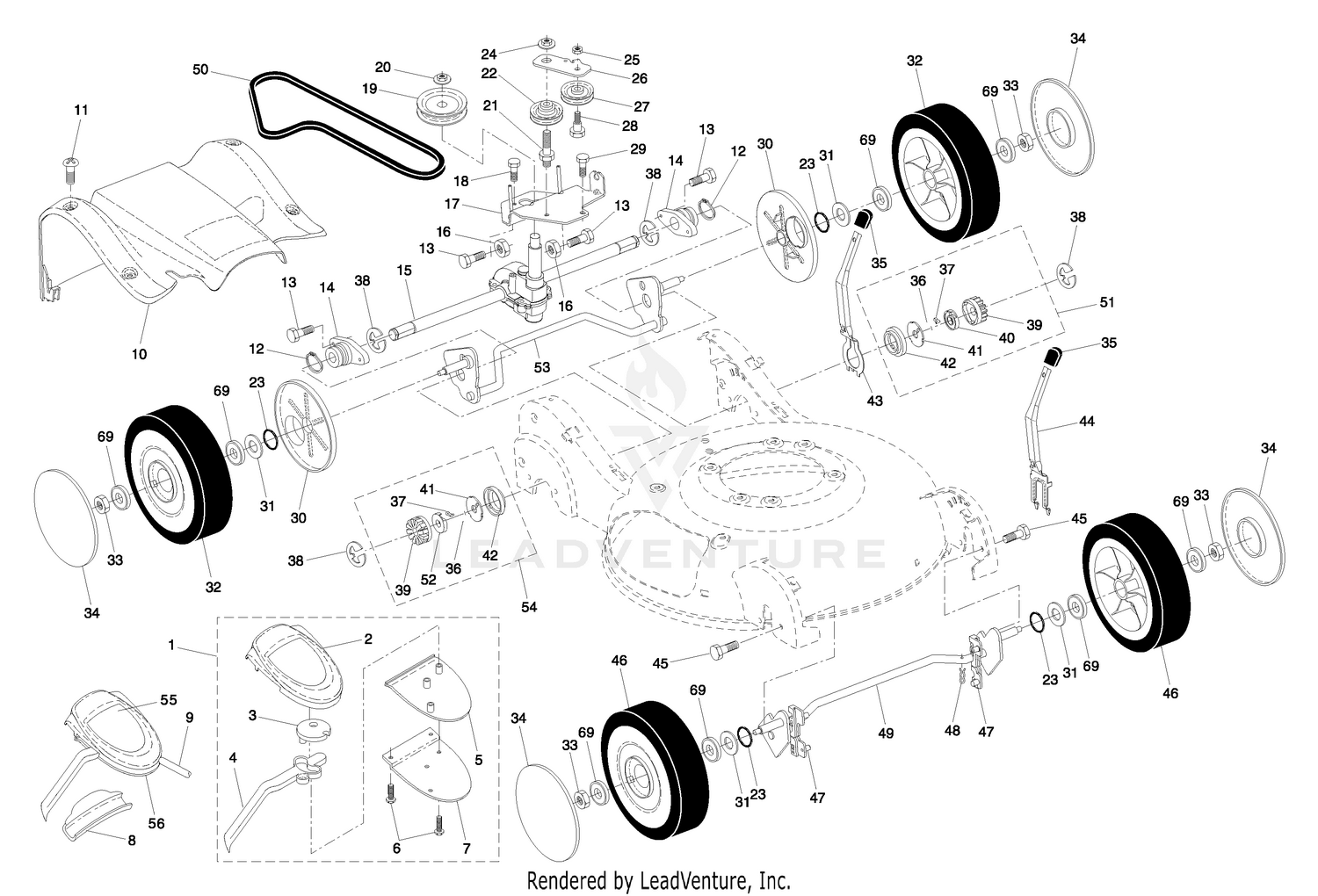

| Ref | Part Number | Description |
|---|
| 2 |
532197168 |
DRIVE CONTROL COVER This part replaces 532188279. Price: $37.99 |
| 3 |
532187353 |
Pulley, Drive Control Price: $6.99 |
| 4 |
532425662 |
LEVER.BLACK This part replaces 532190283. Price: $8.99 |
| 5 |
532197168 |
DRIVE CONTROL COVER This part replaces 532188278. Price: $37.99 |
| 6 |
532181698 |
Screw, Torx Head #8-5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT This part replaces 532187097. Price: $3.99 |
| 8 |
532186297 |
Cap, Drive Control, Bottom Price: $4.99 |
| 9 |
532196577 |
DRIVE CONTROL CABLE This part replaces 532188280. Price: $51.99 |
| 10 |
532416963 |
COVER.DRIVE.REAR.21.HV.GRAY This part replaces 532190565. Price: $25.11 |
| 11 |
532194188 |
SCREW This part replaces 532184571. Price: $2.99 |
| 12 |
812000012 |
Ring, Retaining Price: $2.99 |
| 13 |
532194186 |
SCREW.1/4-20X21/4.HEX. This part replaces 532183450. Price: $2.99 |
| 14 |
532187120 |
Bearing / Axle Support Price: $28.99 |
| 16 |
539976978 |
NUT.1/4C.NYLOC This part replaces 532132004. Price: $1.49 |
| 17 |
532408005 |
BRACKET, GEAR CASE / DRIVE This part replaces 532187093. Price: $11.99 |
| 18 |
817541011 |
Screw Price: Call Us |
| 19 |
532194128 |
Pulley, Drive This part replaces 532184749. Price: $11.99 |
| 20 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $2.69 |
| 21 |
532188611 |
Bolt, Idler Price: $2.99 |
| 22 |
532195326 |
KIT.PULLEY.IDLER. This part replaces 532184543. Price: $19.99 |
| 23 |
532197480 |
O-Ring This part replaces 532188152. Price: $3.99 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49 |
| 25 |
873930500 |
Nut, Hex, Lock Price: $3.99 |
| 26 |
532195327 |
KIT.PULLEY.IDLER.HI-VAC. This part replaces 532187098. Price: $4.99 |
| 27 |
532166043 |
Pulley, Idler Price: $17.99 |
| 28 |
532160829 |
Bolt, Hex Head, Shoulder Price: $3.99 |
| 29 |
817060410 |
Screw 1/4-20 x 1/16 Price: $3.99 |
| 30 |
532183457 |
Cover, Dust, Wheel Price: $3.99 |
| 31 |
532088348 |
Washer, Flat 3/8 Price: $3.99 |
| 32 |
532192622 |
Wheel Assembly, Rear 9 x 2-1/4 This part replaces 532188631. Price: $38.99 |
| 33 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $2.69 |
| 34 |
532183442 |
HUBCAP.WHEEL.5.SPOKE.SILVER This part replaces 532183695. Price: $3.99 |
| 35 |
532185994 |
Knob Price: $11.99 |
| 36 |
532188291 |
Spring, Torsion Price: $2.99 |
| 37 |
532175098 |
Pawl Price: $2.99 |
| 38 |
812000058 |
E-Ring Price: $1.99 |
| 39 |
532175103 |
Gear Price: $8.99 |
| 40 |
532175105 |
Retainer, Drive, LH Price: $5.99 |
| 41 |
532175104 |
Disc, Drive Price: $3.99 |
| 42 |
532184172 |
Seal, Friction Price: $3.99 |
| 43 |
532188508 |
LEVER, SELECTOR, HEIGHT, REAR This part replaces 532190520. Price: $6.99 |
| 44 |
532188509 |
SPRING.SELECTOR.FRONT This part replaces 532190518. Price: $4.99 |
| 45 |
532163409 |
Screw Price: $3.99 |
| 46 |
532192232 |
Wheel Assembly, Front 9 x 2-1/4 This part replaces 532184369. Price: $32.99 |
| 47 |
532183438 |
Bushing, Front Axle Price: $3.49 |
| 48 |
532169675 |
Retainer, Hairpin Cotter Price: $3.99 |
| 49 |
532192431 |
SHAFT.ASM.FRONT.TORQUE This part replaces 532187089. Price: $34.99 |
| 50 |
532183688 |
Belt, Drive Price: $11.99 |
| 51 |
532414860 |
KIT PINION ASM This part replaces 532188331. Price: $50.99 |
| 52 |
532175102 |
Retainer, Drive, RH Price: $3.99 |
| 53 |
532192138 |
AXLE.ASM.REAR.TORQUE.BZP This part replaces 532187091. Price: $27.99 |
| 54 |
532414860 |
KIT PINION ASM This part replaces 532188330. Price: $50.99 |
| 55 |
532189074 |
Decal, Drive Control Price: $5.99 |
| 56 |
532185913 |
Decal, Drive Control Adjustment (bottom) Price: $5.99 |
