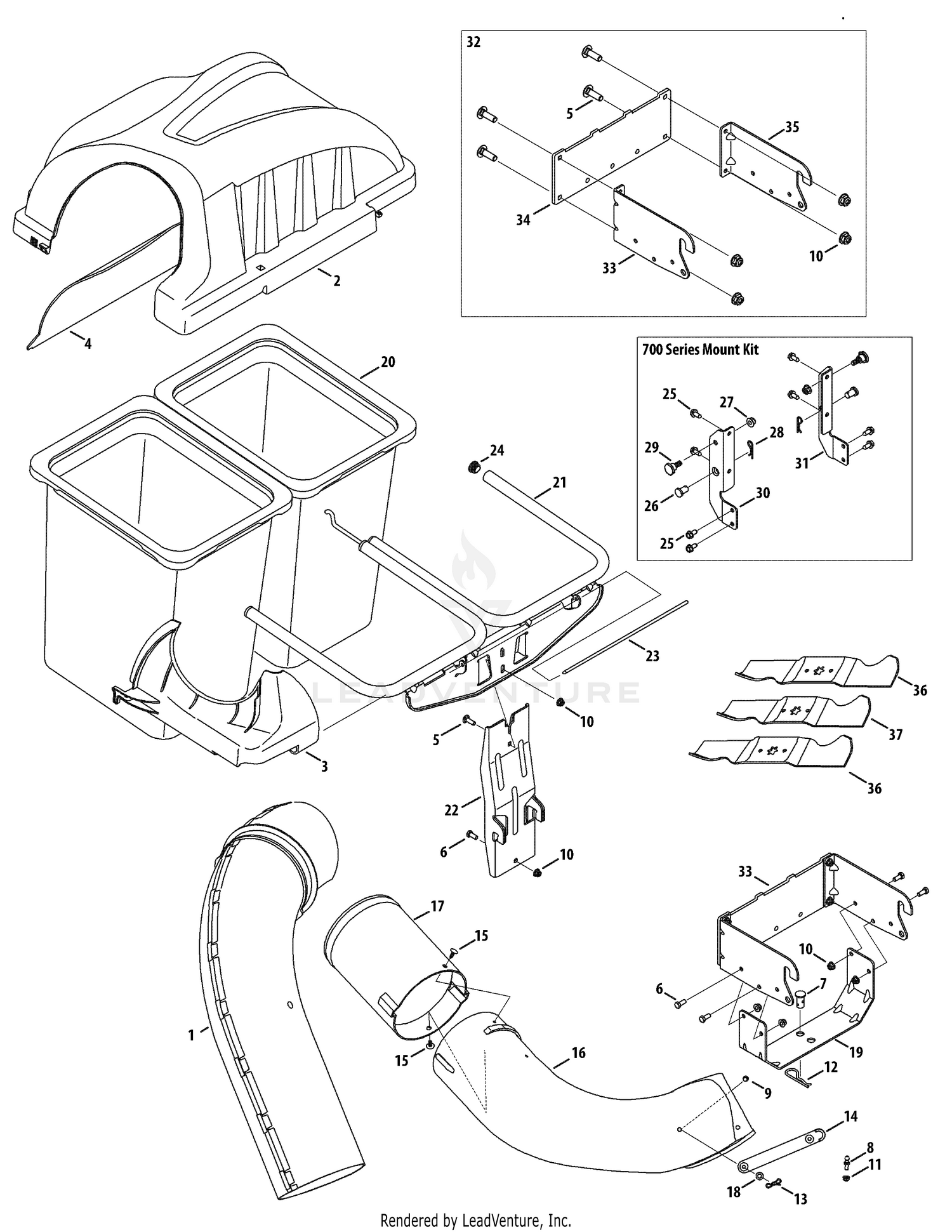

| Ref | Part Number | Description |
|---|
| 1 |
931-04291A |
UPPER CHUTE ASSEMBLY This part replaces 931-04291. Price: $106.94 |
| 2 |
931-04292 |
Double Bagger Cover Assembly Price: $129.14 |
| 3 |
731-06497 |
Upper Chute Support Price: $31.91 |
| 4 |
731-06504 |
Bagger Cover Screen Price: $15.49 |
| 5 |
710-0276 |
Carriage Screw, 5/16-18 x 1.00" Price: $3.68 |
| 6 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 7 |
711-0309A |
Clevis Pin, .62" Dia. Price: $11.31 |
| 8 |
911-04069 |
Grass-catcher Pin, 1/4-20 Price: $7.81 |
| 9 |
711-05063 |
Clevis Pin, 5/16 x .75 Lg. Price: $3.21 |
| 10 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 11 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 12 |
714-0117 |
Internal Cotter Pin, .148 x 3.00 Price: $3.85 |
| 13 |
714-04040 |
Bow-Tie Cotter Pin, 72 Price: $1.28 |
| 14 |
723-04008A |
Chute Strap, 6.00 Lg. Price: $8.86 |
| 15 |
726-3046 |
Ratchet Clip, .250 Price: $3.71 |
| 16 |
931-04159A |
Discharge Chute Elbow, 46" Deck Price: $99.63 |
| 17 |
731-06611 |
Bagger Chute Adapter, 7 In. Price: $41.17 |
| 18 |
736-0204 |
Flat Washer, .344 x .62 x .033 Price: $3.89 |
| 19 |
783-05887-0637 |
Universal Bracket Support, RT-99/LT-5 Price: $47.34 |
| 20 |
964-05104 |
GRASSBAG ASSEMBLY W/ HARD BOTTOM (STD) This part replaces 964-04096. Price: $83.90 |
| 21 |
683-04461B-0637 |
DOUBLE BAGGER SUPPORT (POWDER BLACK) This part replaces 683-04461. Price: $182.57 |
| 22 |
683-04519B-0637 |
Vertical Support Bracket This part replaces 683-04519. Price: $125.78 |
| 23 |
711-04988 |
Cover Hinge Pin Price: $11.08 |
| 24 |
735-0246A |
End Plug Price: $5.01 |
| 25 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 26 |
710-0216 |
Clevis Pin, .50 x .78 Lg. Price: $3.93 |
| 27 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 28 |
714-0145 |
Click Pin This part replaces 914-0145. Price: $4.42 |
| 29 |
738-04267 |
Shoulder Screw, .625 x .412 Price: $4.77 |
| 30 |
783-05889A-0637 |
BRACKET (RH) This part replaces 783-05889. Price: $21.77 |
| 31 |
783-05890A-0637 |
BRACKET (LH) This part replaces 783-05890. Price: $21.77 |
| 32 |
689-00101 |
Hitch Bracket Assembly Price: $102.97 |
