| Ref | Part Number | Description |
|---|
| 1 |
618-07208A |

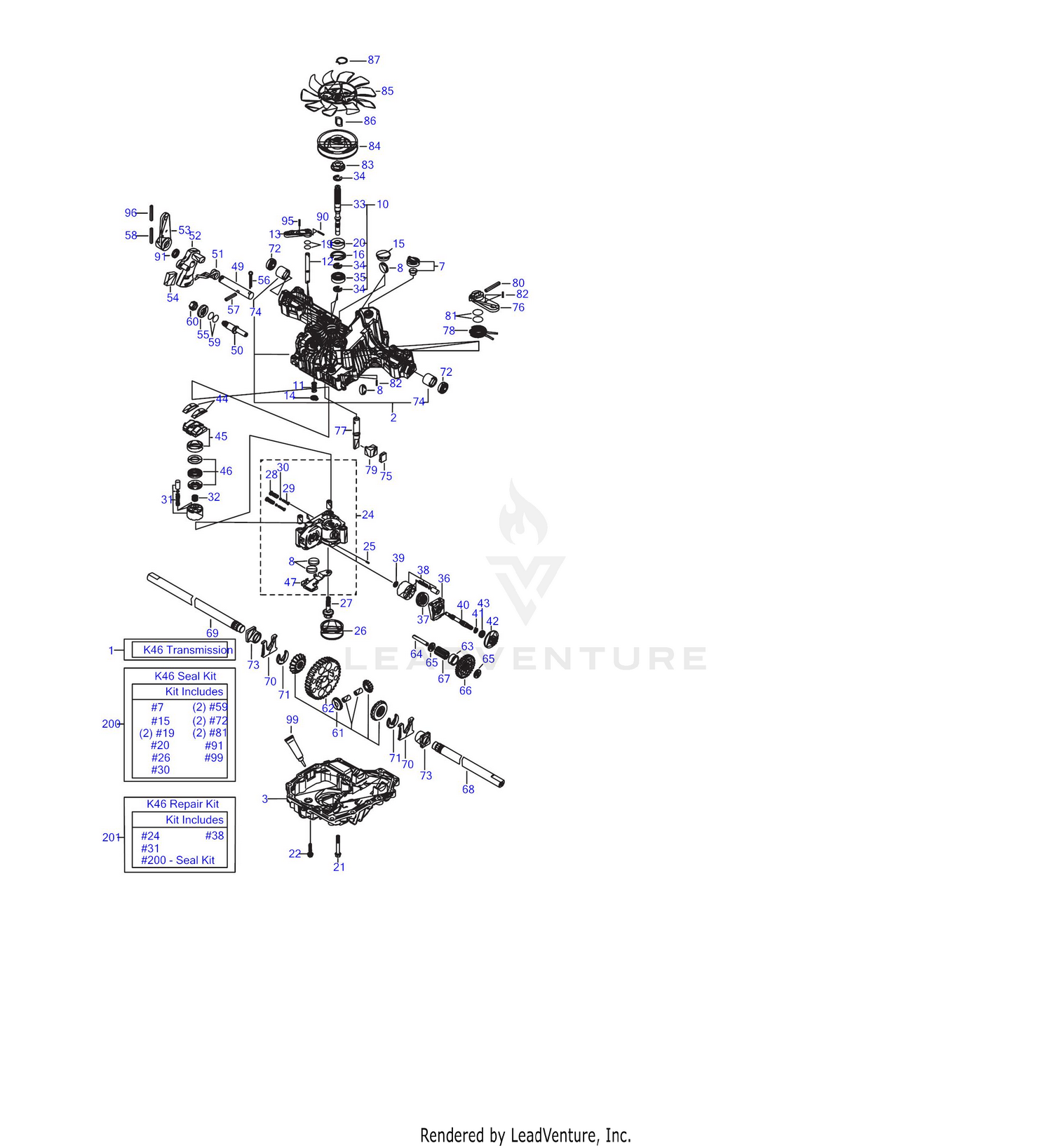

TRANSMISSION ASSEMBLY This part replaces 918-07208. Price: $977.07 |
| 3 |
TT-1A646084240 |
LOWER HOUSING This part replaces TT-1A646084181. Price: $64.50 |
| 7 |
TT-168T2024250 |
Vent Valve Price: $25.34 |
| 8 |
TT-19216324360 |
Magnet Price: $2.70 |
| 10 |
TT-1A646099950 |
Pump Shaft/Bearing Kit Price: $47.06 |
| 11 |
TT-19215427281 |
Spring 25 Price: $2.29 |
| 12 |
TT-1A646029510 |
Bypass Shaft A Price: $23.67 |
| 13 |
TT-1A632029520 |
Bypass Lever Price: $6.06 |
| 14 |
TT-22242000100 |
SNAP RING Price: $0.35 |
| 15 |
TT-187T0136300 |
SEALING CAP, STEEL This part replaces TT-168T2036300. Price: $6.24 |
| 16 |
TT-22252000350 |
Snap Ring C 35 Price: $2.29 |
| 19 |
TT-24311240100 |
O-Ring 1A P10A Price: $2.29 |
| 21 |
TT-26476080552 |
Tapping Screw 8 x 55 Price: $1.56 |
| 22 |
TT-26476080302 |
Tapping Screw 8 x 30 Price: $2.92 |
| 24 |
TT-1A646099070 |
Kit, Center Case Price: $255.98 |
| 25 |
TT-19216824760 |
Pin 3 x 9.8 Price: $2.29 |
| 26 |
TT-187Q1625221 |
FILTER 105 This part replaces TT-168T2025220. Price: $13.79 |
| 27 |
TT-168T2099990 |
Bolt 10 x 75 Price: $2.16 |
| 28 |
TT-1A646024800 |
IDS Valve 1.2 Price: $9.16 |
| 29 |
TT-1A646024761 |
SPRING-IDS Not Available Price: |
| 30 |
TT-1A646024790 |
FILTER-IDS 300 Not Available Price: |
| 31 |
TT-168T2025090 |
Kit, Cylinder Block (Pump) Price: $108.31 |
| 32 |
TT-1A646025200 |
Spring Price: $1.58 |
| 33 |
TT-1A646025251 |
Pump Shaft Price: $39.95 |
| 34 |
TT-22272000120 |
E-RING Price: $2.29 |
| 35 |
TT-1A646034790 |
BALL BEARING This part replaces TT-1A646034770. Price: $8.26 |
| 36 |
TT-19216824210 |
Motor Housing Price: $11.63 |
| 37 |
TT-1A646034750 |
Thrust Bearing 51106 Price: $29.92 |
| 38 |
TT-168T2025080 |
Kit, Cylinder Block Price: $149.14 |
| 39 |
TT-19216825230 |
Washer 12 x 24 x 1 Price: $2.29 |
| 40 |
TT-1A646025271 |
Motor Shaft Price: $24.30 |
| 41 |
TT-19215425310 |
Snap Ring S15 Price: $0.54 |
| 42 |
TT-1A646085250 |
Brake Disc/Motor Gear Price: $13.50 |
| 43 |
TT-1A646034780 |
BALL BEARING This part replaces TT-1A646034760. Price: $8.61 |
| 44 |
TT-187T0027060 |
Thrust, Plastic Price: $2.29 |
| 45 |
TT-168T2084570 |
Swash Plate Clamp Price: $27.30 |
| 46 |
TT-19216399000 |
Kit, Thrust Bearing (Pump) Price: $42.14 |
| 47 |
TT-1A646029010 |
Magnet Holder Price: $3.43 |
| 49 |
TT-1A646029911 |
Control Shaft Price: $14.96 |
| 50 |
TT-168T2029920 |
Fulcrum Price: $21.91 |
| 51 |
TT-168T2029800 |
Torsion Spring, Standard Price: $11.70 |
| 52 |
TT-1A646029740 |
Control Lever Price: $38.90 |
| 53 |
TT-1A646029400 |
Control Lever F Price: $10.72 |
| 54 |
TT-168T2029360 |
Jerky Plate Price: $3.93 |
| 55 |
TT-22137120000 |
Washer 12 Price: $1.96 |
| 56 |
TT-1A646029940 |
Cotter Pin 1/8" x 3/4" Price: $1.47 |
| 57 |
TT-22351060036 |
Spring Pin 6 x 36 Price: $0.78 |
| 58 |
TT-22351060040 |
Roll Pin 6 x 40 Price: $2.29 |
| 59 |
TT-24311000140 |
O-Ring P14 Price: $1.97 |
| 60 |
TT-26776120002 |
Nut 12 Price: $1.97 |
| 61 |
TT-1A646031570 |
Diff Gear Kit Price: $47.91 |
| 62 |
TT-1A646033520 |
Final Gear (54T) Price: $66.06 |
| 63 |
TT-1A646033250 |
Final Pinion Collar Price: $2.95 |
| 64 |
TT-1A646033410 |
Reduction Shaft Price: $9.74 |
| 65 |
TT-19216833420 |
Washer 12 x 32 x 3.2 Price: $1.69 |
| 66 |
TT-1A646085240 |
Reduction Gear (38T) Price: $17.27 |
| 67 |
TT-168T2033540 |
Final Pinion Gear (10T) Price: $15.60 |
| 68 |
TT-1A646034370 |
Axle Shaft, Left Price: $39.07 |
| 69 |
TT-1A646034380 |
Axle Shaft, Right Price: $49.33 |
| 70 |
TT-19216334261 |
Thrust Washer Price: $7.90 |
| 71 |
TT-19216834270 |
Ring 17 Price: $2.29 |
| 72 |
TT-187T0134280 |
Seal 19 x 32 x 8 This part replaces TT-19216334280. Price: $9.74 |
| 73 |
TT-19216834350 |
Bushing 19 x 25 Price: $2.29 |
| 74 |
TT-1A646034500 |
AXLE BUSHING This part replaces TT-168T2034240. Price: $3.05 |
| 75 |
TT-1A646036121 |
Brake Shoe Price: $2.29 |
| 76 |
TT-1A646036160 |
Brake Lever Price: $6.30 |
| 77 |
TT-1A646036171 |
Brake Shaft Price: $32.49 |
| 78 |
TT-168T2036180 |
Brake Return Spring Price: $3.95 |
| 79 |
TT-1A646036200 |
Brake Actuator Price: $2.15 |
| 80 |
TT-22351050032 |
Spring Pin 5 x 32 Price: $2.29 |
| 81 |
TT-24311000120 |
O-Ring 1A P12 Price: $2.29 |
| 82 |
TT-22351040016 |
Spring Pin 4 x 16 Price: $1.97 |
| 83 |
TT-1A646025300 |
Spline Collar Price: $2.52 |
| 84 |
TT-1A646025760 |
Pulley B Price: $20.39 |
| 85 |
TT-1A646083070 |
Fan, Black Price: $19.81 |
| 86 |
TT-1A646083060 |
Wave Washer Price: $2.29 |
| 87 |
TT-19215489090 |
Snap Ring Price: $2.29 |
| 90 |
TT-22351030020 |
Spring Pin 3.0A x 20 Price: $2.29 |
| 91 |
TT-1A646024440 |
Oil Seal 16 x 22 x .03 Price: $3.37 |
| 95 |
TT-22351030016 |
Spring Pin 3.0A x 16 Price: $2.29 |
| 96 |
TT-22351035040 |
Roll Pin 3.5 x 40 Price: $2.29 |
| 200 |
TT-1A646098240 |
SEAL KIT This part replaces TT-1A646099141. Price: $91.12 |
