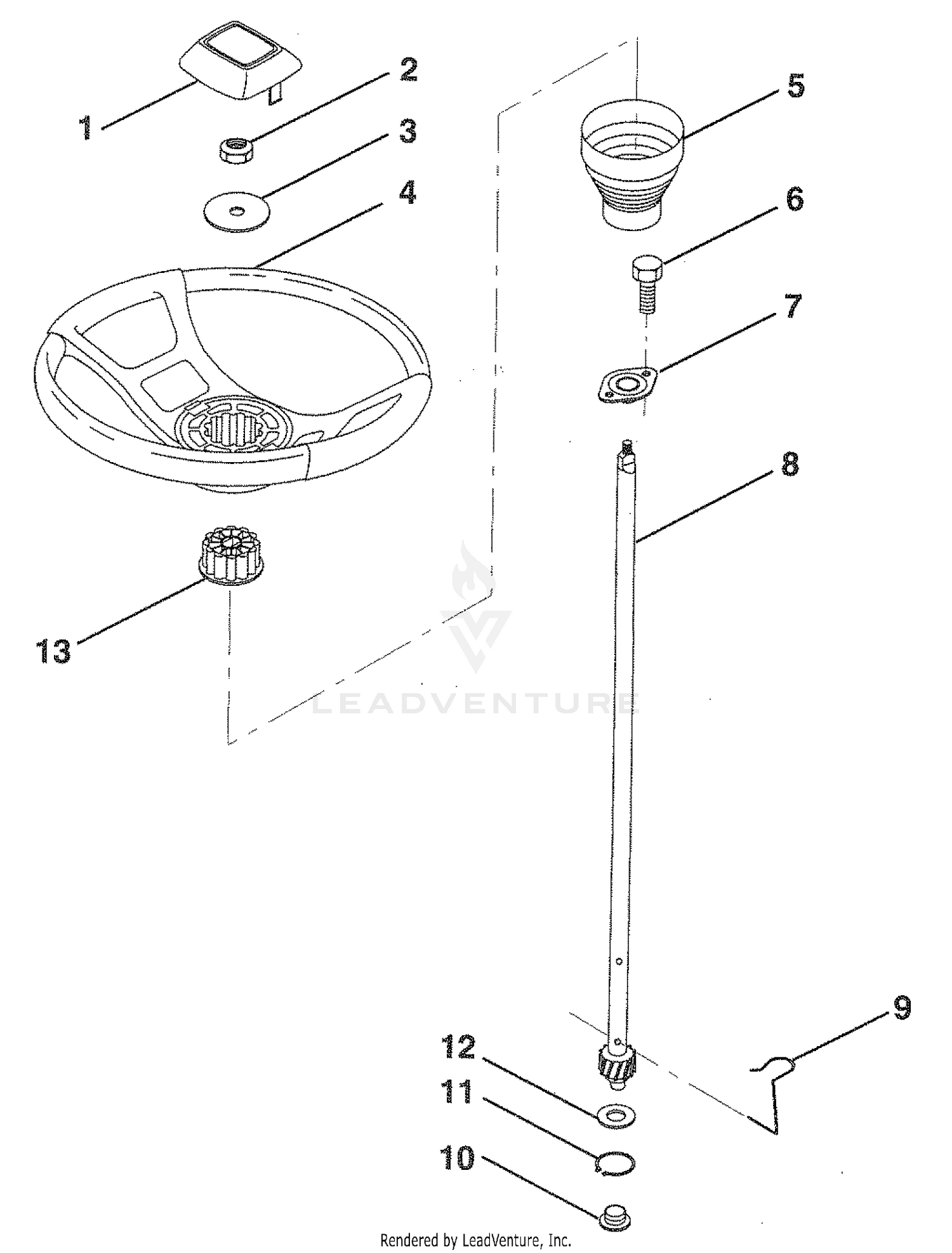

| Ref | Part Number | Description |
|---|
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 1 |
532124416 |
INSERT,STR WHEEL Price: $7.89 |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 2 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 3 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 4 |
532124415 |
STEERING WHEEL Price: $58.99 |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
532127396 |
STEERING SLEEVE Price: $2.66 |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 6 |
817211008 |
Screw Slftp #10-16 x 1/2 Ty-Ab This part replaces 817431008. Price: $3.99 |
| 7 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $6.99 |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
532148966 |
KIT.SERVICE.SHAFT.STEERING.LR This part replaces 532123651. Price: $119.99 |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 9 |
532124210 |
STEERING CLIP Price: $4.99 |
| 10 |
532123438 |
BUSHING STEER LWR Price: $5.99 |
| 10 |
93-6699 |
DECAL-FAST / SLOW Price: $18.07 |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 11 |
812000045 |
RING Price: $5.99 |
| 12 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 16 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 25 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 28 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 29 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 31 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 32 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 34 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 35 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 36 |
92-7531-03 |
TUBE-PUMP CONTROL Price: $139.90 |
| 37 |
3220-3 |
NUT-HJ Price: $0.28 |
| 38 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
323-9 |
SCREW-HH Price: $1.29 |
| 41 |
5-0652 |
SPACER Price: $5.35 |
| 42 |
323-29 |
SCREW-HH Price: $0.42 |
| 43 |
60-5700 |
SPRING Price: $27.02 |
| 44 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 45 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 46 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 47 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 48 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 49 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 51 |
3290-378 |
TIE-CABLE Price: $0.79 |
