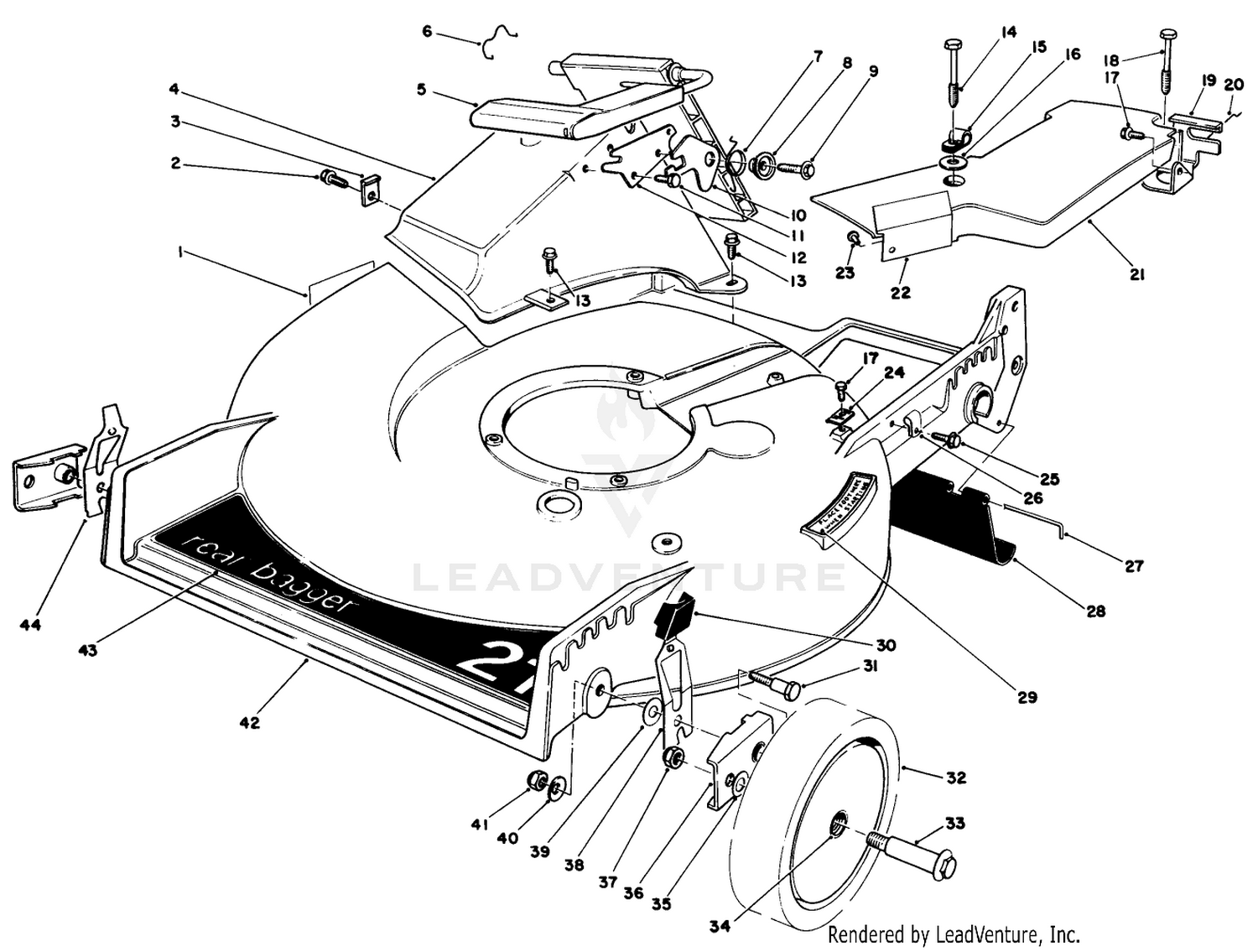

| Ref | Part Number | Description |
|---|
| 1 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 2 |
12-3270 |
SCREW Price: $3.09 |
| 3 |
47-6540 |
DISCONTINUED Price: Call Us |
| 4 |
82-9151 |
TUNNEL-DISCHARGE This part replaces 46-3500. Price: $109.15 |
| 5 |
77-0200 |
DOOR ASSEMBLY This part replaces 51-0200. Price: Call Us |
| 6 |
47-5840 |
DOOR RET SPRING Price: $4.30 |
| 7 |
33-4860 |
TORSION SPRING Price: $40.42 |
| 8 |
43-4840 |
DOOR SPACER Price: $4.83 |
| 9 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 10 |
42-4010 |
SAFETY LATCH Price: Call Us |
| 11 |
46-8090 |
SCREW-PLASTITE Price: $1.84 |
| 12 |
23-1040 |
DOOR LATCH PLATE Price: $16.08 |
| 13 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 14 |
37-7262 |
SCREW-SPECIAL Price: $2.05 |
| 15 |
2412-87 |
CLAMP-CABLE Price: $2.89 |
| 16 |
3-5792 |
WASHER Price: $5.59 |
| 17 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 18 |
37-7260 |
SCREW-HHFTF Price: $3.64 |
| 19 |
82-5680-03 |
BRACKET-TRACTION, ADJ. This part replaces 46-5870. Price: $7.85 |
| 20 |
46-7030 |
RETAINER-CABLE Price: $3.83 |
| 21 |
52-7404 |
BELT COVER ASM This part replaces 52-7400. Price: $47.72 |
| 22 |
38-8730 |
DISCONTINUED Price: Call Us |
| 23 |
3295-35 |
RIVET-HEAD, FLAT Price: $1.31 |
| 24 |
62-3720 |
CLAMP-CABLE This part replaces 46-5610. Price: $1.31 |
| 25 |
12-5450 |
SCREW Price: $7.99 |
| 26 |
2412-83 |
CLAMP-CABLE Price: $9.85 |
| 27 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 28 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 29 |
46-7370 |
STEP PAD DECAL Price: $14.39 |
| 30 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 31 |
44-5270 |
PIVOT SCREW Price: $6.55 |
| 32 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $21.88 |
| 33 |
27-6231 |
WHEEL BOLT Price: $3.28 |
| 34 |
27-6250 |
BUSHING Price: $2.17 |
| 35 |
40-1940 |
WASHER Price: $1.59 |
| 36 |
47-2940 |
HP PIVOT ARM ASM Price: $34.07 |
| 37 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 38 |
52-7480 |
DISCONTINUED Price: Call Us |
| 39 |
5-4460 |
WASHER-PIVOT Price: $6.19 |
| 40 |
3290-456 |
WASHER-BELLEVILLE Price: $2.59 |
| 41 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 42 |
11-4099 |
DISCONTINUED Price: Call Us |
| 43 |
44-0450 |
DISCONTINUED Price: Call Us |
