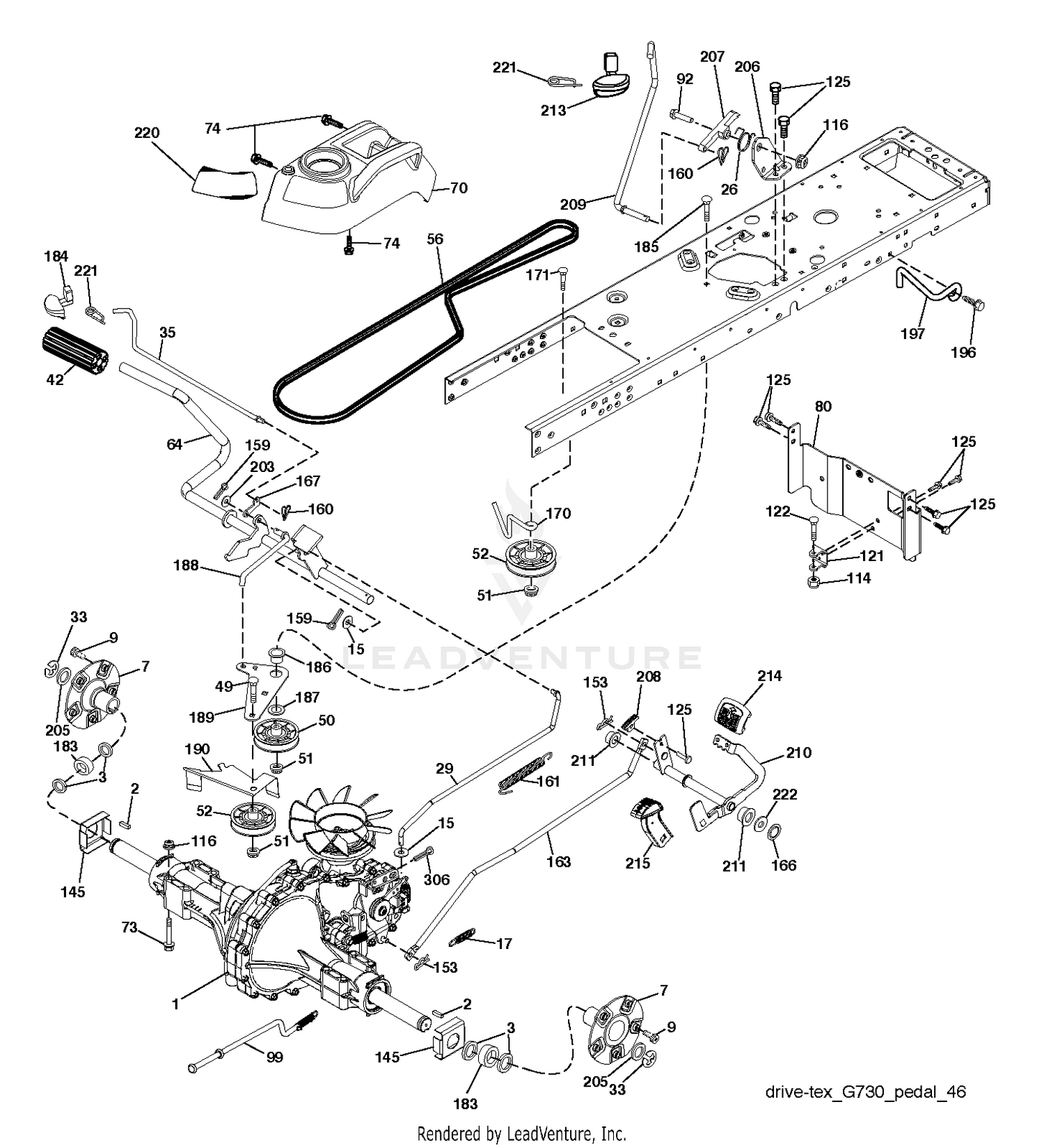

| Ref | Part Number | Description |
|---|
| 1 |
120-2072 |
HYD MOTOR ASM This part replaces 112-9200. Price: $646.57 |
| 2 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 2 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 3 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 4 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 6 |
117-0174-03 |
BRACKET-BULKHEAD Price: $43.53 |
| 7 |
32144-57 |
SCREW Price: $1.04 |
| 7 |
586935402 |
HUB.PNT.GT.PM.1IN.AXLE.E-DIP Price: $54.99 |
| 8 |
105-3048 |
WASHER-FLAT Price: $0.89 |
| 9 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
99-8611 |
SPACER Price: $5.71 |
| 11 |
114-8887 |
TUBE ASM Price: $100.66 |
| 12 |
2412-113 |
CLAMP-R Price: $0.75 |
| 13 |
117-0142 |
TUBE ASM Price: $136.47 |
| 14 |
340-78 |
NUT-LOCK Price: $1.63 |
| 15 |
117-0140 |
TUBE ASM Price: $100.52 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 17 |
117-0141 |
TUBE ASM Price: $127.80 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 18 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 19 |
94-5780 |
SCREW-HWH Price: $7.49 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 22 |
3334-945 |
TIE-CABLE Price: $0.43 |
| 23 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 24 |
114-0633 |
HOSE-HYD Price: $149.34 |
| 25 |
117-5190 |
HOSE-HYD Price: $171.44 |
| 26 |
106-3671 |
HOSE-HYD Price: $112.38 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
117-5188 |
HOSE-HYD Price: $192.82 |
| 28 |
106-3680 |
HOSE-HYD Price: $73.67 |
| 29 |
114-0633 |
HOSE-HYD Price: $149.34 |
| 29 |
532418186 |
ROD BRAKE Price: $29.99 |
| 30 |
98-4590 |
HOSE-HYD Price: $76.24 |
| 33 |
139-5996 |
HOSE GUIDE ASM-LH This part replaces 119-3921. Price: $32.43 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 34 |
139-5995 |
GUIDE-HOSE, RH This part replaces 119-3920. Price: $32.43 |
| 35 |
117-0177 |
TUBE ASM Price: $127.80 |
| 35 |
590605902 |
ROD ROD.PARKINGBRAKE.GT.HUSQ/P Price: $7.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532418184 |
STRAP.TORQUE.YT.G700 Price: $27.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
590640201 |
ROD ASSY BYPASS G730 Price: $6.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872110520 |
Bolt RDHDSQ 5/16-18 Unc x 2-1/2 Price: Call Us |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
501051501 |
SPACER.SPLIT.1.000ID X 1.500 Price: $2.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop This part replaces 585658601. Price: $4.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 205 |
532123800 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 587031401. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
590527802 |
ROD ROD.CRUISECONTROL.GT.HUSQ/ Price: $6.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 306 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
