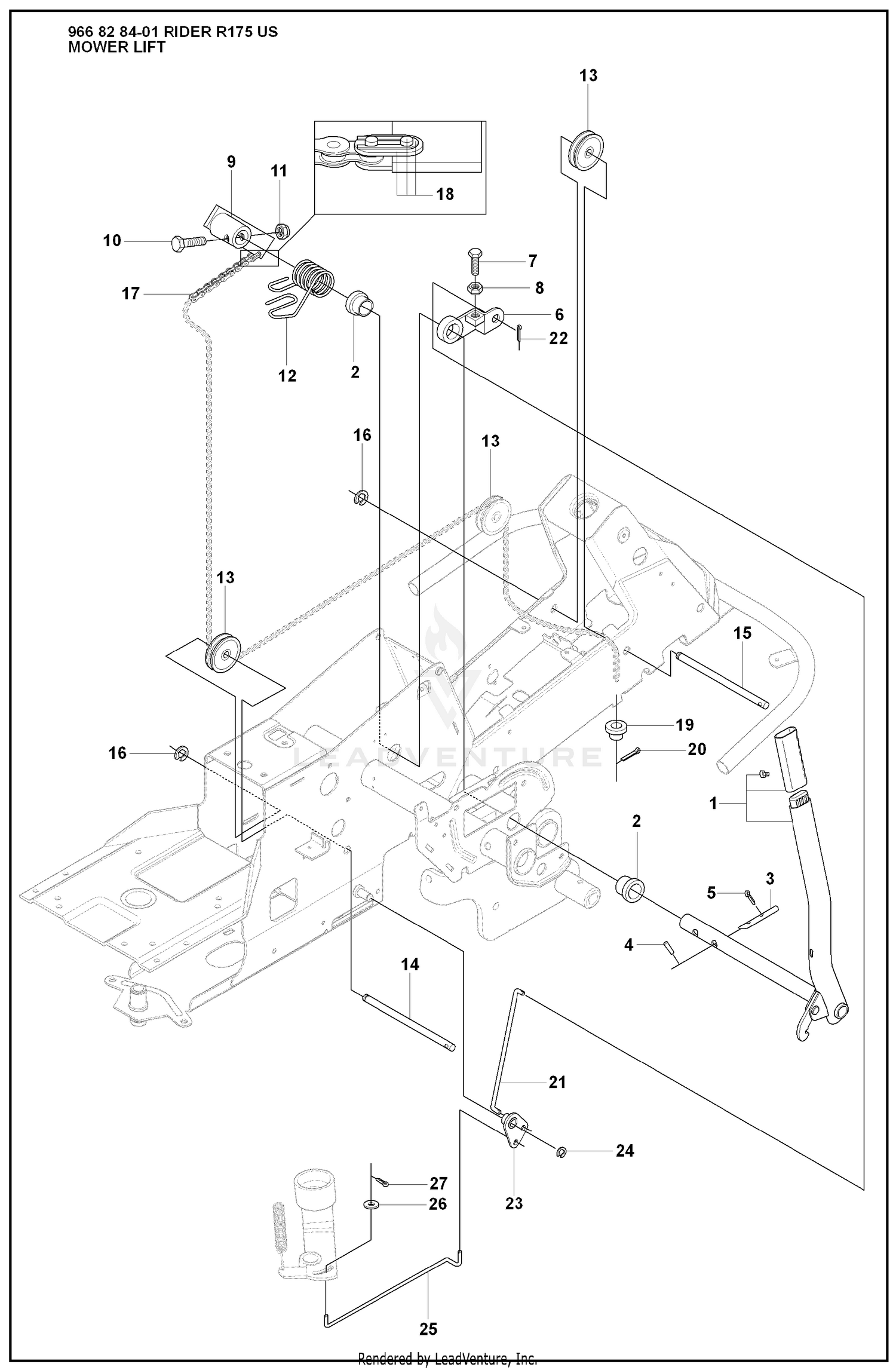

Mower Lift
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 4 | 721125930 | PIN Price: $2.99 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 506905401 | Lever Price: $47.37 |
| 010 | 98-9661 | CONTROL PLATE ASM Price: $167.65 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 18 | 506554701 | LINK Price: $4.99 |
| 19 | 506905901 | BUSHING Price: $20.99 |
| 020 | 98-9662 | LEVER-CONTROL, SPEED Price: $72.44 |
| 20 | 721618701 | COTTER PIN Price: $3.99 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 544378601 | LINK Price: $7.99 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 030 | 98-9572 | LEVER-CONTROL, SPEED Price: $47.15 |
| 040 | 105-3788 | O-RING Price: $2.90 |
| 050 | 98-7602 | PIN-SPRING Price: $0.64 |
| 060 | 98-9594 | WASHER-PLAIN Price: $2.49 |
| 070 | 98-9589 | NUT Price: $1.46 |
| 080 | 98-9658 | GOVERNOR LEVER ASM Price: $34.84 |
| 090 | 98-9663 | LEVER-STOP, ENGINE Price: $13.34 |
| 100 | 98-7601 | SEAL-OIL Price: $7.88 |
| 110 | 98-9472 | SPRING-RETURN Price: $8.91 |
| 120 | 98-9664 | SHAFT-LEVER, STOP Price: $33.92 |
| 130 | 98-9637 | GASKET Price: $3.98 |
| 140 | 98-7692 | BOLT Price: $0.92 |
| 150 | 105-3710 | STUD Price: $1.16 |
| 160 | 98-7572 | NUT Price: $0.32 |
| 170 | 98-7699 | WASHER-SPRING Price: $0.44 |
| 180 | 99-8348 | BOLT Price: $0.24 |
