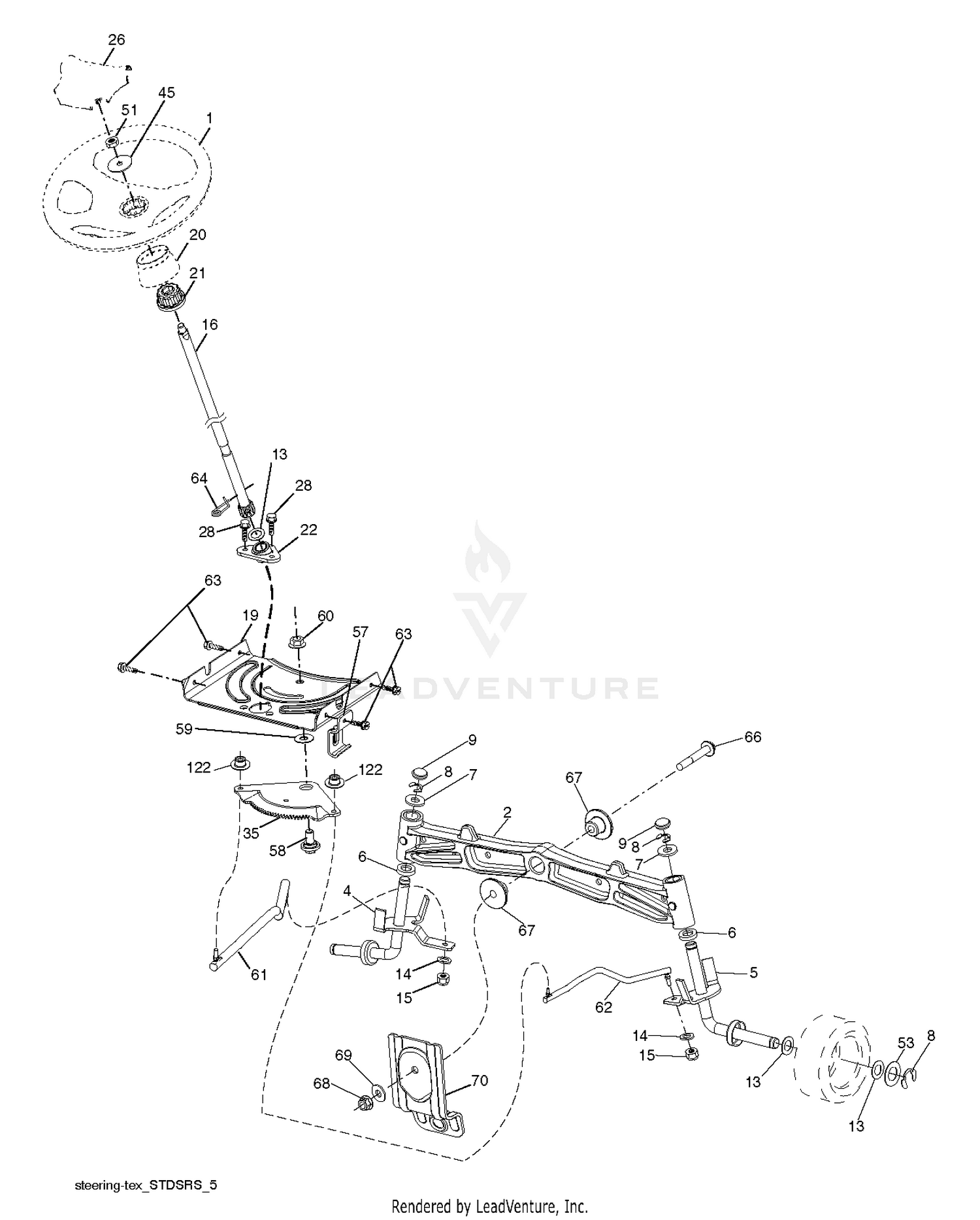

| Ref | Part Number | Description |
|---|
| 1 |
108-2928-01 |
BOX ASM Price: $1,031.60 |
| 1 |
532424551 |
WHEEL.STEERING.MLT.BR.YEL/OVRM Price: $64.99 |
| 2 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $99.99 |
| 3 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 4 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 5 |
110-1376 |
PIVOT PIN ASM Price: $30.46 |
| 6 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
144-7097 |
TINE-SCARIFIER This part replaces 110-0259-03. Price: $55.22 |
| 7 |
532121748 |
WASHER Price: $1.99 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
283-60 |
PIN-CLEVIS Price: $6.45 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $1.99 |
| 10 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 11 |
23-2790-01 |
BLADE-SCRAPER Price: $323.46 |
| 12 |
110-1395-03 |
TOOL BAR ASM Price: $548.35 |
| 13 |
532121749 |
WASHER Price: $1.99 |
| 14 |
23-2770 |
ROD-ACTUATING Price: $97.95 |
| 14 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 15 |
23-2740 |
PIN-ACTUATING Price: $94.46 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.99 |
| 16 |
108-2288-01 |
SUPPORT-SPRING Price: $45.53 |
| 16 |
532194746 |
SHAFT.STEER.STEALTH.DD This part replaces 532408219. Price: $59.99 |
| 17 |
20-9420-01 |
COMP SPRING Price: $106.49 |
| 18 |
112-1400 |
PIVOT ASM Price: $241.88 |
| 19 |
3256-7 |
WASHER-FLAT Price: $0.75 |
| 19 |
532194729 |
PLATE.STEER.DDL.NLT/NG Price: $12.99 |
| 20 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 20 |
532432784 |
BOOT, STEERING Price: $4.99 |
| 21 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 21 |
62-7400 |
DECAL Price: $24.54 |
| 22 |
323-6 |
SCREW-HH Price: $0.66 |
| 22 |
532420537 |
STEERING.SUPT.LOWER. Price: $4.99 |
| 26 |
532424553 |
CAP.WHL.STRNG.MULTI.BRND.YEL Price: $5.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $19.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8""OD Price: $3.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 57 |
532197246 |
BRKT.UPSTOP.GT/LT.TEX Price: $8.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $4.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $3.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $2.99 |
| 67 |
532194737 |
BUSHING.PM.FRONT AXLE Price: $3.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $2.99 |
| 70 |
585338801 |
BRACKET.FRT.DECK.SUSP.RR.MT431 This part replaces 532196197. Price: $5.99 |
