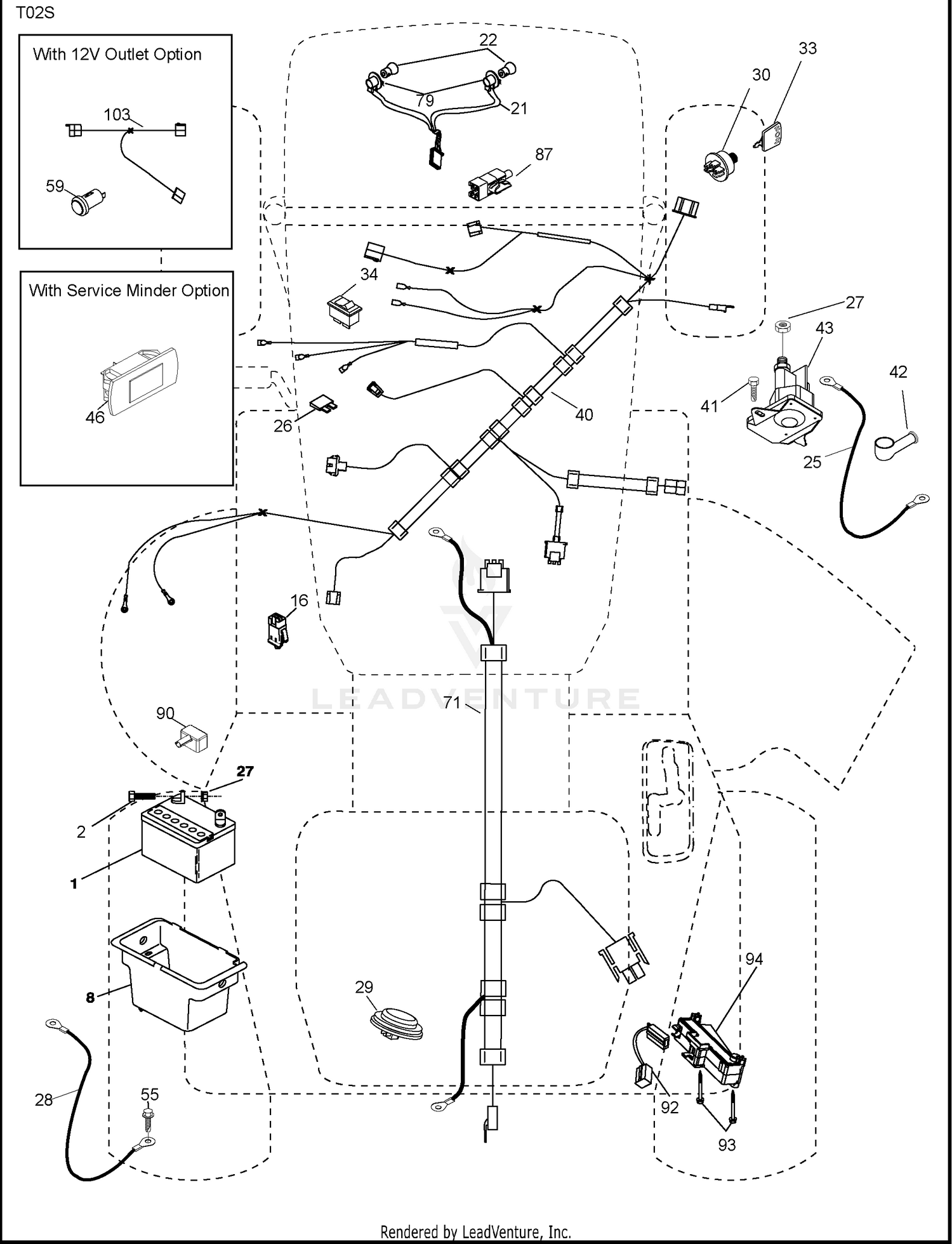

| Ref | Part Number | Description |
|---|
| 1 |
163465 |
Battery Price: Call Us |
| 1 |
32151-100 |
RING-RETAINING Price: $4.41 |
| 2 |
69-8910 |
WASHER Price: $1.70 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20 unc x 3/4 Price: Call Us |
| 3 |
82-7850 |
SPRING-COMPRESSION Price: $12.29 |
| 4 |
354-104 |
RING-BACK UP Price: $2.24 |
| 5 |
237-175 |
O-RING Price: $4.39 |
| 6 |
82-7840 |
PISTON-BRAKE Price: $220.21 |
| 7 |
237-174 |
O-RING Price: $4.01 |
| 8 |
193228 |
Box Battery Price: Call Us |
| 8 |
354-105 |
RING-BACK UP Price: $3.12 |
| 9 |
21-2070-03 |
END-YOKE Price: $40.78 |
| 10 |
105-0605 |
HOUSING-LH Price: $573.76 |
| 10 |
105-0606 |
HOUSING-RH Price: $555.70 |
| 11 |
82-7830 |
SCREW-BLEEDER, BRAKE Price: $21.68 |
| 12 |
82-7820 |
SEAT-TUBE, BRAKE Price: $6.91 |
| 13 |
321-2 |
SCREW-HH Price: $2.79 |
| 14 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 15 |
71-3850-03 |
COVER-ACTUATOR, BRAKE Price: $13.99 |
| 16 |
176138 |
Switch Interlock Price: Call Us |
| 16 |
71-3870 |
GASKET Price: $12.51 |
| 17 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 18 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 19 |
32128-25 |
NUT-HF Price: $3.19 |
| 20 |
71-3830-03 |
BELLCRANK-BRAKE Price: $82.63 |
| 21 |
183759 |
Harness Socket Light Price: Call Us |
| 21 |
71-3900 |
GASKET Price: $17.82 |
| 22 |
4152J |
Bulb, Light #1156 Price: Call Us |
| 23 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 24 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 25 |
401662 |
Cable Battery 6 Ga. Red 14.5 Price: Call Us |
| 25 |
71-3860 |
CLEVIS Price: $16.88 |
| 26 |
175158 |
Fuse Price: Call Us |
| 26 |
69-0030 |
SPRING-COMPRESSION Price: $21.80 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
198885 |
Cable Ground 18" Rear Battery Blk 6 Ga. Price: Call Us |
| 28 |
283-15 |
PIN-CLEVIS Price: $4.07 |
| 29 |
12-8900 |
BOLT-SHOULDER, HH Price: $22.27 |
| 29 |
401545 |
Switch Seat Price: Call Us |
| 30 |
193350 |
Switch Ign Price: Call Us |
| 30 |
93-7417 |
GASKET Price: $5.86 |
| 31 |
71-3910 |
COLLAR Price: $35.77 |
| 32 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 33 |
140401 |
Key Ign Molded Generic Price: Call Us |
| 33 |
93-7418 |
CAP-ACTUATOR, BRAKE Price: $28.84 |
| 34 |
110712X |
Switch Light/Reset Price: Call Us |
| 40 |
401098 |
Harness Ign Price: Call Us |
| 41 |
17720408 |
Screw 1/4-20 unc x 1/2 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 55 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 71 |
400449 |
Harness Ign. Chass. Price: Call Us |
| 79 |
175242 |
Socket Asm Bulb Twistlock Price: Call Us |
| 87 |
197802 |
Switch Intrlck Clutch Cable Tx Price: Call Us |
| 90 |
400725 |
Cover Terminal Price: Call Us |
| 92 |
193465 |
Harness Pigtail Reverse Switch Price: Call Us |
| 93 |
192540 |
Screw Plastic 10-14 x 2.0 Price: Call Us |
