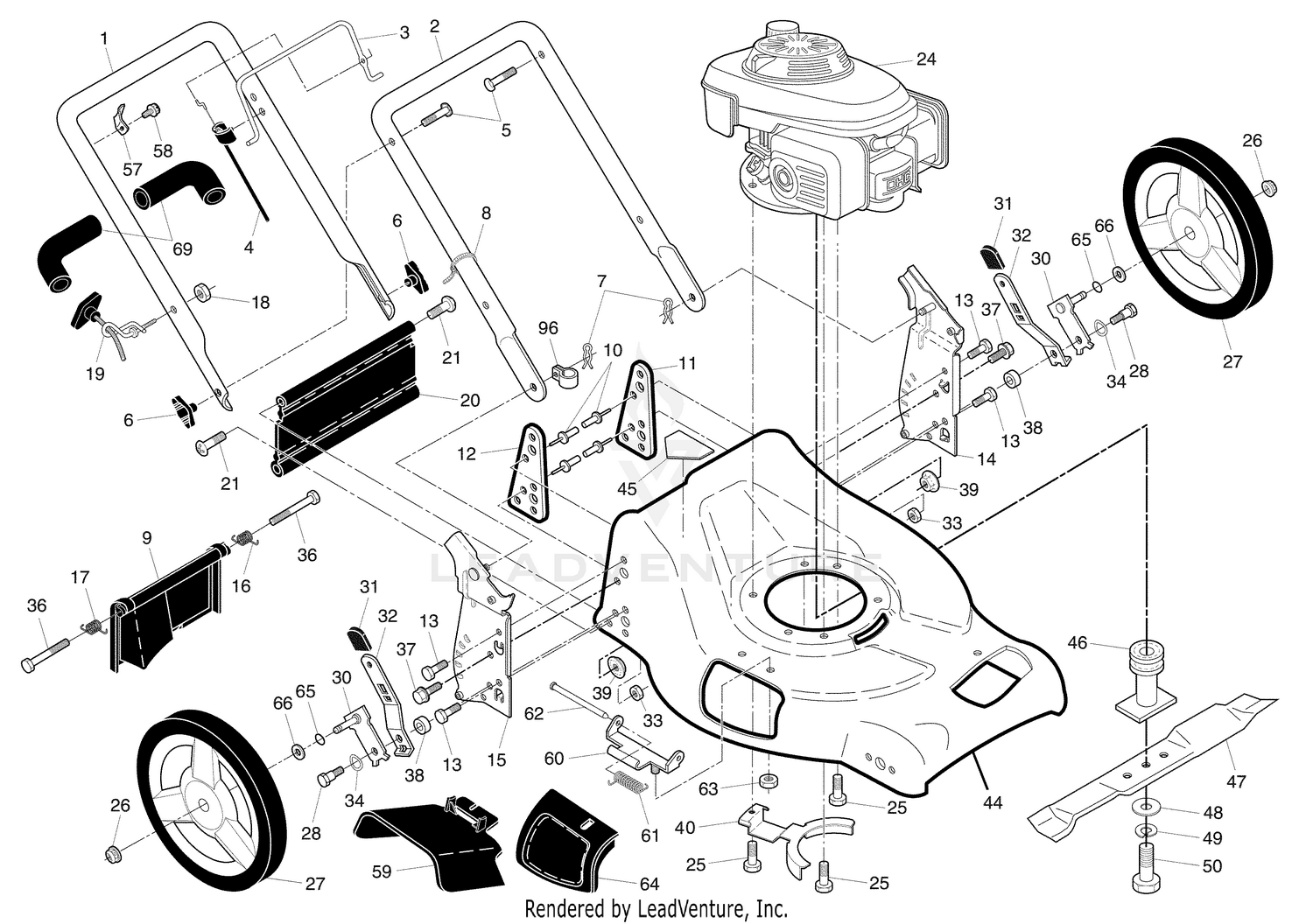

| Ref | Part Number | Description |
|---|
| 1 |
74-8070 |
DISCONTINUED Price: Call Us |
| 2 |
532175245 |
HANDLE.LOWER.21.FWGD.BLACK This part replaces 532153418. Price: $19.99 |
| 2 |
74-8080 |
WASHER Price: $4.77 |
| 3 |
532426812 |
BAIL.CONTROL.MZR.BS.ORANGE This part replaces 532186298. Price: $37.99 |
| 3 |
74-8090 |
PULLEY Price: $344.97 |
| 4 |
532415350 |
CABLE.ASM.ZONE.CONTROL Price: $14.99 |
| 4 |
74-8100 |
GEAR-PINION Price: $58.79 |
| 5 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 5 |
98-3833 |
GEAR - OIL PUMP This part replaces 74-8110. Price: $26.24 |
| 6 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 6 |
74-8120 |
KEY-WOODRUFF Price: $3.36 |
| 7 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 7 |
74-8130 |
SCREW - HEX HD Price: $1.73 |
| 8 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 8 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 9 |
532401812 |
DOOR.REAR.PLASTIC.21.FWGD This part replaces 532406985. Price: $29.99 |
| 9 |
74-8140 |
COVER Price: $137.43 |
| 10 |
532128415 |
RIVET BLIND Price: $3.99 |
| 10 |
74-8150 |
GASKET-COVER Price: $4.08 |
| 11 |
532406573 |
BRACKET.SUPPORT.LH.21.FWGD This part replaces 532410540. Price: $5.99 |
| 11 |
94-3148 |
SEAL This part replaces 74-8160. Price: $33.41 |
| 12 |
532410542 |
BRACKET.SUPRT.RH.21.FWGD Price: $5.99 |
| 12 |
74-8170 |
BEARING SET (STD) Price: $208.01 |
| 13 |
74-8190 |
DISCONTINUED Price: Call Us |
| 13 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 14 |
532417812 |
RP BRACKET.ASM.HNDL/HW.LT.21. Price: $11.99 |
| 14 |
74-8230 |
SHAFT-CRANK Price: $3,552.00 |
| 15 |
532417811 |
BRACKET.ASM.HNDL/HW.RT.21.PNT Price: $11.99 |
| 15 |
74-8240 |
DISCONTINUED Price: Call Us |
| 16 |
532405417 |
SPRING.REAR.DOOR.EZ.21.LT Price: $7.99 |
| 16 |
74-8250 |
PIN Price: $0.97 |
| 17 |
532405418 |
SPRING.REAR.DOOR.EZ.21.RT Price: $3.99 |
| 17 |
74-8260 |
FLYWHEEL Price: $1,023.57 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 18 |
74-8270 |
DISCONTINUED Price: Call Us |
| 19 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 19 |
74-8280 |
SCREW-HH Price: $4.63 |
| 20 |
532413159 |
SKIRT.REAR.21 FWGD.BLACK Price: $14.99 |
| 20 |
74-8290 |
DISCONTINUED Price: Call Us |
| 21 |
532088652 |
HINGE SCREW Price: $3.99 |
| 21 |
74-8300 |
CLIP-PIN, PISTON Price: $2.96 |
| 22 |
74-8310 |
PIN-PISTON Price: $24.33 |
| 23 |
74-8320 |
DISCONTINUED Price: Call Us |
| 24 |
98-9965 |
DISCONTINUED This part replaces 74-8350. Price: Call Us |
| 25 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 25 |
74-8360 |
CONNECTING ROD Price: $1,118.95 |
| 26 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 26 |
74-8370 |
HEX NUT Price: $1.53 |
| 27 |
585911001 |
WHEEL.12X1.75.CF H3SPK.RAD3.BB This part replaces 532410815. Price: $22.99 |
| 27 |
74-8380 |
DISCONTINUED Price: Call Us |
| 28 |
596203801 |
Hardware This part replaces 532401638. Price: $3.99 |
| 28 |
74-8400 |
BOLT-ROD, CONNECTING Price: $23.09 |
| 29 |
74-8420 |
PISTON SET Price: $3,551.52 |
| 29 |
74-8430 |
PISTON SET Price: $3,570.53 |
| 30 |
532413141 |
ARM.ASM.AXLE.REAR.5/9.POS.BZP Price: $5.99 |
| 31 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 32 |
532401626 |
SPRING.SELECTOR.EXTEN.5POS.BZP This part replaces 532409889. Price: $3.99 |
| 33 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 34 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
| 36 |
532184193 |
BOLT Price: $4.99 |
| 37 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 38 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 39 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 40 |
532425711 |
BRACKET.KEEPER.BELT This part replaces 532420474. Price: $5.99 |
| 45 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 46 |
532443950 |
KIT.BLADE.ADAPTOR.BELT.GUIDE. This part replaces 532194037. Price: $49.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 57 |
532430034 |
BRACKET.UPSTOP.RT This part replaces 532125203. Price: $5.99 |
| 58 |
532750634 |
SCREW Price: $2.99 |
| 59 |
532175071 |
DISCHARGE DEFLECTOR This part replaces 532185582. Price: $17.99 |
| 60 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 61 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 62 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 63 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 64 |
532185576 |
DOOR.MULCH.21.REAR.FWGD Price: $11.99 |
| 65 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 66 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 69 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
