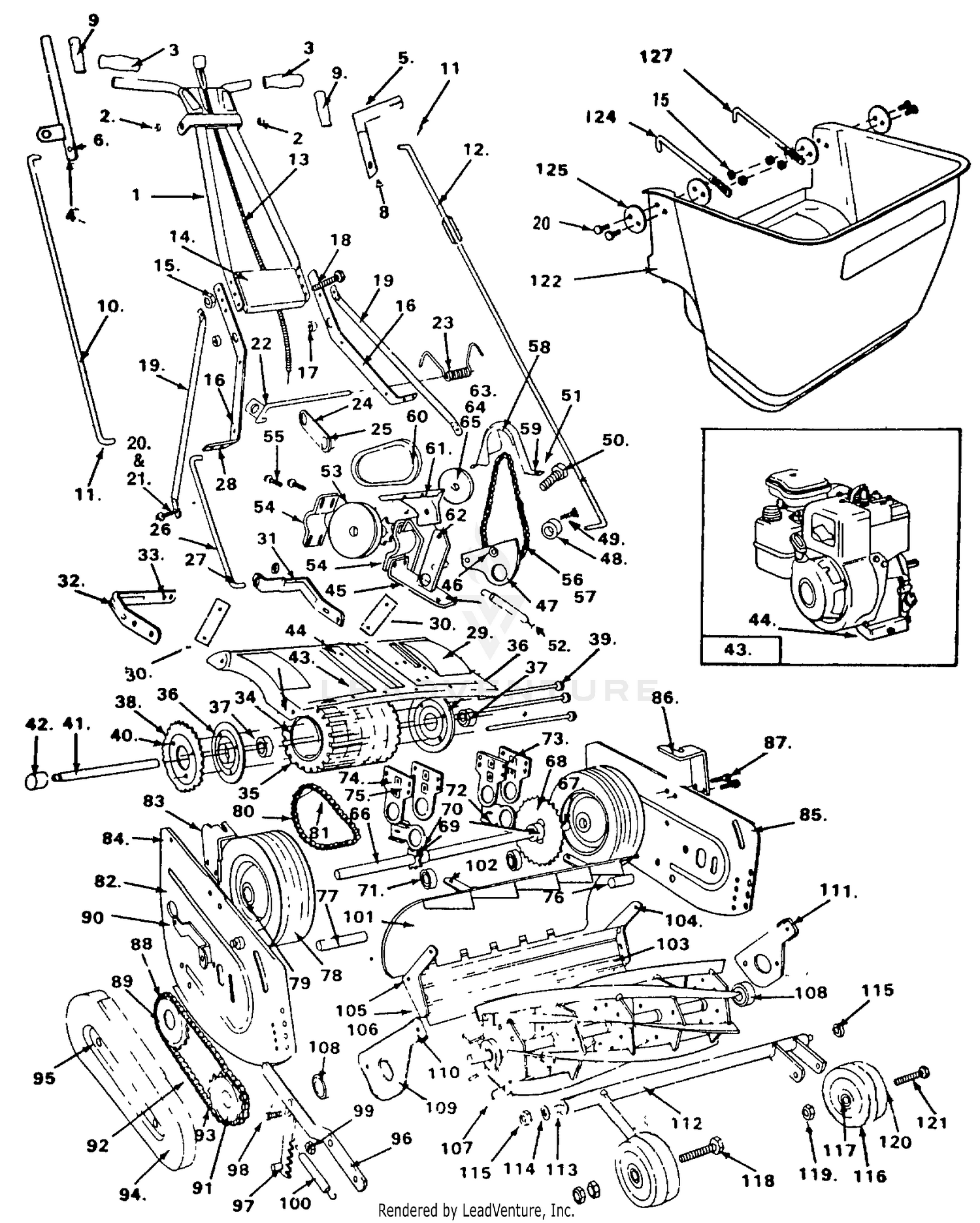

| Ref | Part Number | Description |
|---|
| 1 |
R1001 |
HANDLE W/BEARING Price: Call Us |
| 2 |
R1002 |
HANDLE BEARINGS ONLY Price: Call Us |
| 3 |
R1003 |
HANDLE GRIPS (2 REQ.) Price: Call Us |
| 4 |
R1004 |
DRIVE CONTROL LEVER Price: Call Us |
| 5 |
R1005D |
CLUTCH CONTROL LEVER Price: Call Us |
| 9 |
R1009 |
DRIVE & CLUTCH LEVER GRIPS Price: Call Us |
| 10 |
R1010 |
DRIVE CONTROL ROD Price: Call Us |
| 12 |
R1012D |
CLUTCH CONTROL ROD Price: Call Us |
| 13 |
R1013 |
THROTTLE CONTROL ASSEMBLY Price: Call Us |
| 14 |
R1014 |
HANDLE BRACE PLATE Price: Call Us |
| 16 |
R1016 |
LOWER HANDLE W/BEARING (2 REQ.) Price: Call Us |
| 17 |
R1002 |
BEARINGS ONLY Price: Call Us |
| 19 |
R1019 |
HANDLE BRACE (2 REQ.) L & R Price: Call Us |
| 22 |
R1022 |
DRIVE PIVOT ROD Price: Call Us |
| 23 |
R1023 |
DRIVE PIVOT SPRING Price: Call Us |
| 24 |
R1024 |
DRIVE PIVOT ARM Price: Call Us |
| 26 |
R1026 |
LOWER DRIVE CONTROL ROD Price: Call Us |
| 29 |
R1029 |
DECK Price: Call Us |
| 30 |
R1030 |
HANDLE BRACKETS (2 REQ.) Price: Call Us |
| 31 |
R1031 |
ROLLER SUPPORT BRACKET WITH BEARING Price: Call Us |
| 32 |
R1032 |
ROLLER SUPPORT BRACKET Price: Call Us |
| 34 |
R1034 |
ROLLER DRIVE TUBE Price: Call Us |
| 35 |
R1035 |
ROLLER DRIVE TIRES (5 REQ.) Price: Call Us |
| 36 |
R1036 |
ROLLER END CAPS (2 REQ.) Price: Call Us |
| 37 |
R1037 |
END CAP BEARINGS (2 REQ.) Price: Call Us |
| 38 |
R1038 |
ROLLER DRIVE SPROCKET (30 TEETH) Price: Call Us |
| 39 |
R1039 |
ROLLER DRIVE BOLTS (3 REQ.) Price: Call Us |
| 41 |
R1041 |
ROLLER DRIVE SHAFT Price: Call Us |
| 42 |
R1042 |
SPACER Price: Call Us |
| 43 |
R1043 |
ENGINE, 3 HP MODEL 80202-1676-02 Price: Call Us |
| 45 |
R1045D |
MAIN CLUTCH BODY Price: Call Us |
| 46 |
R1046D |
CLUTCH BEARING Price: Call Us |
| 47 |
R1047D |
BELT IDLER ARM Price: Call Us |
| 48 |
R1048D |
IDLER BEARING (CONCAVE) Price: Call Us |
| 51 |
R1051 |
WASHER 7/16" Price: Call Us |
| 52 |
R1052D |
CLUTCH SPRING/W SPRING PLATE Price: Call Us |
| 53 |
R1053 |
JACK SHAFT WITH PULLEY & SPROCKET Price: Call Us |
| 54 |
R1054 |
JACK SHAFT HOUSING (2 REQ.) Price: Call Us |
| 56 |
R1056 |
CLUTCH DRIVE CHAIN - NO. 41 X 44 PITCH Price: Call Us |
| 58 |
R1058 |
CLUTCH CHAIN GUARD Price: Call Us |
| 60 |
R1060 |
CLUTCH BELT Price: Call Us |
| 61 |
R1061 |
BELT GUARD Price: Call Us |
| 63 |
R1063 |
ENGINE PULLEY Price: Call Us |
| 65 |
R1065 |
ALLEN SET SCREW 5/16"-24 X 5/16" Price: Call Us |
| 66 |
R1066 |
REAR AXLE SHAFT Price: Call Us |
| 67 |
R1067 |
RETAINER RING Price: Call Us |
| 68 |
R1068 |
SPROCKET (30 TEETH WITH HUB) Price: Call Us |
| 69 |
R1069 |
SPROCKET (8 TEETH WITH HUB) Price: Call Us |
| 71 |
R1071 |
AXLE SUPPORT BEARING (2 REQ.) Price: Call Us |
| 72 |
R1072 |
ROLLER BRACKET SUPPORTS (2 REQ.) Price: Call Us |
| 73 |
R1073 |
AXLE HANGERS (4 REQ.) Price: Call Us |
| 76 |
R1076 |
SPACER 1-1/16" Price: Call Us |
| 77 |
R1077 |
SPACER 2-3/16" Price: Call Us |
| 78 |
R1078 |
REAR WHEELS WITH BEARINGS (2 REQ.) Price: Call Us |
| 79 |
R1037 |
REAR WHEEL BEARINGS WITH FLANGE (4 REQ.) Price: Call Us |
| 82 |
R1082 |
SIDE PLATE WITH CHAIN GUARD BRACKET Price: Call Us |
| 83 |
R1083 |
CATCHER HOOK BRACKET Price: Call Us |
| 85 |
R1085 |
SIDE PLATE Price: Call Us |
| 86 |
R1086 |
CATCHER HOOK BRACKET Price: Call Us |
| 88 |
R1088 |
SPROCKET (17 TEETH) Price: Call Us |
| 89 |
R1070 |
SET SCREWS 7/16"-20 X 7/16" HALF DOG (4 REQ.) Price: Call Us |
| 91 |
R1091A |
SPROCKET (13 TEETH) Price: Call Us |
| 94 |
R1094 |
CHAIN GUARD Price: Call Us |
| 95 |
R1095 |
USE PART #1033 Price: Call Us |
| 96 |
R1096 |
HEIGHT ADJUSTMENT LEVER Price: Call Us |
| 97 |
R1097 |
HEIGHT ADJUSTMENT NOTCHED BRACKET Price: Call Us |
| 98 |
R1095 |
SAME AS 1028 Price: Call Us |
| 99 |
R1099 |
SPACER BUSHING Price: Call Us |
| 100 |
R1100 |
HEIGHT ADJUSTMENT SPRING Price: Call Us |
| 101 |
R1101 |
SHIELD Price: Call Us |
| 101 |
R1101A |
SHIELD ASSEMBLY HARDWARE Price: Call Us |
| 103 |
R1103 |
BED KNIFE Price: Call Us |
| 104 |
R1095 |
SAME AS 1028 Price: Call Us |
| 105 |
R1105 |
TAPERED BOLTS 5/16"-18 X 5/8" (6 REQ.) Price: Call Us |
| 106 |
R1106 |
BUSHING FOR TAPERED BOLT (6 REQ.) Price: Call Us |
| 107 |
R1107 |
REEL ASSEMBLY 6 BLADE Price: Call Us |
| 108 |
R1108 |
REEL BEARINGS (2 REQ.) Price: Call Us |
| 109 |
R1109 |
REEL BEARING RETAINER Price: Call Us |
| 110 |
R1095 |
SAME AS 1033 Price: Call Us |
| 111 |
R1111 |
REEL BEARING RETAINER Price: Call Us |
| 112 |
R1112 |
FRONT WHEEL ASSEMBLY BAR Price: Call Us |
| 113 |
R1113 |
TIE ROD Price: Call Us |
| 114 |
R1007 |
PLASTIC WASHER Price: Call Us |
| 116 |
R1116 |
FRONT WHEELS WITH BEARINGS Price: Call Us |
| 117 |
R1002 |
FRONT WHEEL BEARINGS (2 REQ.) Price: Call Us |
| 122 |
R1122 |
PLASTIC GRASS CATCHER Price: Call Us |
| 124 |
R1124 |
CATCHER HOOK Price: Call Us |
| 125 |
R3065 |
WASHER Price: Call Us |
| 127 |
R1127 |
CATCHER HOOK Price: Call Us |
