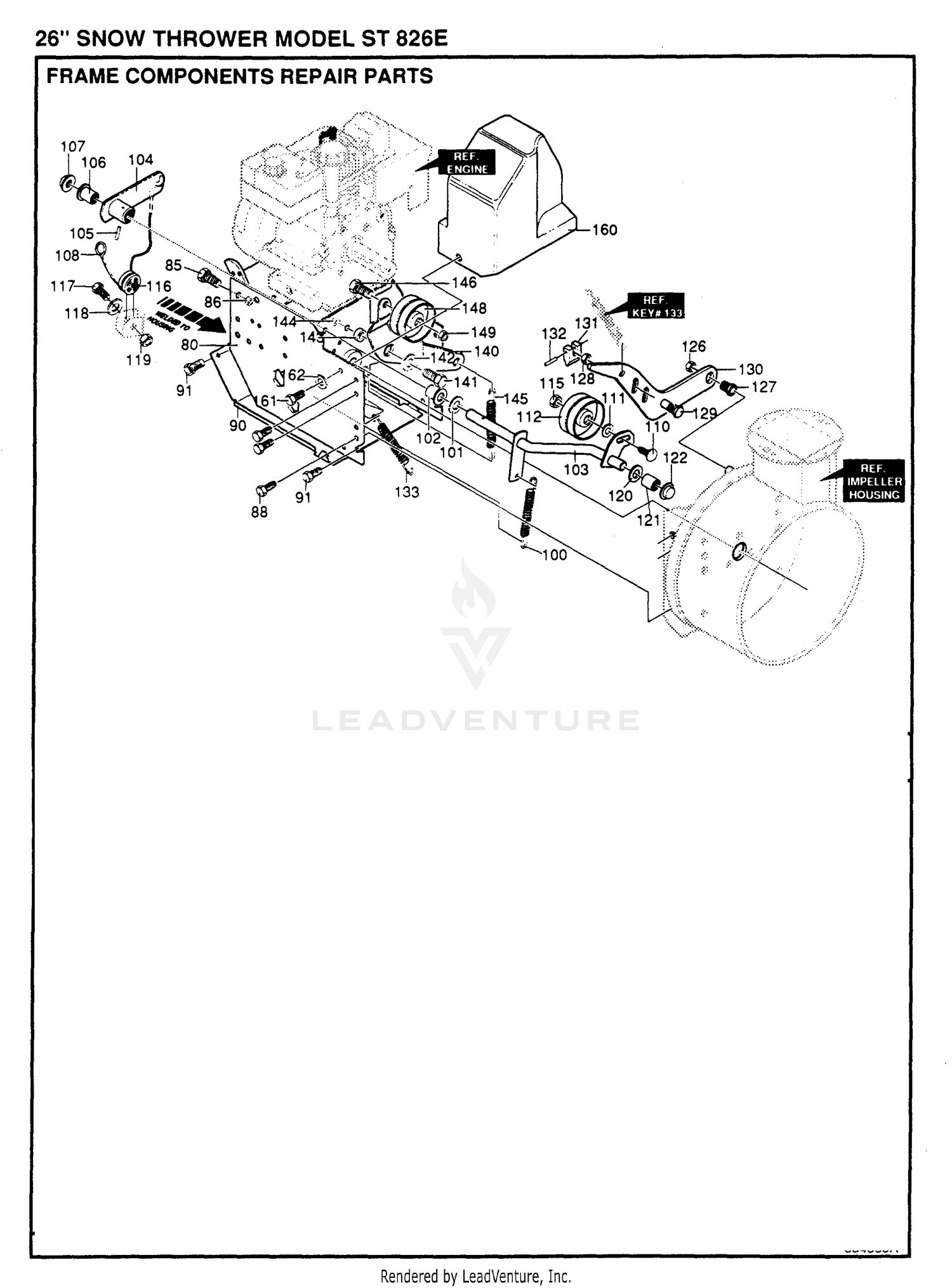

| Ref | Part Number | Description |
|---|
| 80 |
601001595 |
FRAME, ASSY ENGINE MT 16" Price: $86.03 |
| 85 |
601001443 |
SCREW Price: $2.88 |
| 86 |
601000823 |
NUT 5/16-24 HXWDFLLK This part replaces 601001662. Price: $3.99 |
| 88 |
601000519 |
SCREW, 5/16-18X .50 WAHHT Price: $1.99 |
| 90 |
601001444 |
COVER Price: $19.89 |
| 91 |
601001445 |
SCREW Price: $4.99 |
| 100 |
601001089 |
SPRING Price: $3.48 |
| 101 |
601001446 |
WASHER Price: $1.99 |
| 102 |
601001447 |
FLANGE BEARING Price: $1.58 |
| 103 |
601001597 |
ASSY, SHAFT AUG CLUTCH Price: $16.05 |
| 104 |
601001436 |
PULLEY Price: $10.99 |
| 105 |
601001451 |
PIN Price: $1.58 |
| 106 |
601001447 |
FLANGE BEARING Price: $1.58 |
| 107 |
601001452 |
NUT Price: $0.76 |
| 108 |
601001453 |
CABLE, .205 EYE 6.12 579856 Price: $12.99 |
| 110 |
601001598 |
CARR. BOLT, 3/8-16X1.25 Price: $3.99 |
| 111 |
601000020 |
WASHER, FLAT .406X .81X. Price: $2.53 |
| 112 |
601001454 |
IDLER PULLEY Price: $40.99 |
| 115 |
601001335 |
NUT Price: $3.99 |
| 116 |
601001455 |
SPOOL CABLE.AUGER CTR 579860MA Price: $4.99 |
| 117 |
601001456 |
BOLT, SHEAR 703057 Price: $8.99 |
| 118 |
601000018 |
WASHER, FLAT .281X .63X. Price: $1.99 |
| 119 |
601002318 |
RP NUT This part replaces 601000062. Price: $9.99 |
| 120 |
601001446 |
WASHER Price: $1.99 |
| 121 |
601001599 |
BEARING, SLEV Price: $34.99 |
| 122 |
601001452 |
NUT Price: $0.76 |
| 126 |
601001601 |
NUT, 9/16-18 HEX Price: $2.77 |
| 127 |
601001602 |
BOLT. BRAKE ARM 9/16-18 Price: $15.16 |
| 128 |
601001603 |
NUT, 1/2-20 JAM Price: $3.23 |
| 129 |
601001604 |
BOLT-BRAKE ARM ADJ. Price: $41.99 |
| 130 |
601001605 |
BRAKE ARM BRACKET Price: $7.27 |
| 131 |
601001459 |
PAD Price: $3.37 |
| 132 |
601001451 |
PIN Price: $1.58 |
| 133 |
601001460 |
SPRING Price: $4.99 |
| 140 |
601001461 |
LEVER Price: $57.63 |
| 141 |
601000073 |
SCREW, 5/16-18X .75 HHC Price: $2.99 |
| 142 |
601001462 |
WASHER Price: $1.53 |
| 143 |
601001463 |
BUSHING Price: $6.38 |
| 144 |
601001464 |
NUT Price: $1.99 |
| 145 |
601001089 |
SPRING Price: $3.48 |
| 146 |
601000033 |
SCREW, 3/8-16X1.25 HHC Price: $1.99 |
| 148 |
601001454 |
IDLER PULLEY Price: $40.99 |
| 149 |
601001335 |
NUT Price: $3.99 |
| 160 |
601001465 |
COVER, BELT Price: $10.80 |
| 161 |
601001445 |
SCREW Price: $4.99 |
