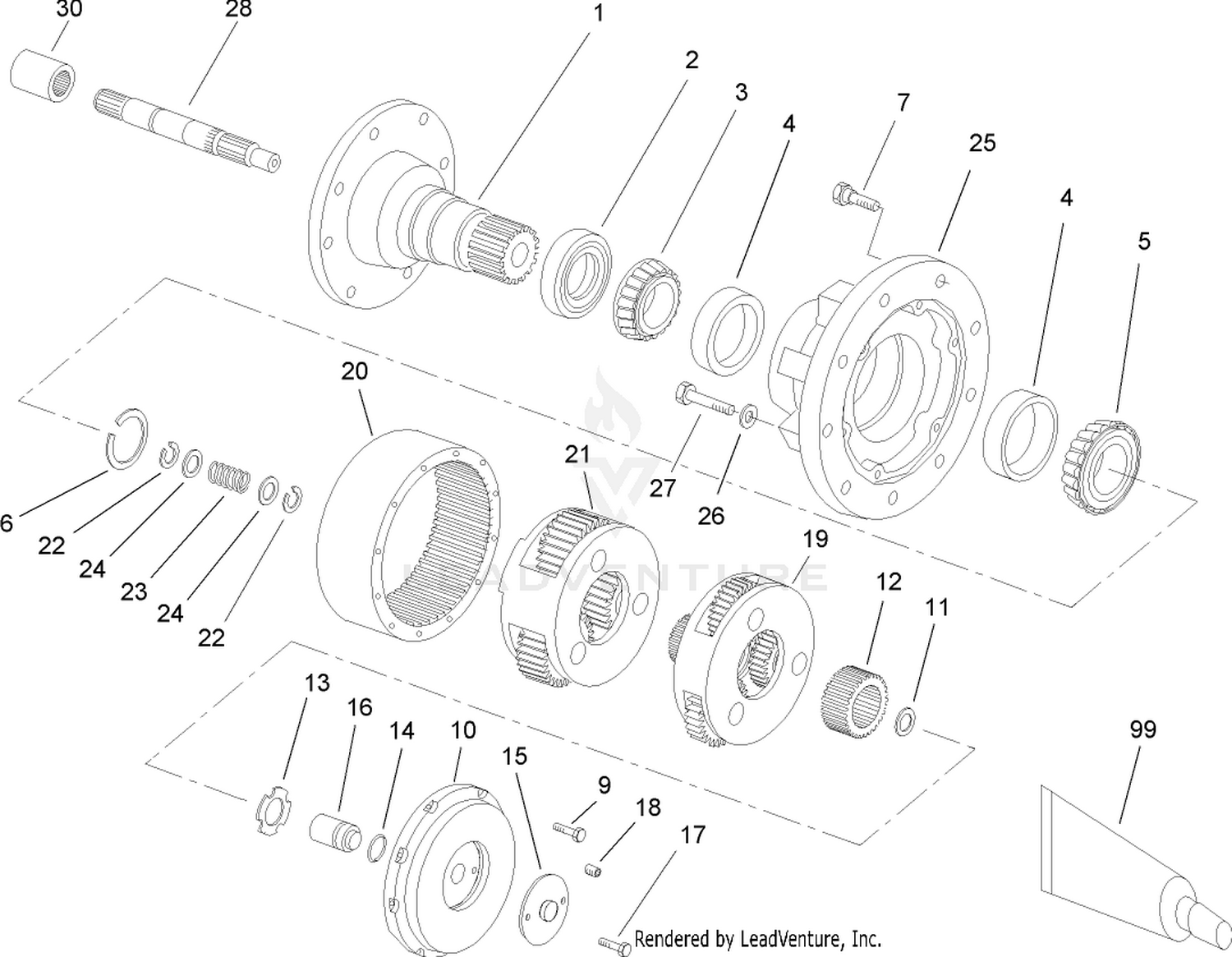

Drive Gear Assembly No. 108-1434-03
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 60-3820 | SPINDLE Price: $1,516.53 |
| 2 | 60-3830 | SEAL Price: $60.55 |
| 3 | 60-3880 | CONE Price: $179.96 |
| 4 | 60-3850 | CUP Price: $109.74 |
| 5 | 60-3840 | CONE Price: $163.95 |
| 6 | 62-6450 | RETAINING RING KIT Price: $152.42 |
| 7 | 107-4341 | BOLT-WHEEL Price: $21.71 |
| 9 | 98-8270 | BOLT Price: $1.59 |
| 10 | 107-4345 | COVER Price: $545.42 |
| 11 | 108-1445 | RING-RETAINING Price: $1.97 |
| 12 | 62-6430 | GEAR Price: $142.98 |
| 13 | 60-3990 | WASHER-THRUST Price: $10.52 |
| 14 | 107-4346 | O-RING Price: $4.76 |
| 15 | 60-4060 | COVER Price: $9.99 |
| 16 | 107-4347 | PLUNGER Price: $25.56 |
| 17 | 322-1 | SCREW-HH Price: $0.22 |
| 18 | 60-4040 | PLUG Price: $11.10 |
| 19 | 108-1443 | PRIMARY CARRIER ASM Price: $1,365.47 |
| 20 | 60-3900 | GEAR Price: $1,114.65 |
| 21 | 108-1444 | SECONDARY CARRIER ASM Price: $1,524.37 |
| 22 | 82-8700 | RING Price: $1.97 |
| 23 | 60-3950 | SPRING Price: $8.11 |
| 24 | 60-3940 | WASHER Price: $4.07 |
| 25 | 107-4342 | HUB Price: $1,742.44 |
| 26 | 60-3910 | WASHER Price: $1.35 |
| 27 | 60-3890 | BOLT Price: $3.11 |
| 28 | 107-4340 | SHAFT-INPUT Price: $281.87 |
| 30 | 60-3800 | COUPLING Price: $131.07 |
