| Ref | Part Number | Description |
|---|
| 1 |
196495X421 |

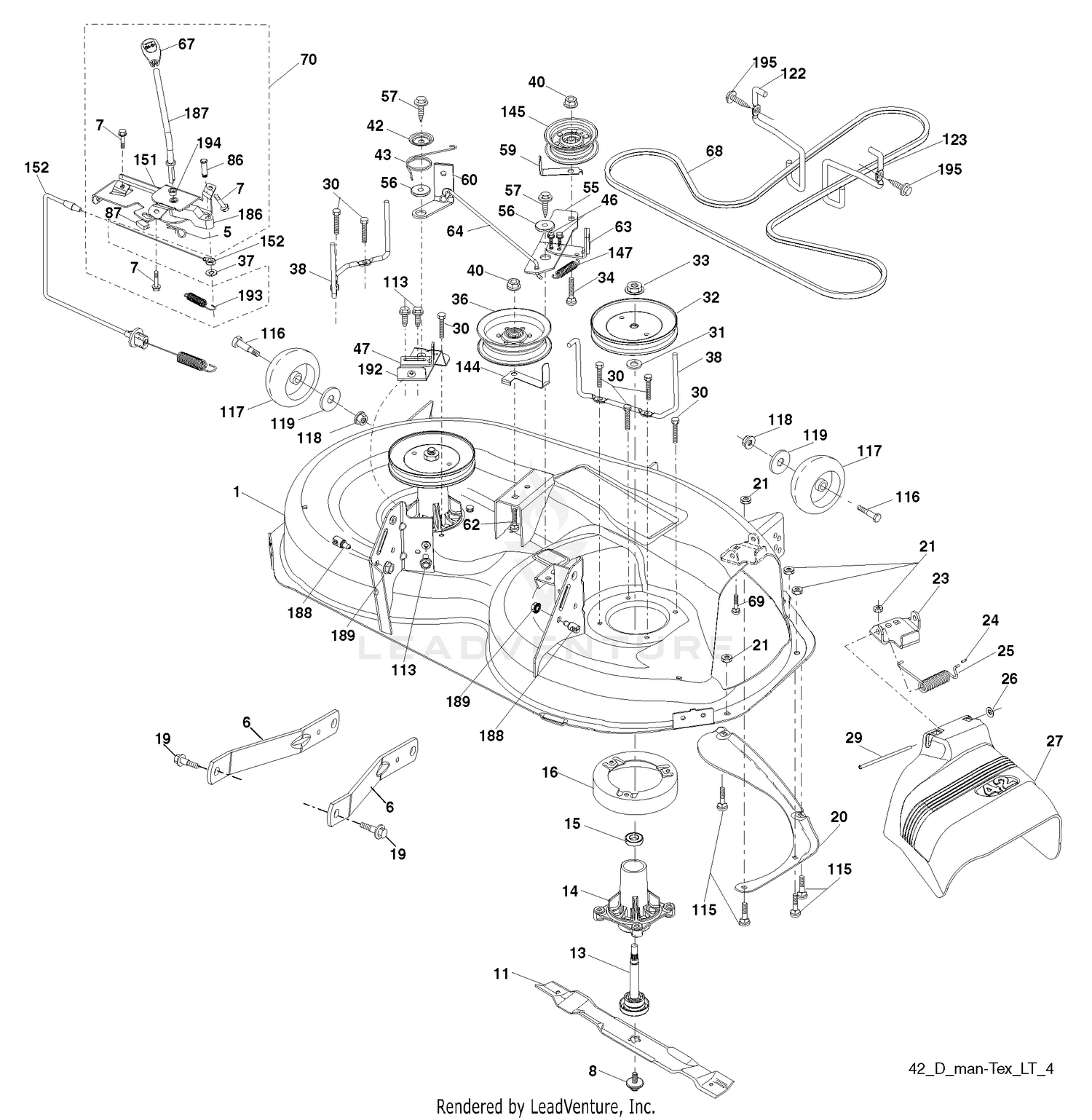

Deck Weldment Mower Price: Call Us |
| 1 |
99-8301 |
NUT Price: $8.64 |
| 2 |
99-8307 |
WASHER-PLAIN Price: $8.84 |
| 3 |
99-8302 |
WASHER-ADJUSTING Price: $7.16 |
| 4 |
99-8303 |
SPRING-NOZZLE Price: $11.49 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
99-8305 |
ROD-PUSH Price: $60.67 |
| 6 |
195186 |
Arm Suspension Price: Call Us |
| 6 |
99-8304 |
SPACER-DISTANCE Price: $29.26 |
| 7 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 7 |
99-8308 |
PIECE-NOZZLE Price: $90.57 |
| 8 |
193003 |
Bolt/Washer asm 7/16-20 unf Price: Call Us |
| 8 |
99-8306 |
NUT-NOZZLE Price: $34.65 |
| 9 |
99-8309 |
ADJUSTING WASHER ASM Price: $56.19 |
| 9 |
99-8310 |
WASHER-ADJUST (0.10MM) Price: $2.74 |
| 9 |
99-8311 |
WASHER-ADJUST (0.20MM) Price: $3.56 |
| 9 |
99-8313 |
WASHER-ADJUST (0.40MM) Price: $2.74 |
| 9 |
99-8314 |
WASHER-ADJUST (0.50MM) Price: $1.91 |
| 9 |
99-8315 |
WASHER-ADJUST (0.52MM) Price: $1.91 |
| 9 |
99-8316 |
WASHER-ADJUST (0.54MM) Price: $1.91 |
| 9 |
99-8317 |
WASHER-ADJUST (0.56MM) Price: $1.91 |
| 9 |
99-8318 |
WASHER-ADJUST (0.58MM) Price: $1.91 |
| 9 |
99-8319 |
WASHER-ADJUST (0.80MM) Price: $1.91 |
| 11 |
138971 |
Blade, 42" Hi-Lift (For bagging or discharge) Price: Call Us |
| 13 |
192872 |
Shaft Assembly, Mandrel Price: Call Us |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mower Deck Price: Call Us |
| 19 |
196539 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 23 |
192557 |
Bracket, Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
197026 |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
193108X428 |
Shield, Deflector Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol Rolling Wsh Hd Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
195945 |
Pulley, Mandrel Price: Call Us |
| 33 |
400234 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 36 |
196106 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer Price: Call Us |
| 38 |
199189 |
Keeper Belt LH Mandrel Price: Call Us |
| 40 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 42 |
198410 |
Spring Torsion Brake Price: Call Us |
| 43 |
197256 |
Spring Torsion Retainer Price: Call Us |
| 46 |
137729 |
Screw Thd Roll 1/4-20 x 5/8 Price: Call Us |
| 47 |
197250 |
Bracket Clutch Cable Price: Call Us |
| 55 |
197249 |
Arm, Idler Price: Call Us |
| 56 |
199092 |
Spacer, Retainer Price: Call Us |
| 57 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 59 |
141043 |
Guard, Tuv Idler Price: Call Us |
| 60 |
197402 |
Arm Brake Mower Price: Call Us |
| 62 |
72110616 |
Bolt Rd Hd Sq Nk 3/8-16 unc x 2 Price: Call Us |
| 63 |
199478 |
Arm Brake Mower Price: Call Us |
| 64 |
199918 |
Link Brake Asm Price: Call Us |
| 65 |
199092 |
Spacer Retainer Price: Call Us |
| 67 |
198398X421 |
Handle Clutch Cable Price: Call Us |
| 68 |
197253 |
V-Belt Price: Call Us |
| 69 |
72140505 |
Bolt Price: Call Us |
| 70 |
199779 |
Clutch Asm Manual Price: Call Us |
| 86 |
197798 |
Pin Attachment Cable Price: Call Us |
| 87 |
197802 |
Switch Interlock Clutch Cable Price: Call Us |
| 88 |
193232 |
Screw 10-24 x 5/8 Price: Call Us |
| 113 |
17000510 |
Bolt 5/16-18 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut, Crownlock 3/8-1 Price: Call Us |
| 119 |
19121414 |
Washer 13/32 x 7/8 x 14 Ga. Price: Call Us |
| 122 |
197258 |
Keeper Belt Engine LH Price: Call Us |
| 123 |
197259 |
Keeper Belt Engine RH Price: Call Us |
| 144 |
199204 |
Keeper Belt Price: Call Us |
| 145 |
177968 |
Pulley Idler Price: Call Us |
| 147 |
401971 |
Spring Return Price: Call Us |
| 151 |
199778 |
Bracket Clutch Price: Call Us |
| 152 |
408714 |
Manual Clutch Cable Price: Call Us |
| 186 |
197799 |
Arm Actuator Price: Call Us |
| 187 |
400426 |
Lever Control Price: Call Us |
| 188 |
195161 |
Stud Fastener Price: Call Us |
| 189 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 192 |
197260 |
Bracket Brake Stand LH Price: Call Us |
| 193 |
197801 |
Spring Plunger Activator Price: Call Us |
| 194 |
197797 |
Bearing Control Lever Clutch Price: Call Us |
| 195 |
17000612 |
Screw Hex Wsh THDR 3/8-16 x 3/4 Price: Call Us |
