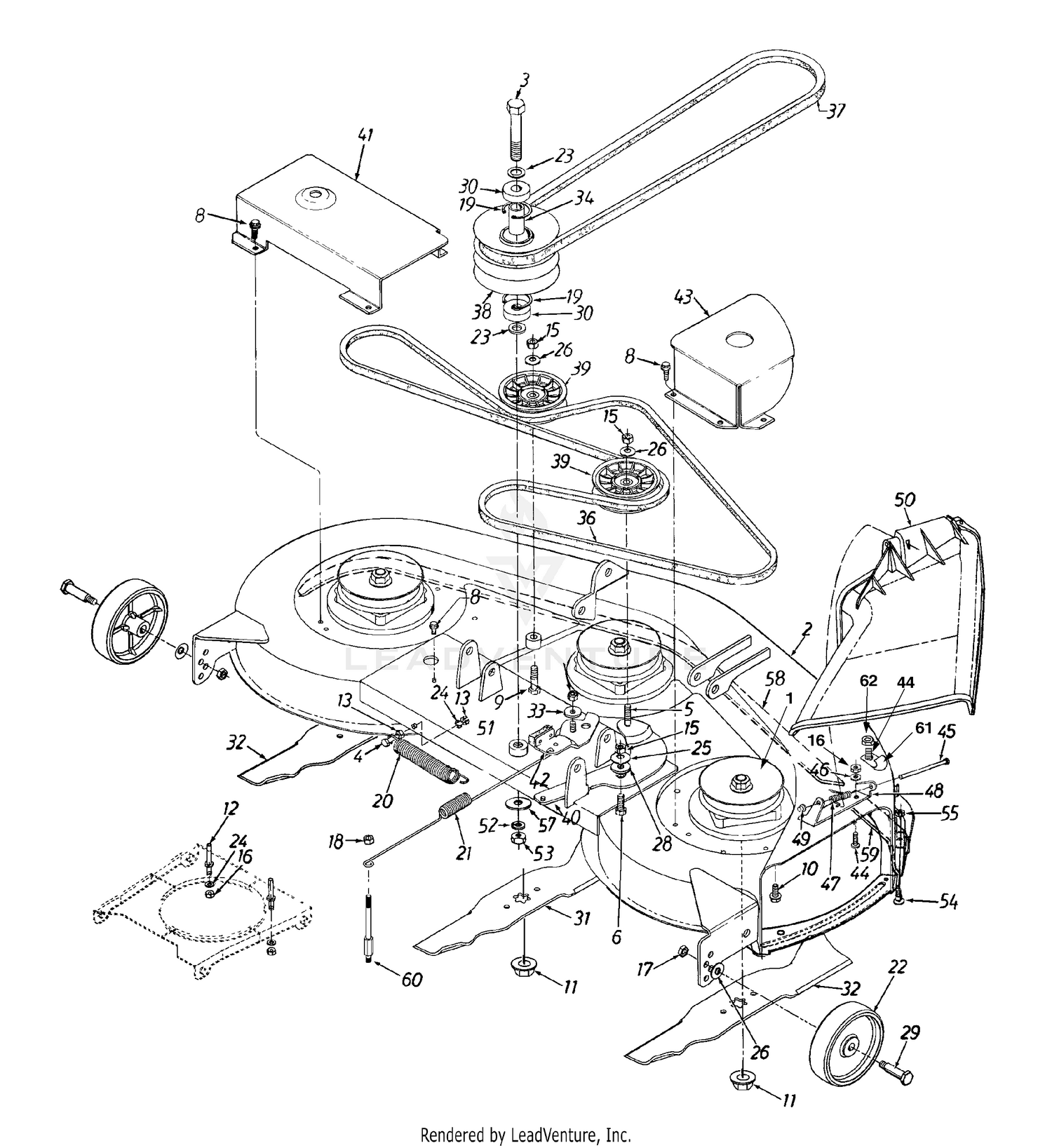

| Ref | Part Number | Description |
|---|
| 1 |
918-0240C |
Spindle Assembly, 5.00 Dia. This part replaces 618-0240. Price: $127.04 |
| 3 |
710-3151 |
Hex Bolt 5/8-18 x 4.25" Lg. Price: $18.89 |
| 4 |
710-0428 |
HEX SCREW 1/4-28 x 1.25 GR5 Not Available Price: |
| 5 |
710-0459A |
Hex Bolt 3/8-24 x 1.5" Lg. Price: $6.50 |
| 6 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. Price: $4.02 |
| 8 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. Price: $3.86 |
| 9 |
710-0151 |
Hex Bolt 3/8-24 x 2" Lg. Price: $6.55 |
| 10 |
710-1260A |
Hex Flange Bolt 5/16-24 x .75" Price: $3.34 |
| 11 |
712-0417A |
HEX NUT Price: $6.50 |
| 12 |
911-0993 |
Belt Guard Pin 1/4" Dia. This part replaces 711-0993. Price: $3.90 |
| 13 |
712-0138 |
Hex Nut 1/4-28 Thd. Price: $5.99 |
| 15 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 16 |
712-3006 |
HEX NUT Price: $4.05 |
| 17 |
712-0181 |
Hex Top Jam Nut 3/8-16 Thd. Price: $3.90 |
| 18 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 19 |
916-3020 |
Int. Snap Ring This part replaces 7163020. Price: $4.42 |
| 20 |
932-0594A |
Extension Spring 6.17" Lg. This part replaces 732-0594A. Price: $13.74 |
| 21 |
732-0723 |
SPRING .788ODX15.5 Not Available Price: |
| 22 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 23 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 24 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 25 |
736-0331 |
Bell-Wash. 3/8" x 1.125" x .062" Price: $3.50 |
| 26 |
736-0105 |
Bell-Wash. 3/8" x .87" x .064" Price: $3.96 |
| 28 |
938-0347 |
Shld. Spacer .625" I.D. This part replaces 738-0347. Price: $8.93 |
| 29 |
938-0373 |
Shld. Bolt .498" Dia. x 1.53" This part replaces 738-0373. Price: $8.45 |
| 30 |
941-0524A |
Ball Brg. .625" I.D. x 1.574" O.D. x .47" This part replaces 7410524. Price: $20.36 |
| 31 |
942-0645 |
Blade 14.88" Lg. (Middle) This part replaces 742-0645. Price: $23.95 |
| 33 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 34 |
950-0932A |
Spacer 5/8" I.D. x 7/8" O.D. This part replaces 750-0932A. Price: $18.32 |
| 36 |
954-0440 |
V-Belt This part replaces 754-0440. Price: $50.72 |
| 37 |
954-0439 |
V-Belt This part replaces 754-0439. Price: $50.92 |
| 38 |
756-0638 |
Pulley Double Deck 5" O.D. Price: $118.30 |
| 39 |
756-0627D |
Fl-Idler Pulley 3.5" O.D. This part replaces 7560627. Price: $28.58 |
| 40 |
783-0046 |
IDLER BRACKET Not Available Price: |
| 41 |
783-0063A |
BELT COVER (LH) Not Available Price: |
| 42 |
97116 |
Deck Brake Brkt. Ass'y. This part replaces 17116. Price: $48.57 |
| 43 |
17258E |
RH Belt Cover, Deck 46" This part replaces 17258A. Price: $42.26 |
| 44 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 45 |
911-0792 |
Hinge Pin This part replaces 7110792. Price: $4.05 |
| 46 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 47 |
732-0602A |
Torsion Spring Not Available This part replaces 7320602. Price: |
| 48 |
703-1693A |
Hinge Mtg. Brkt. This part replaces 7031693. Price: $20.29 |
| 49 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 51 |
950-0960A |
Spacer .635" I.D. x 1" O.D. This part replaces 750-0960. Price: $11.65 |
| 52 |
736-0158 |
L-Wash. 5/8" I.D. Price: $3.90 |
| 53 |
712-0337 |
HEX NUT 5/8-18 Not Available Price: |
| 54 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 55 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
| 57 |
736-3088 |
Fl-Wash. .635" I.D. Price: $3.90 |
| 58 |
783-0141 |
Center Deck Skirt Price: $53.24 |
| 59 |
783-0142-0637 |
Skirt-Right Hand This part replaces 783-0142. Price: $42.48 |
| 60 |
738-0999 |
STUD RETURN SPRING Not Available Price: |
| 61 |
96606 |
Retainer Hook Brkt. This part replaces 16606. Price: $6.71 |
