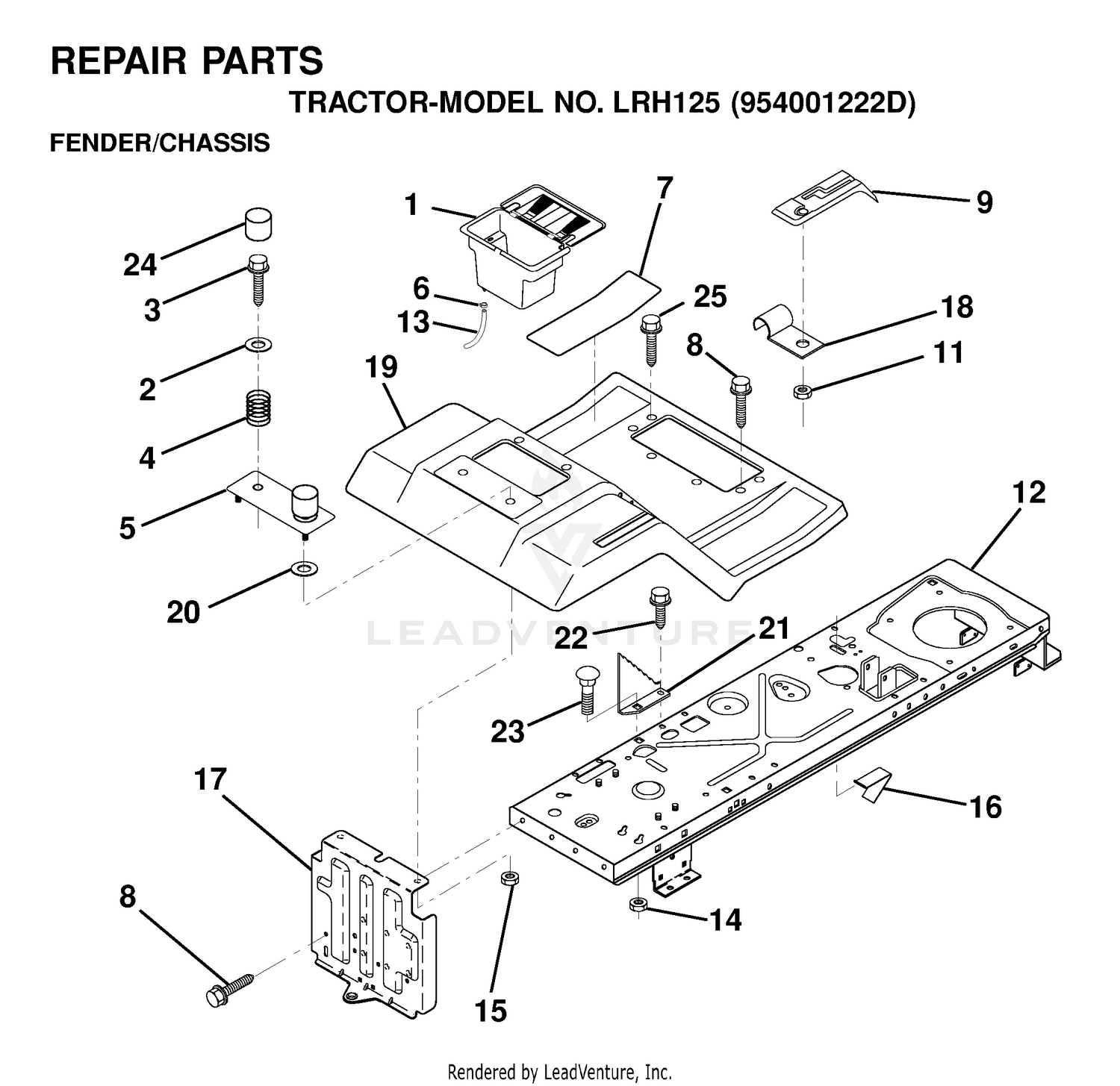

| Ref | Part Number | Description |
|---|
| 1 |
127-3101 |
OIL LUBE PUMP ASM Price: $229.50 |
| 1 |
532404349 |
KIT.BOX.BATTERY.REAR.BOOT.POS This part replaces 532144940. Price: $24.99 |
| 2 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 3 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 4 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 5 |
532127115 |
PLATE This part replaces 532125142. Price: $5.78 |
| 6 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 7 |
532126700 |
FOOTREST PAD Price: $30.08 |
| 8 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 9 |
532140919 |
CONSOLE SHIFT CTL Price: $12.77 |
| 11 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 12 |
532145190 |
FRAME Price: $89.40 |
| 13 |
127-3004 |
GASKET Price: $2.73 |
| 13 |
532109238 |
TUBE BATTERY DRAIN Price: $5.46 |
| 14 |
125-7232 |
BOLT Price: $3.28 |
| 14 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 15 |
125-7171 |
PLUG-DRAIN Price: $23.08 |
| 15 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 16 |
125-6987 |
DIPSTICK Price: $68.96 |
| 16 |
532146613 |
KIT/CLUTCH BRAKE ACTUATOR This part replaces 532141736. Price: $6.80 |
| 17 |
125-6954 |
GUIDE-DIPSTICK Price: $9.80 |
| 17 |
532140782 |
DRAWBAR Price: $26.91 |
| 18 |
125-7022 |
GASKET Price: $7.07 |
| 19 |
125-7023 |
PIPE ASM Price: $44.23 |
| 19 |
532140956 |
FENDER This part replaces 532141366. Price: $108.31 |
| 20 |
125-7217 |
BOLT Price: $4.58 |
| 20 |
596135301 |
Washers This part replaces 819091413. Price: $2.99 |
| 21 |
127-3014 |
COOLER ASM Price: $1,323.82 |
| 21 |
532140297 |
BRACKET DEPTH Price: $2.70 |
| 22 |
127-2985 |
O-RING Price: $6.88 |
| 22 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 23 |
127-3015 |
BRACKET-COOLER Price: $73.15 |
| 23 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 24 |
125-7041 |
NUT-COOLER, OIL Price: $51.50 |
| 24 |
532124238 |
CAP SPRING Price: $4.99 |
| 25 |
127-3009 |
BRACKET ASM Price: $82.05 |
| 25 |
817190516 |
Screw Hex Wsh Thdroll 5/16-18 x 1 Price: $2.42 |
| 26 |
127-3009 |
BRACKET ASM This part replaces 125-6930. Price: $82.05 |
| 27 |
127-3010 |
STUD Price: Call Us |
| 28 |
125-7024 |
GASKET Price: $3.16 |
| 30 |
125-6990 |
JOINT Price: $64.80 |
| 31 |
127-3102 |
PIPE-COOLING, WATER Price: $45.56 |
| 32 |
125-7162 |
CLIP Price: $6.55 |
| 35 |
127-3103 |
HOSE-COOLING, WATER Price: $48.62 |
| 36 |
125-7162 |
CLIP Price: $6.55 |
| 38 |
127-3007 |
TUBE Price: $19.01 |
| 39 |
125-7001 |
ELBOW Price: $40.49 |
| 40 |
127-3176 |
O-RING Price: $2.87 |
| 41 |
125-7595 |
BOLT Price: $2.39 |
