| Ref | Part Number | Description |
|---|
| 1 |
112-7022 |
STARTER ASM This part replaces 104-8609. Price: $502.27 |
| 1 |
174619 |

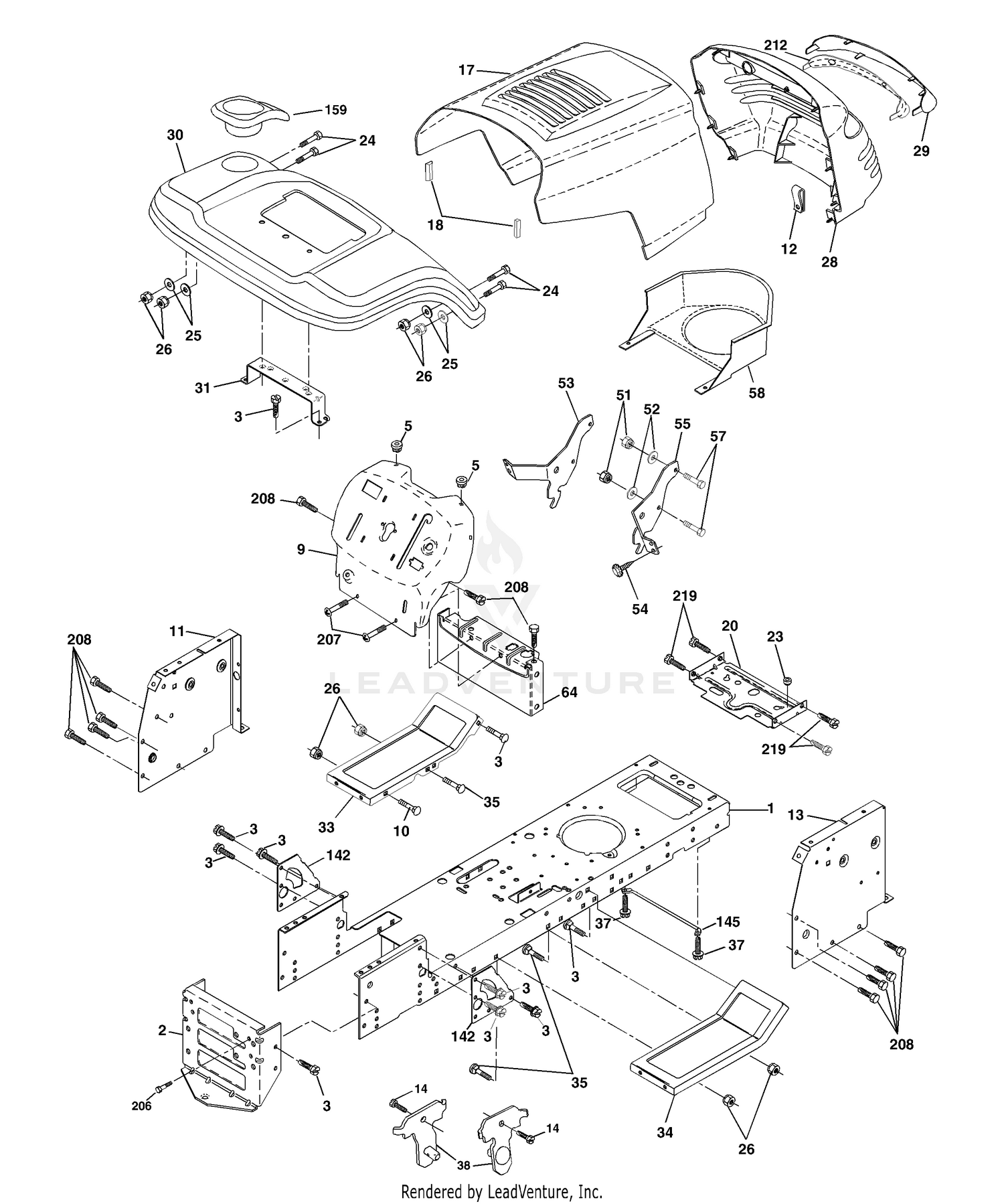

Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16 X .75 Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 9 |
168337X012 |
Dash P/L Price: Call Us |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash Lh Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Price: Call Us |
| 13 |
172106 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
159639X428 |
Hood LT/PL Price: Call Us |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 20 |
180679 |
Plate Mtg Battery Fuel Tank Price: Call Us |
| 23 |
124028X |
Bushing Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Gr 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 28 |
179844 |
Grille/Lens Asm Price: Call Us |
| 29 |
170472X599 |
Lens LT/PL Price: Call Us |
| 30 |
169470X428 |
Fender Footrest STLT Pnt Price: Call Us |
| 31 |
136619 |
Bracket Fender Price: Call Us |
| 33 |
179716X428 |
Footrest Pnt Lh Price: Call Us |
| 34 |
179717X428 |
Footrest Pnt Rh Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm Pivot Mower Rear Price: Call Us |
| 51 |
73800400 |
Nut Lock Hex W/Ins 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracjet Grukke Lh Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Hex 1/4-20 x 3/4 Price: Call Us |
| 58 |
174930 |
Duct Air Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 101 |
104-8610 |
FRONT BRACKET ASM Price: $161.50 |
| 102 |
104-8611 |
BEARING SET Price: $63.24 |
| 103 |
104-8612 |
CLUTCH SHAFT ASM Price: $875.79 |
| 104 |
104-8613 |
GEAR SHAFT ASM Price: $727.54 |
| 105 |
104-8614 |
WASHER SET Price: $13.09 |
| 106 |
104-8615 |
INTERNAL GEAR ASM Price: $236.86 |
| 107 |
104-8616 |
CLUTCH-RUNNING, OVER Price: $215.16 |
| 108 |
104-8617 |
GEAR ASM Price: $81.43 |
| 109 |
104-8618 |
LEVER ASM Price: $81.96 |
| 110 |
104-8619 |
PINION SET Price: $50.61 |
| 111 |
51-7740 |
STOPPER SET Price: $15.31 |
| 112 |
104-8620 |
SWITCH ASM Price: $493.81 |
| 113 |
104-8621 |
SCREW SET Price: $4.99 |
| 114 |
104-8622 |
BALL Price: $2.29 |
| 115 |
104-8623 |
PACKING SET Price: $32.37 |
| 116 |
104-8624 |
ARMATURE SET Price: $1,149.96 |
| 117 |
107-4398 |
BEARING Price: $45.79 |
| 118 |
104-8625 |
YOKE ASM Price: $584.47 |
| 119 |
104-8626 |
BRUSH HOLDER ASM Price: $107.39 |
| 120 |
104-8627 |
SPRING-BRUSH Price: $6.17 |
| 121 |
104-8628 |
REAR BRACKET ASM Price: $62.49 |
| 122 |
93-3687 |
BOLT SET Price: $9.64 |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 159 |
169473X428 |
Cupholder Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 212 |
156229 |
Insert Lens Relect Price: Call Us |
