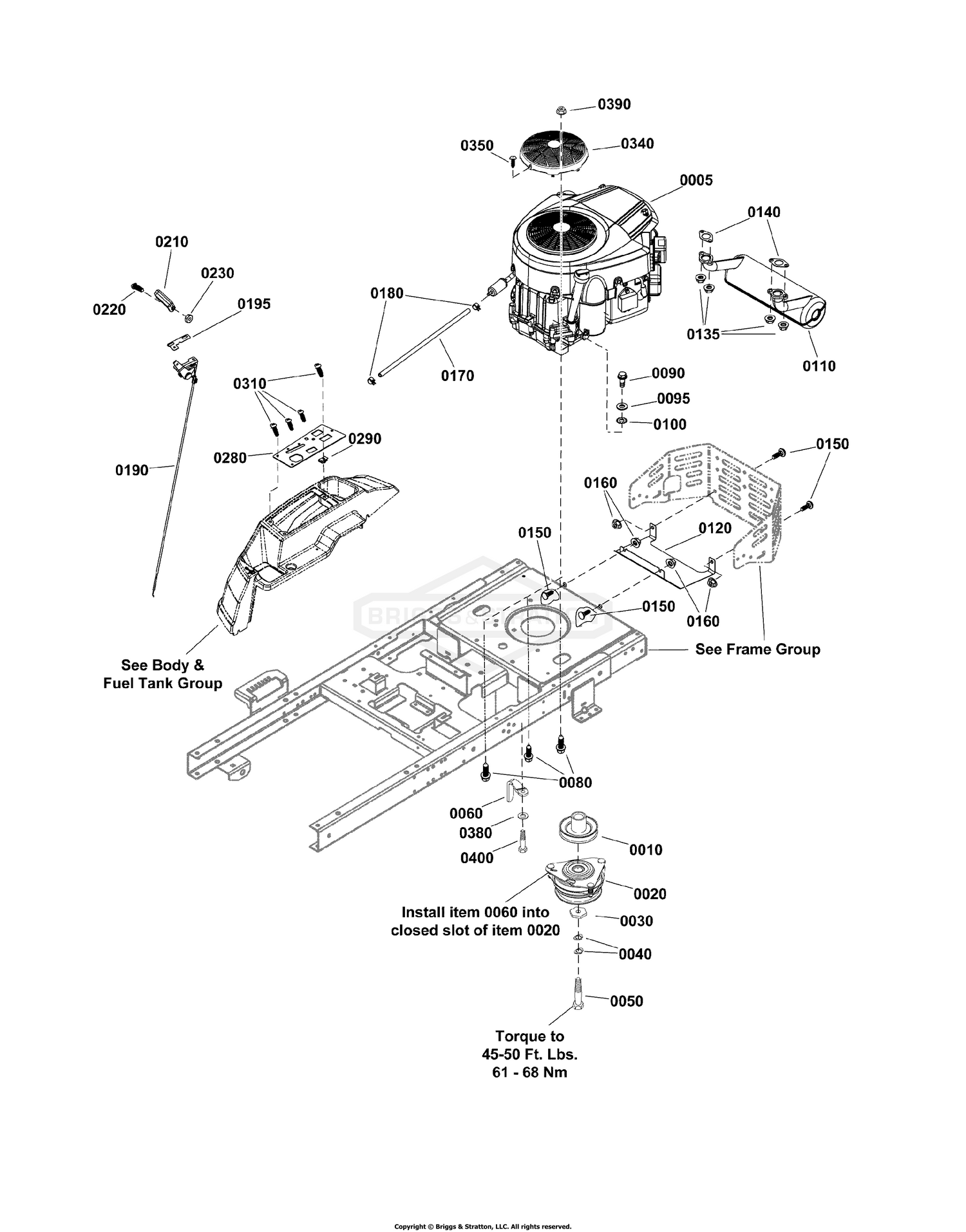

| Ref | Part Number | Description |
|---|
| 0010 |
1757995YP |
ASSEMBLY-PULLEY Price: $36.37 |
| 0020 |
1736105SM |
CLUTCH, ELECTRIC Price: $348.49 |
| 0030 |
1708264SM |
WASHER, HEX, 0.453ID Price: $7.67 |
| 0040 |
1960769YP |
WASHER, Belleville Price: $4.49 |
| 0050 |
771023 |
CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2 Price: $6.02 |
| 0060 |
1737421AYP |
GUIDE, Belt Price: $11.34 |
| 0080 |
2828635SM |
SCREW-HEX WSHR HD TAP Price: $4.26 |
| 0090 |
703054 |
SCREW, 1/4-20X0.625 Price: $3.82 |
| 0095 |
703332 |
WASHER Price: $3.72 |
| 0100 |
1921880SM |
LOCKWASHER-EXTERNALTO Price: $2.97 |
| 0110 |
1758350YP |
MUFFLER Price: $202.48 |
| 0120 |
1759502AYP |
SHIELD, Heat Price: $58.97 |
| 0135 |
690941 |
NUT Price: $4.03 |
| 0140 |
690970 |
GASKET, Exhaust Price: $4.13 |
| 0150 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0160 |
703115 |
NUT Price: $3.06 |
| 0170 |
791766 |
LINE, Fuel This part replaces 327290MA. Price: $7.27 |
| 0180 |
691038 |
CLAMP, Hose Price: $3.12 |
| 0190 |
1759205YP |
CONTROL-THROTTLE Price: $40.25 |
| 0195 |
84004836 |
STOP, Throttle Price: $5.18 |
| 0210 |
1739312YP |
KNOB, THROTTLE Price: $10.42 |
| 0220 |
797483 |
SCREW Price: $3.66 |
| 0230 |
703460 |
NUT, Hex #8-32 Price: $3.24 |
| 0280 |
84002285 |
PANEL, Control, Choke Price: $26.64 |
| 0290 |
705876 |
NUT Price: $3.82 |
| 0310 |
703953 |
SCREW, 1/4-20X5/8 This part replaces 7090999SM. Price: $3.82 |
| 0340 |
797420YP |
GUARD, Debris Screen Price: $34.58 |
| 0350 |
799359 |
SCREW Price: $3.70 |
| 0380 |
703350 |
WASHER This part replaces 5025155SM. Price: $3.72 |
| 0390 |
703115 |
NUT This part replaces 5025392SM. Price: $3.06 |
