| Ref | Part Number | Description |
|---|
| 1 |
98-9968 |
SCREW Price: $4.27 |
| 2 |
583765001 |
APPLIQUE BAGGER This part replaces 532447572. Price: $34.99 |
| 2 |
77-3450 |
WASHER Price: $5.63 |
| 3 |
77-3420 |
GASKET Price: $48.90 |
| 4 |
99-9967 |
Key Price: Call Us |
| 5 |
532445248 |
Price: Call Us |
| 5 |
77-3400 |
DISCONTINUED Price: Call Us |
| 6 |
94-3163 |
DISCONTINUED Price: Call Us |
| 7 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 7 |
94-3166 |
WASHER-PLATE Price: $2.69 |
| 8 |
580436801 |
Price: Call Us |
| 9 |
94-3162 |
STUD Price: $30.04 |
| 10 |
583825801 |
BAGGER.FRAME.LOW.UTUBE.TEX.CRD This part replaces 532443755. Price: $29.99 |
| 10 |
94-3164 |
WASHER-SPRING Price: $1.20 |
| 11 |
94-3159 |
TENSIONER Price: $141.40 |
| 12 |
94-3165 |
NUT-HEX Price: $2.34 |
| 13 |
77-3520 |
CUP Price: $14.17 |
| 14 |
77-3510 |
SPRING Price: $11.34 |
| 15 |
94-3160 |
ROLLER Price: $159.20 |
| 16 |
94-3161 |
DISCONTINUED Price: Call Us |
| 17 |
94-3170 |
SCREW Price: $32.46 |
| 18 |
74-8830 |
BELT-TIMING Price: $104.36 |
| 19 |
94-3172 |
WASHER Price: $0.43 |
| 20 |
94-3171 |
SCREW-HH Price: $3.39 |
| 21 |
581337103 |
BAGGER.ASM.FABRIC.CRD.GII.HUSQ This part replaces 532445943. Price: $109.99 |
| 21 |
94-3168 |
DISCONTINUED Price: Call Us |
| 22 |
94-3173 |
CAPSCREW Price: $3.29 |
| 23 |
76-5010 |
WASHER-SPRING Price: $0.33 |
| 24 |
99-2570 |
DISCONTINUED This part replaces 94-3167. Price: Call Us |
| 25 |
583580301 |
LATCH.BAG.CRD.GEN2 This part replaces 532445528. Price: $5.99 |
| 25 |
94-3169 |
DISCONTINUED Price: Call Us |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 26 |
98-9966 |
GEAR-CAMSHAFT Price: $169.08 |
| 42 |
583548101 |
CHRISTMAS.TREE.CLIP This part replaces 532440428. Price: $2.99 |
| 44 |
532199687 |
SCREW Price: $2.99 |
| 45 |
583570301 |
TCRD.-GEN2.UPPR.U.FRAME.WLDMT This part replaces 532443754. Price: $99.99 |
| 46 |
583573001 |
LH.BAG.CRNER.CLOSE-OUT.TEXCRD This part replaces 532444079. Price: $6.99 |
| 47 |
583580501 |
LH.BGGR.CRNER.CLOSE-OUT.TEXCRD This part replaces 532445541. Price: $7.99 |
| 48 |
583573101 |
TOP.BGGR.SIDE.CLOSE-OUT.TCRDII This part replaces 532444080. Price: $7.99 |
| 49 |
532171873 |
BOLT, SHOULDER 5/16-18 Price: $4.99 |
| 50 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 51 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 52 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 54 |
583827701 |
BAGGER TOP.FRONT.HANDLE This part replaces 532447218. Price: $12.99 |
| 55 |
596030801 |
Bolts This part replaces 872140512. Price: $3.99 |
| 56 |
532420306 |
PIN.CLEVIS.183 Price: $7.99 |
| 57 |
583254901 |
SCREW.1/4-20X.50-0T30 This part replaces 532199855. Price: $2.99 |
| 58 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 59 |
583826601 |
BAGGER SPRD.TUBE.TEX.CRD.GEN2 This part replaces 532444763. Price: $19.99 |
| 60 |
532444105 |
Price: Call Us |
| 61 |
532444106 |
Price: Call Us |
| 62 |
532444542 |
Price: Call Us |
| 63 |
583826401 |
GRASS BAG N/A BAGGER.PIVOT.EL This part replaces 532444111. Price: $14.99 |
| 64 |
532430422 |
Price: Call Us |
| 65 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 67 |
872110518 |
Price: Call Us |
| 68 |
819111610 |
WASHER Price: $4.99 |
| 69 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 70 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 71 |
532445238 |
Price: Call Us |
| 72 |
532445236 |
Price: Call Us |
| 73 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 74 |
532445243 |
Price: Call Us |
| 75 |
532445245 |
Price: Call Us |
| 76 |
532445244 |
Price: Call Us |
| 78 |
532445257 |
Price: Call Us |
| 79 |
583590601 |
NYLN.SPCR.375 X .75 X .4375.L This part replaces 532447368. Price: $2.99 |
| 80 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 81 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |

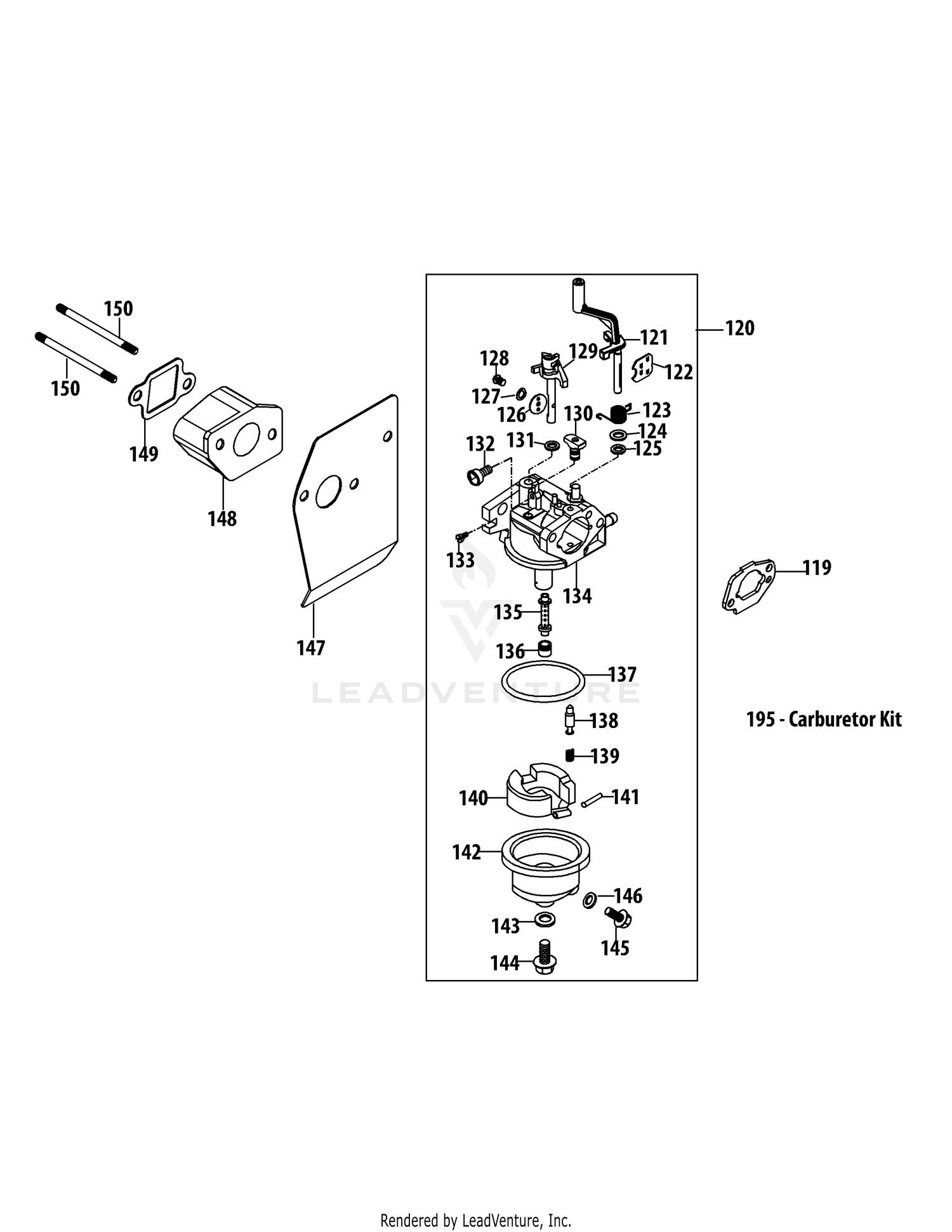

| 119 |
951-11525 |
Carburetor Gasket Plate Price: $4.45 |
| 120 |
951-10873 |
Carburetor Assembly Price: $83.93 |
| 121 |
None |
Choke Shaft |
| 122 |
None |
Choke Plate |
| 123 |
None |
Choke Return Spring |
| 124 |
736-04556 |
Choke Shaft Washer Price: $3.56 |
| 125 |
None |
Choke Shaft Fiber O-Ring |
| 126 |
None |
Throttle Plate |
| 127 |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| 128 |
None |
Screw M3X5 Throttle Plate |
| 129 |
None |
Throttle Shaft |
| 130 |
None |
Idle Jet Assembly |
| 131 |
None |
Throttle Shaft Fiber O-Ring |
| 132 |
None |
Idle Speed Adjusting Screw |
| 133 |
None |
Idle Mixture Screw |
| 134 |
None |
Carburetor Body |
| 135 |
None |
Emulsion Tube |
| 136 |
None |
Main Jet |
| 137 |
951-11589 |
Fuel Bowl O-Ring Price: $6.04 |
| 138 |
None |
Needle Valve |
| 139 |
None |
Needle Valve Spring |
| 140 |
None |
Float |
| 141 |
None |
Float Pin |
| 142 |
None |
Fuel Bowl |
| 143 |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| 144 |
710-04945 |
Fuel Bowl Mounting Bolt Price: $3.66 |
| 145 |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| 146 |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| 147 |
951-11737 |
Carburetor Gasket Price: $4.91 |
| 148 |
951-11738A |
CARBURETOR INSULATOR This part replaces 951-11738. Price: $4.60 |
| 149 |
951-11528 |
Carburetor Insulator Gasket Price: $3.90 |
| 150 |
710-05093 |
Carb Stud M6X92 Price: $3.65 |
