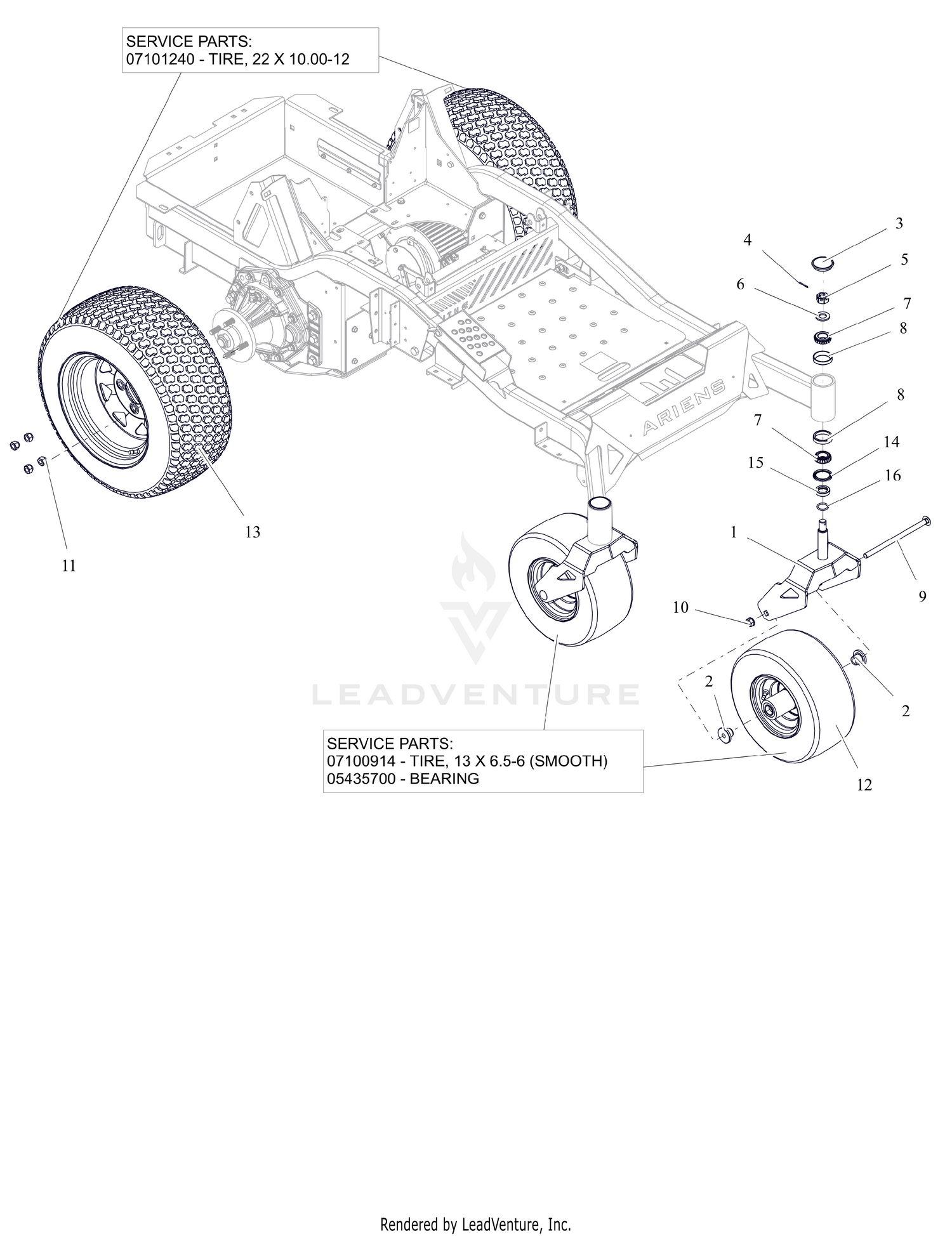

| Ref | Part Number | Description |
|---|
| 1 |
09476059 |
WLDMT- CASTER FORK Price: $132.95 |
| 2 |
00675300 |
SPACER, FRONT WHEEL Price: $7.95 |
| 3 |
00456800 |
CAP, DUST Price: $16.45 |
| 4 |
06700212 |
PIN,CTR.12X1.25EXTPRSQCT ZC120 Price: $0.45 |
| 5 |
00595500 |
NUT, SLOTTED .75-16 Price: $3.45 |
| 6 |
06401140 |
WSHR, FLT .812X1.469X.134 ZCC Price: $1.45 |
| 7 |
05406900 |
BRG-CONE 1.0X.58 Price: $17.95 |
| 8 |
05407000 |
BRG-CUP1.980X.420 Price: $16.45 |
| 9 |
06200510 |
BLT-RHSN .50-13X9.00 G5 ZCC NS This part replaces 06200322. Price: $7.45 |
| 10 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 11 |
06500926 |
NUT, WHEEL .50-20 ZCC Price: $1.45 |
| 12 |
07101226 |
ASM, WHL/TIRE 13X6.50-6 Price: $120.95 |
| 13 |
07101224 |
ASM, WHL/TIRE 22X10.00-12 K500 Price: $239.95 |
| 14 |
00531400 |
BEARING SEAL 1.5 X 2 X .18 Price: $9.45 |
| 15 |
04720200 |
SPCR, CASTER FORK (1.00) Price: $20.45 |
