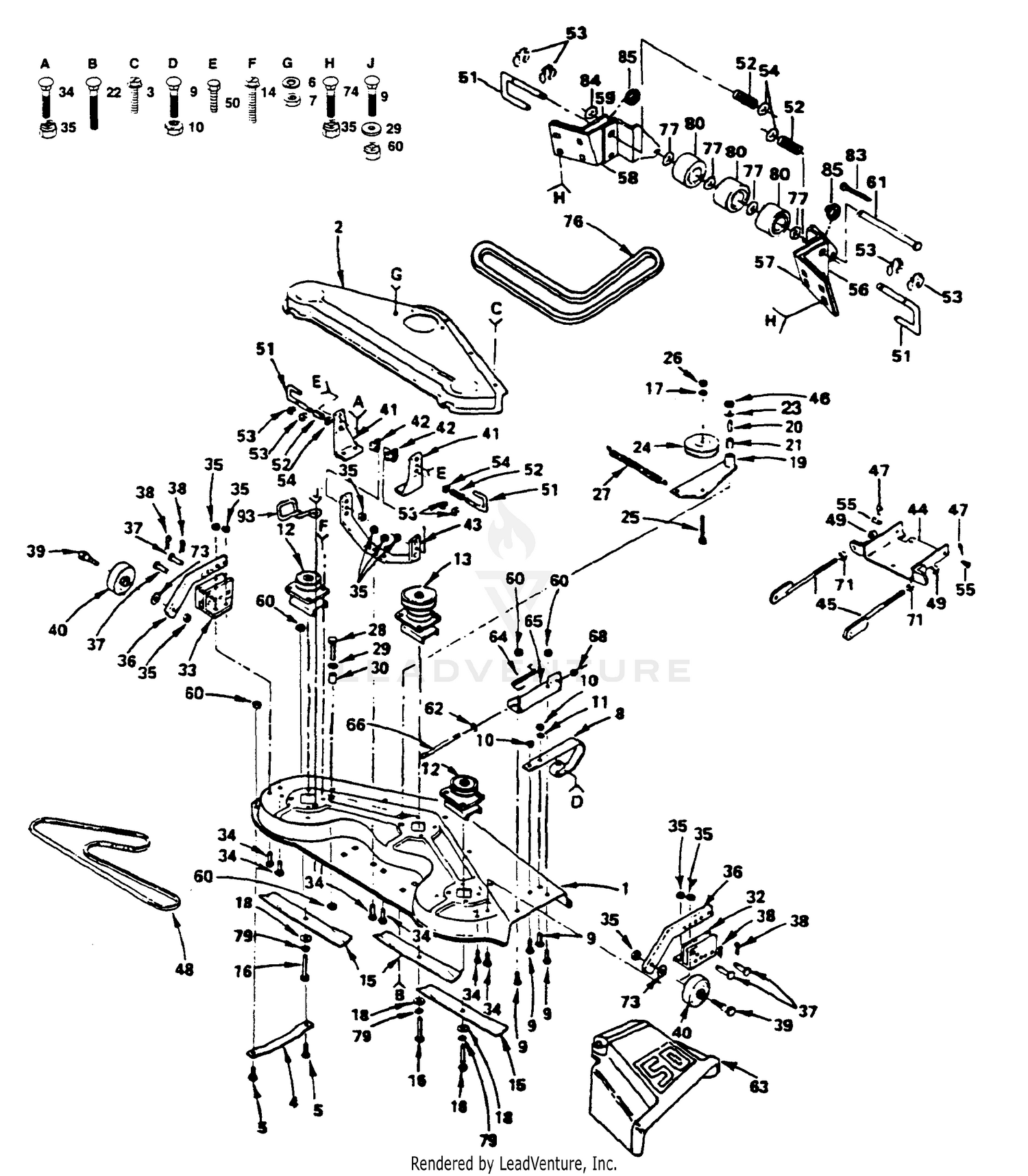

| Ref | Part Number | Description |
|---|
| 1 |
532123760 |
This part replaces 532121664. Price: $302.55 |
| 1 |
62-5550 |
DECAL Price: $9.32 |
| 2 |
532121811 |
Cover, Drive, Deck Price: $68.99 |
| 2 |
93-7996-01 |
COVER-TOWER Price: $64.83 |
| 3 |
106-5950 |
RH FENDER ASM Price: $661.25 |
| 3 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 4 |
105-3301 |
LATCH ASM Price: $44.73 |
| 4 |
532007631 |
Runner, Mower LH This part replaces 532125074. Price: $11.99 |
| 5 |
872110505 |
Bolt, Carriage 5/16-18 x 5/8 Price: $3.49 |
| 6 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 6 |
810040500 |
Washer, Lock 5/16 Price: $2.99 |
| 7 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 7 |
873220500 |
Nut, Hex 5/16-18 Price: $3.99 |
| 8 |
3269-8 |
RIVET-BLIND Price: $0.51 |
| 8 |
532136320 |
Runner, RH This part replaces 532120449. Price: $7.99 |
| 9 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 9 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 10 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 10 |
532124949 |
Locknut 5/16-18 Price: $3.99 |
| 11 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 11 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02 |
| 12 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 12 |
532136819 |
JACKSHAFT.2ND.44" This part replaces 532136818. Price: $78.99 |
| 13 |
532121657 |
JACKSHAFT.PRIMARY This part replaces 532121617. Price: $89.99 |
| 13 |
92-7633 |
BUMPER-HOOD Price: $18.01 |
| 14 |
106-7064 |
DECAL Price: $53.40 |
| 14 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99 |
| 15 |
105-0130 |
HOOD Price: $4,040.92 |
| 15 |
532121798 |
Blade Price: $17.99 |
| 16 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 16 |
874610624 |
Bolt, Hex 3/8-24 x 1-1/2 Grade 5 Price: $3.99 |
| 17 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 17 |
93-7582 |
HOSE Price: $6.64 |
| 18 |
819132012 |
Washer 13/32 x 1-1/4 x 12 Gauge Price: $2.99 |
| 18 |
94-2617 |
PUMP COVER ASM Price: $250.50 |
| 19 |
115-8044 |
KIT-REAR FRAME ASM This part replaces 105-0116. Price: $3,548.39 |
| 19 |
532674213 |
ARM ASSY This part replaces 532124685. Price: $11.99 |
| 20 |
532674308 |
BEARING This part replaces 532124702. Price: $13.60 |
| 20 |
72-3560 |
DECAL Price: $12.52 |
| 21 |
106-5951 |
LH FENDER ASM Price: $625.15 |
| 21 |
532674308 |
BEARING This part replaces 532007835. Price: $13.60 |
| 22 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 22 |
872110522 |
Bolt, Carriage 5/16-18 x 1-1/4 Gr. 5 Price: $2.99 |
| 23 |
108-4407 |
FRONT FRAME ASM This part replaces 106-9241. Price: $5,902.10 |
| 23 |
819111816 |
Washer 11/32 x 1-1/8 x 16 Gauge Price: Call Us |
| 24 |
532102403 |
Pulley, Idler Price: $22.99 |
| 24 |
75-1390-01 |
COVER-ACCESS, FRONT Price: $78.27 |
| 25 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 25 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $3.99 |
| 26 |
75-0630 |
TREAD-FOOT, CENTER Price: $56.24 |
| 26 |
873220600 |
Nut, Hex 3/8-16 Price: $3.99 |
| 27 |
532104361 |
Spring Price: $3.65 |
| 27 |
93-9425 |
DECAL-DANGER Price: $28.20 |
| 28 |
874520520 |
Bolt 5/16-18 x 1-1/4 This part replaces 874780520. Price: $2.99 |
| 29 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.02 |
| 30 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 30 |
532008438 |
Spacer Split Price: $2.99 |
| 31 |
66-6480 |
WASHER Price: $1.29 |
| 32 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 32 |
532105448 |
Bracket, Ga. Wheel, R.H. Price: $10.51 |
| 33 |
32128-20 |
NUT-HF Price: $0.99 |
| 33 |
532105449 |
Bracket, Ga. Wheel, L.H. Price: $10.51 |
| 34 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 34 |
872240606 |
Bolt, Carriage 3/8-16 x 3/4 Price: $2.99 |
| 35 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 35 |
99-8970 |
KEY-LATCH, HOOD Price: $15.13 |
| 36 |
532105453 |
Bar, Ga. Wheel Price: $14.99 |
| 36 |
98-9321 |
RING-KEY Price: $1.80 |
| 37 |
532139031 |
Pin, Clevis Price: $3.99 |
| 37 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 38 |
104-1453 |
GROMMET Price: $6.57 |
| 38 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 39 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8 This part replaces 532137644. Price: $1.99 |
| 40 |
106-6754 |
DECAL-DANGER Price: $9.57 |
| 40 |
532133957 |
Wheel, Gauge Price: $9.99 |
| 41 |
532105433 |
Bracket, Suspension Price: $4.99 |
| 42 |
532110237 |
Spacer Price: $3.99 |
| 43 |
532105434 |
Brace, Suspension Price: $7.99 |
| 44 |
532140741 |
Plate Assembly, Mower Suspension Price: $33.99 |
| 45 |
532109771 |
Bracket, Suspension Price: $16.99 |
| 46 |
873220500 |
Hex, Nut 5/16-18 This part replaces 873350500. Price: $3.99 |
| 47 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 48 |
532003703 |
V-Belt Price: $44.99 |
| 49 |
873350800 |
Nut Jam Hex 1/2-13 Unc This part replaces 873680800. Price: $1.99 |
| 50 |
874760622 |
Bolt, Hex 3/8-16 x 1-3/8 Price: $2.99 |
| 51 |
532105435 |
Pin, Release Price: $10.21 |
| 52 |
532003720 |
Spring Price: $3.99 |
| 53 |
812000039 |
Ring, Klip Price: $3.99 |
| 54 |
532052160 |
Washer This part replaces 819171612. Price: $3.99 |
| 55 |
532105440 |
Pin, Clevis Price: $4.62 |
| 56 |
532105458 |
Bracket, Outer, R.H. Price: $3.74 |
| 57 |
532109773 |
Bracket, Inner, R.H. Price: $18.98 |
| 58 |
532110997 |
Bracket, Inner, L.H. Price: $15.76 |
| 59 |
532120000 |
Bracket, Outer, L.H. Price: $4.99 |
| 60 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 61 |
532109776 |
Pin, Pivot Price: $8.99 |
| 62 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02 |
| 63 |
532110509 |
Shield, Deflector Price: $22.99 |
| 64 |
532123713 |
Spring, Torsion Deflector This part replaces 532106734. Price: $3.99 |
| 65 |
532137607 |
Bracket Assembly, Deflector This part replaces 532109743. Price: $3.99 |
| 66 |
532106735 |
Rod, Hinge Price: $4.99 |
| 68 |
532110452 |
Nut, Push Price: $1.99 |
| 71 |
873350800 |
Nut Jam Hex 1/2-13 Unc This part replaces 873220800. Price: $1.99 |
| 73 |
819171512 |
Washer 17/32 x 15/16 x 12 Gauge Price: $3.99 |
| 74 |
872240608 |
Bolt, Carriage 3/8-16 x 1 Price: $2.99 |
| 76 |
532110884 |
V-Belt Price: $19.99 |
| 77 |
532052160 |
Washer This part replaces 819151610. Price: $3.99 |
| 79 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 80 |
532109729 |
Roller, Nose Price: $6.99 |
| 83 |
876020412 |
Pin Cotter Price: $3.99 |
| 84 |
532052160 |
Washer This part replaces 819151616. Price: $3.99 |
| 85 |
532120135 |
Spacer Price: $2.42 |
| 93 |
532121352 |
Keeper, L.H. Price: $3.00 |
