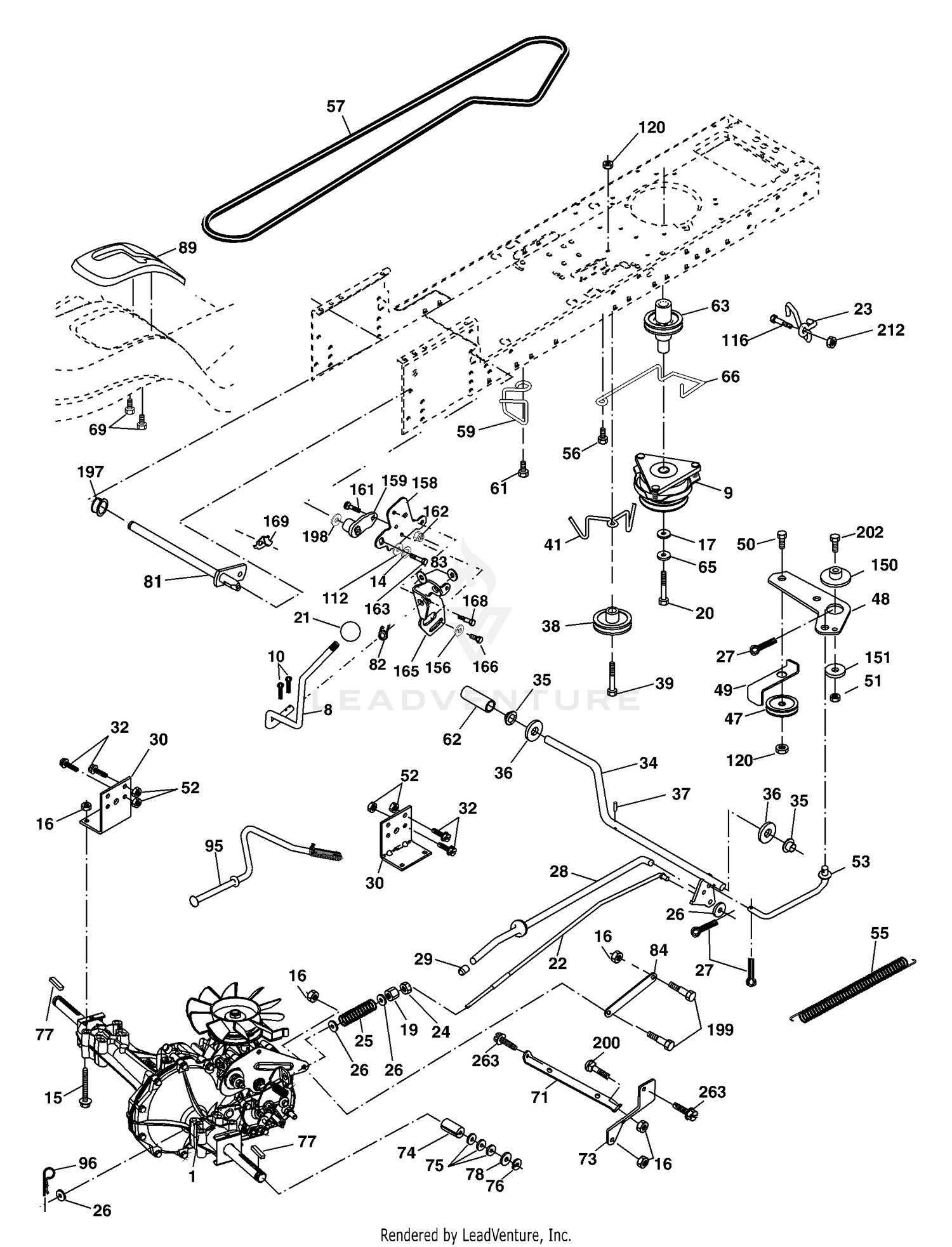

| Ref | Part Number | Description |
|---|
| 1 |
108-9914 |
DISCONTINUED Price: Call Us |
| 2 |
108-9912 |
MUFFLER Price: $656.84 |
| 3 |
108-9841 |
HOSE-AIR INLET, TURBO Price: $59.95 |
| 4 |
110-5545 |
DECAL-HOOD Price: $61.53 |
| 5 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 6 |
112-6368-03 |
SHIELD-HEAT Price: $44.31 |
| 7 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 8 |
32105-2 |
SCREW-SHWH Price: $3.49 |
| 8 |
532165866 |
Rod Shift Fender Price: $22.99 |
| 9 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 9 |
532414336 |
KIT.SVC.CLUTCH.ELE.LT48 This part replaces 532179334. Price: $265.99 |
| 10 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 10 |
876020416 |
Pin Cotter 1/8 x 1 CAD Price: $3.99 |
| 14 |
810040400 |
Washer Lock Hvy Helical Price: $3.99 |
| 15 |
874490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: $2.99 |
| 16 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 unc Price: $2.69 |
| 17 |
532126197 |
Washer 1-1/2 OD x 15/32 ID x .250 Price: $4.99 |
| 19 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 20 |
532150280 |
SUB= 150280 This part replaces 532173937. Price: $3.99 |
| 21 |
532140845 |
Knob Price: $8.99 |
| 22 |
532169498 |
Rod, Brake Hydro Price: $11.99 |
| 23 |
532190736 |
Bracket Anti-Rot This part replaces 532178289. Price: $4.99 |
| 24 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 26 |
819131316 |
Washer Price: $2.99 |
| 27 |
876020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: $3.99 |
| 28 |
532175765 |
Rod, Parking Brake Price: $3.99 |
| 29 |
532071673 |
Cap, Parking Brake Price: $3.99 |
| 30 |
532169592 |
Bracket, Transaxle Price: $3.99 |
| 32 |
539976934 |
HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99 |
| 34 |
532175578 |
Shaft, Foot Pedal Nibbed Price: $19.99 |
| 35 |
532120183 |
Bearing, Nylon Price: $2.99 |
| 36 |
819211616 |
Washer Price: $3.99 |
| 37 |
532002882 |
DRIVE PIN This part replaces 532124963. Price: $2.99 |
| 38 |
532179114 |
Pulley, Idler, Flat Composite Price: $19.99 |
| 39 |
872110622 |
Bolt 3/8-16 x 2-3/4 Gr. 5 Price: $3.99 |
| 41 |
532175556 |
Keeper, Belt Idler Fool-Proof Price: $5.99 |
| 47 |
532139245 |
Pulley, Idler V Groove This part replaces 532127783. Price: $22.99 |
| 48 |
532154407 |
Bellcrank Clutch Grnd Drv Stl Price: $4.99 |
| 49 |
532123205 |
Retainer, Belt Price: $3.99 |
| 50 |
872110612 |
Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5 Price: $3.99 |
| 51 |
873680600 |
Nut Price: $1.99 |
| 52 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
Spring, Return, Clutch Price: $7.99 |
| 56 |
817060620 |
Screw 3/8-16 x 1-1/4 Price: $3.99 |
| 57 |
532140294 |
V-Belt, Ground Drive Price: $25.99 |
| 59 |
532169691 |
Keeper, Center Span Price: $14.99 |
| 61 |
817490614 |
Screw Hex Thdrol. 3/8-16 x 7/8 This part replaces 817120614. Price: Call Us |
| 62 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 63 |
532174607 |
Pulley, Engine Price: $37.99 |
| 65 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 66 |
532154778 |
Keeper Belt Engine Hydro Price: $8.99 |
| 69 |
532142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 unc Price: $3.99 |
| 71 |
532169183 |
Strap Torque Lh Hydro Price: $4.99 |
| 73 |
532169182 |
Strap Torque Rh Hydro Price: $7.99 |
| 74 |
532137057 |
Spacer, Axle Price: $3.99 |
| 75 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 76 |
812000001 |
E-Ring Price: $2.99 |
| 77 |
532123583 |
Key, Square Price: $2.69 |
| 78 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 81 |
532165596 |
Shaft Asm. Cross Hydro Price: $25.99 |
| 82 |
532165711 |
Spring Torsion T/A Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532169594 |
Link Transaxle Price: $4.99 |
| 89 |
532188309 |
CONSOLE.SHIFT.STL.AUTO.GREY This part replaces 532191816. Price: $8.99 |
| 95 |
532170201 |
Control Asm. Bypass Hydro Price: $7.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 112 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 116 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 120 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 150 |
532175456 |
Spacer Retainer Price: $3.99 |
| 151 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 156 |
532166002 |
Washer Srrted 5/16 ID x 1.125 Price: $3.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $3.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $4.99 |
| 161 |
872110407 |
BOLT, HEX HEAD This part replaces 872140406. Price: $2.99 |
| 162 |
873680400 |
Nut Crownlock 1/4-20 unc Price: $2.69 |
| 163 |
874780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: $3.99 |
| 165 |
532438250 |
BRACKET.PIVOT.LEVER This part replaces 532165623. Price: $4.99 |
| 166 |
817490510 |
Screw 5/16-18 x 5/8 Price: $2.99 |
| 168 |
532165492 |
Bolt Shoulder 5/16-18 x .561 Price: $3.99 |
| 169 |
532165580 |
Plate Fastening Lt\ Price: $3.99 |
| 197 |
532169613 |
Nyliner Snap-In 5/8" ID Price: $3.99 |
| 198 |
532169593 |
Washer Nyliner 7/8 ID x .105 Price: $4.99 |
| 199 |
532169612 |
Bolt Shoulder 5/16-18 unc Price: $3.99 |
| 200 |
872140508 |
Bolt Rdhd Sq Neck 5/16-18 unc x 1 Price: $2.99 |
| 202 |
872110614 |
Bolt 3/8-16 x 1-3/4 Gr. 5 Price: $3.99 |
| 212 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49 |
