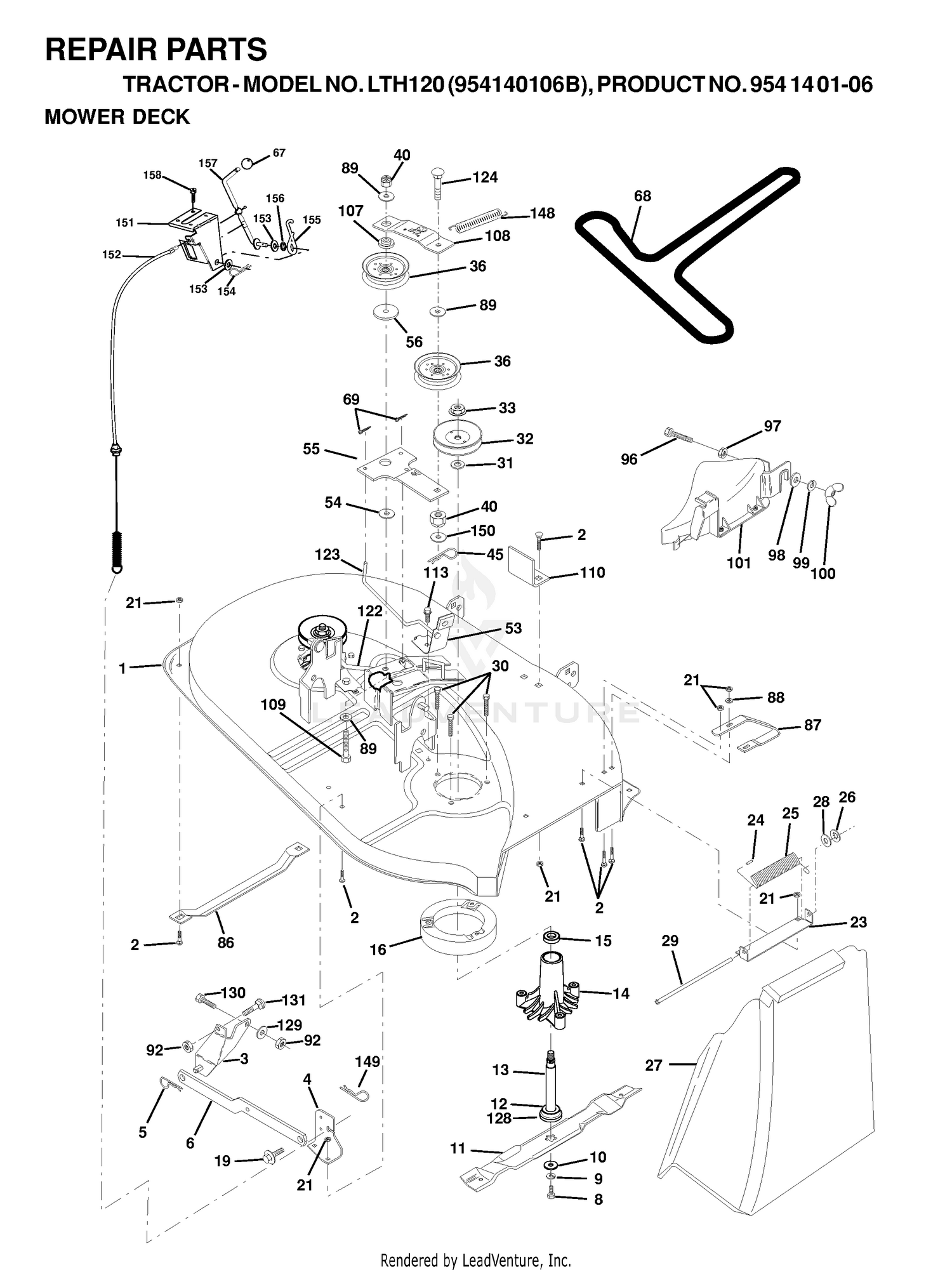

| Ref | Part Number | Description |
|---|
| 1 |
117-4760-01 |
SUPPORT-ROLLER Price: $306.77 |
| 1 |
532176028 |
DECK.SVC.38".BLACK This part replaces 532170280. Price: $249.99 |
| 2 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 3 |
87-3470 |
BUMPER Price: $18.89 |
| 4 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 4 |
532169970 |
BRACKET DECK SWAY BAR 38/42" Price: $5.99 |
| 5 |
105-3996-01 |
SUPPORT-ROLLER Price: $141.71 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
325-22 |
SCREW-HH Price: $4.26 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 7 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 8 |
325-20 |
SCREW-HH Price: $6.29 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
105-3970 |
SPRING-COMPRESSION Price: $46.60 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
105-9816 |
ROLLER-PLASTIC Price: $47.03 |
| 11 |
532134148 |
BLADE 38" V MULCH Price: $22.99 |
| 12 |
104-5545 |
SHAFT-ROLLER Price: $35.54 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
115-9137 |
SHROUD-PLATFORM Price: $443.77 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
32104-17 |
SCREW-HWH Price: $0.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 16 |
94-9024 |
LAMP ASM Price: $157.81 |
| 17 |
3230-7 |
BOLT-CARR Price: $0.88 |
| 18 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 19 |
93-6028 |
PLATE-LOGO Price: $13.70 |
| 20 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 21 |
136-2923 |
SPACER-CENTERING Price: $28.02 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
531155201 |
SERVICE KIT BRACKET BRACKET This part replaces 532137607. Price: $2.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 29 |
532106735 |
ROD-HINGE T Price: $8.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532157722. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 36 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 53 |
531165101 |
SERVICE KIT BRAKE ASSEMBLY BRA This part replaces 532130840. Price: $6.99 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 55 |
531164901 |
SERVICE.KIT IDLER ARM This part replaces 532133840. Price: $11.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER Price: $5.99 |
| 67 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 68 |
532144200 |
V-BELT TRIPATH Price: $39.99 |
| 69 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 86 |
532007631 |
RUNNER LH This part replaces 532125074. Price: $14.99 |
| 87 |
532128772 |
RUNNER.RH.38 Price: $6.99 |
| 88 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 89 |
596140201 |
Washers This part replaces 819131612. Price: $2.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 96 |
874930620 |
Bolt, Hex Head 3/8-16 x 1-1/4 Price: $3.99 |
| 97 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 98 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 99 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 100 |
532135651 |
WING NUT Price: $3.99 |
| 101 |
532132803 |
COVER.MULCHING.38" (2 2) Price: $54.99 |
| 107 |
532133502 |
SPACER.IDLER.ARM Price: $4.99 |
| 108 |
531150801 |
SERVICE KIT STIFFENER STIFFENE This part replaces 532133503. Price: $6.99 |
| 109 |
874760640 |
Bolt Hex Fin 3/8-16 UNC x 2-1/2 Price: $3.99 |
| 110 |
532142587 |
UPSTOP DECK FRONT 38" Price: $2.64 |
| 113 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 122 |
532131289 |
BRAKE ROD LH Price: $12.99 |
| 123 |
532169971 |
ROD.BRAKE.MANDREL.RH Price: $6.99 |
| 124 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 128 |
532153390 |
WASHER FELT Price: $3.99 |
| 129 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 130 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 131 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $4.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 151 |
532169670 |
BRACKET.CLUTCH.CABLE Price: $17.99 |
| 152 |
532172758 |
CLUTCH CABLE 38"/46" Price: $54.99 |
| 153 |
596140201 |
Washers This part replaces 532169674. Price: $2.99 |
| 154 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 155 |
532169671 |
SPRING RETENTION LEVER Price: $4.99 |
| 156 |
532169672 |
SPACER.CLUTCH.CABLE Price: $4.99 |
| 157 |
532169669 |
ROD CLUTCH CABLE 3/8" Price: $27.99 |
| 158 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
