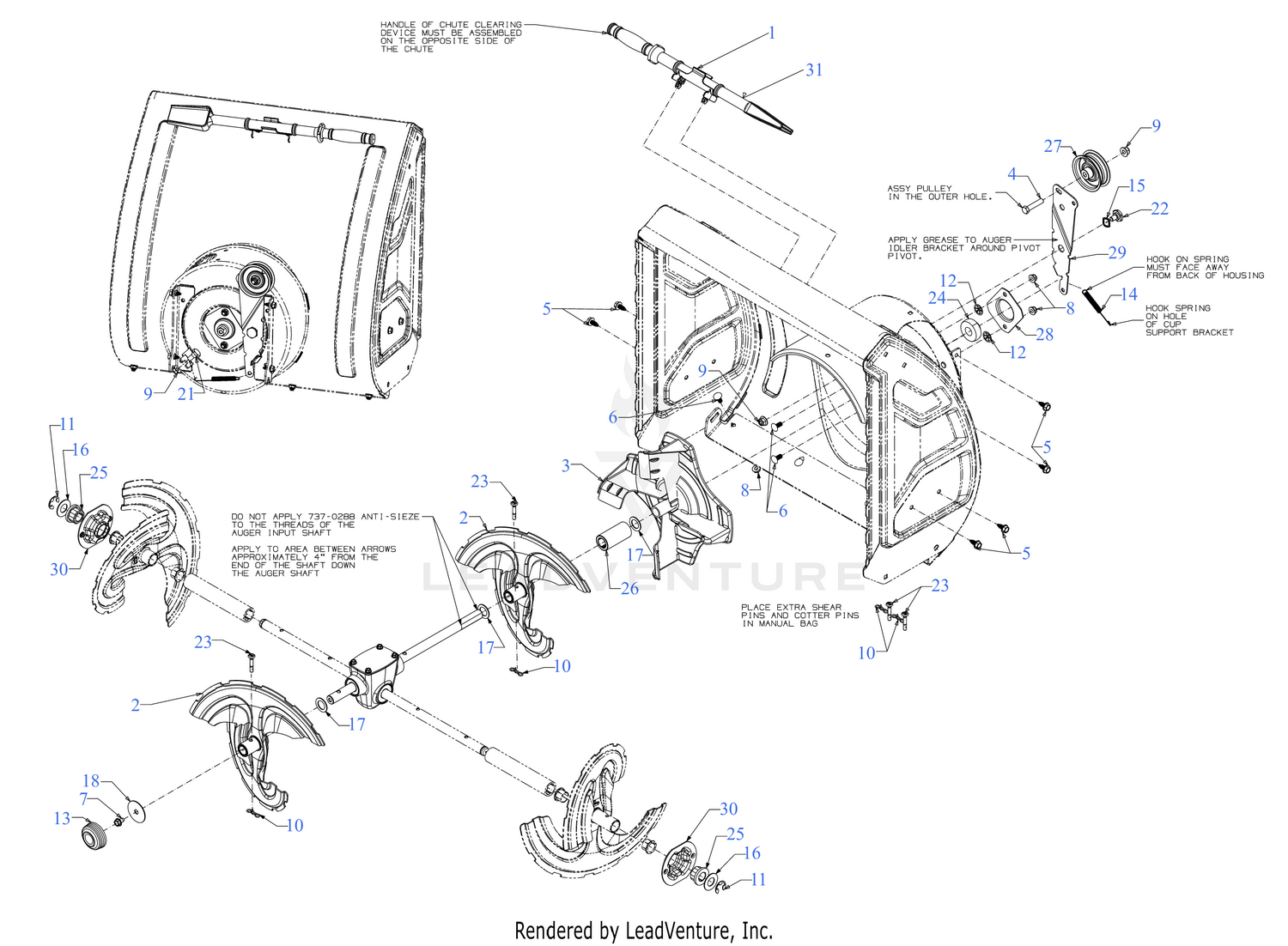

| Ref | Part Number | Description |
|---|
| 1 |
731-11421 |
CLEANOUT TOOL MOUNTING CLIP Price: $9.83 |
| 4 |
710-0347 |
HEX SCREW 3/8-16 x 1.75 GR5 Price: $4.39 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 7 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 8 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 9 |
712-04065 |
NUT Price: $3.68 |
| 10 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 11 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 12 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 13 |
731-08637A |
CAP Price: $4.69 |
| 14 |
732-04460 |
EXTENSION SPRING .38 OD x 4.59 Price: $4.69 |
| 15 |
736-0174 |
WAVE WASHER .660 ID X.88 OD x .010 Price: $5.94 |
| 16 |
736-0188 |
FLAT WASHER .760ID X1.49OD x .06 Price: $3.75 |
| 17 |
736-0287 |
Washer, Flat, .793 x 1.24 x .060 This part replaces 936-0287. Price: $3.93 |
| 18 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 21 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 22 |
738-0281 |
Screw, Shoulder, .625 x .17, 3/8-16 This part replaces 938-0281. Price: $9.16 |
| 23 |
490-241-Y062 |
Troy-Bilt SHEAR PINS (3X SNOW) Not Available Price: |
| 23 |
738-05273 |
SHEAR PIN (.25 x 1.50) Price: $2.11 |
| 23 |
753-10904 |
KIT-SHEAR PIN 3 STAGE (05273/06654) Price: $18.26 |
| 24 |
941-0309 |
BEARING W/OUT COLLAR Price: $69.59 |
| 25 |
741-05041 |
FLANGE BEARING Price: $8.37 |
| 26 |
750-06274A |
SPACER Price: $15.80 |
| 27 |
756-04224 |
FLAT IDLER PULLEY 2.75 OD Price: $24.80 |
| 28 |
790-00075B |
BEARING HOUSING 1.85 ID This part replaces 790-00075A. Price: $5.66 |
| 29 |
790-00080D |
AUGER IDLER BRACKET Price: $25.44 |
