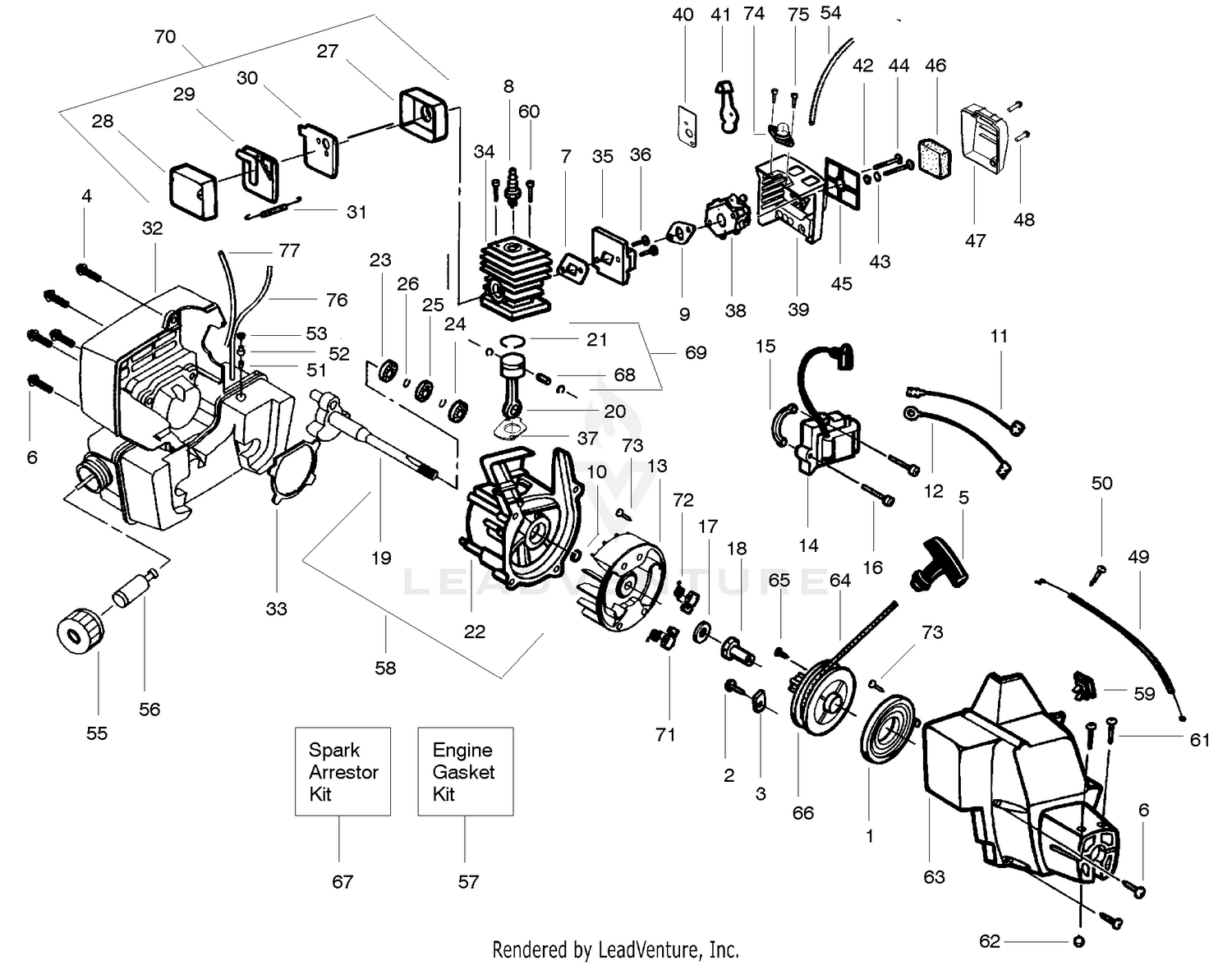

| Ref | Part Number | Description |
|---|
| 1 |
545008010 |
STARTER SPRING This part replaces 530029395. Price: $3.99 |
| 2 |
530015775 |
Screw Price: $1.99 |
| 3 |
530027523 |
Retainer Price: $2.99 |
| 4 |
530015934 |
Screw Price: $1.99 |
| 5 |
530027569 |
Starter Handle Price: $1.99 |
| 6 |
530016386 |
Screw This part replaces 530015810. Price: $5.99 |
| 7 |
530019233 |
Cylinder Gasket Price: $1.99 |
| 8 |
952030201 |
Spark Plug (RCJ-8Y) This part replaces 952030078. Price: Call Us |
| 9 |
530019194 |
Gasket Price: $1.99 |
| 10 |
530015941 |
Retainer Price: $1.99 |
| 11 |
530014663 |
Lead Wire Price: $5.99 |
| 12 |
530014662 |
Ground Wire Price: $4.99 |
| 13 |
530054115 |
Assy-Flywheel This part replaces 530039149. Price: $27.99 |
| 14 |
530039163 |
Ignition Module Price: $34.99 |
| 15 |
530036145 |
Spacer Price: $1.99 |
| 16 |
530015954 |
Screw Price: $1.99 |
| 17 |
530015828 |
Washer Price: $1.99 |
| 18 |
530027953 |
Drive Coupling Price: $1.99 |
| 19 |
530014532 |
Crankshaft Ass'y. Price: Call Us |
| 20 |
530069615 |
Connecting Rod Price: $14.99 |
| 21 |
530036404 |
Piston Ring Price: $4.99 |
| 22 |
530014861 |
Crankcase Ass'y. Price: $37.77 |
| 23 |
738210101 |
BEARING BALL 6001 This part replaces 530032125. Price: $8.99 |
| 24 |
530032124 |
Outer Bearing Price: $4.99 |
| 25 |
530019179 |
C'case Seal Price: $2.99 |
| 26 |
530015945 |
Retaining Ring Price: $1.99 |
| 27 |
530036578 |
Muffler Body Price: $2.99 |
| 28 |
530036577 |
Muffler Cover Price: $2.99 |
| 29 |
530038602 |
Muffler Baffle-Exit Price: $1.99 |
| 30 |
530036579 |
Muffler Baffle-First Price: $2.99 |
| 31 |
530016197 |
Spring-Muffler Old Style This part replaces 530029930. Price: $1.99 |
| 32 |
530014852 |
Shroud & Tank Assy. Type 1 Price: $3.33 |
| 32 |
530047091 |
Shroud & Tank Assy. Type 2 & 3 Price: $13.04 |
| 33 |
530-019181 |
Gasket Price: $1.99 |
| 34 |
530069769 |
CARB ADAPTOR KIT This part replaces 530069564. Price: $24.99 |
| 36 |
530016014 |
Screw Price: $1.99 |
| 37 |
530019223 |
Gasket Price: $1.99 |
| 38 |
530035308 |
Carburetor Type 1 (WA-215) Price: $41.99 |
| 38 |
530071639 |
CARBURETOR This part replaces 530069647. Price: $54.99 |
| 39 |
530037390 |
Air Box Type 1 Price: $3.33 |
| 39 |
530037971 |
Air Box Type 2 & 3 Price: $3.99 |
| 40 |
530037326 |
Choke Plate Price: $1.99 |
| 41 |
530038102 |
Choke Shutter Price: $1.99 |
| 42 |
530015254 |
Wave Washer Price: $1.99 |
| 43 |
530015852 |
Choke Spacer Price: $1.99 |
| 44 |
530015887 |
Screw Price: $1.99 |
| 45 |
530037413 |
Filter Plate Price: $1.99 |
| 46 |
530037331 |
Air Filter Foam Price: $1.99 |
| 47 |
530037292 |
Air Filter Cover Price: $1.99 |
| 48 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 49 |
530071548 |
THROTTLE KIT This part replaces 530036744. Price: $3.99 |
| 50 |
530015814 |
Screw Price: $1.49 |
| 51 |
530026119 |
Check Valve Price: $1.99 |
| 52 |
530029717 |
Element Price: $1.24 |
| 53 |
530029696 |
Retainer Price: Call Us |
| 54 |
530069571 |
Fuel Line-Prim./Carb Price: $2.99 |
| 55 |
530014347 |
Fuel Cap Ass'y. Price: $4.49 |
| 56 |
530095646 |
Assy-Fuel Pick-up This part replaces 530014362. Price: $2.69 |
| 59 |
530069572 |
On/Off Switch Price: $4.99 |
| 60 |
530015953 |
Screw Price: $1.99 |
| 61 |
530016072 |
Screw Price: $1.99 |
| 62 |
530015768 |
Locknut Price: $1.99 |
| 63 |
530014921 |
Fan Housing Price: $18.99 |
| 64 |
530069232 |
Rope Kit Price: $3.99 |
| 65 |
530016080 |
Screw Price: $1.99 |
| 66 |
530071786 |
Kit-Pulley-Starter This part replaces 530069400. Price: $3.99 |
| 67 |
530069380 |
Spark Arrestor Kit Price: $3.99 |
| 68 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 70 |
530069660 |
Muffler Kit Price: $11.99 |
| 71 |
530029939 |
Starter Dog Price: Call Us |
| 72 |
530047570 |
Starter Spring Price: $1.99 |
| 73 |
530015882 |
Screw-Flywheel Price: $1.99 |
| 74 |
530038874 |
Primer Bulb Ass'y. Type 2 & 3 Price: $5.99 |
| 75 |
530015780 |
Screw This part replaces 530016090. Price: $1.99 |
| 76 |
530069216 |
Fuel Line-Prim./Tnk. Price: $3.99 |
