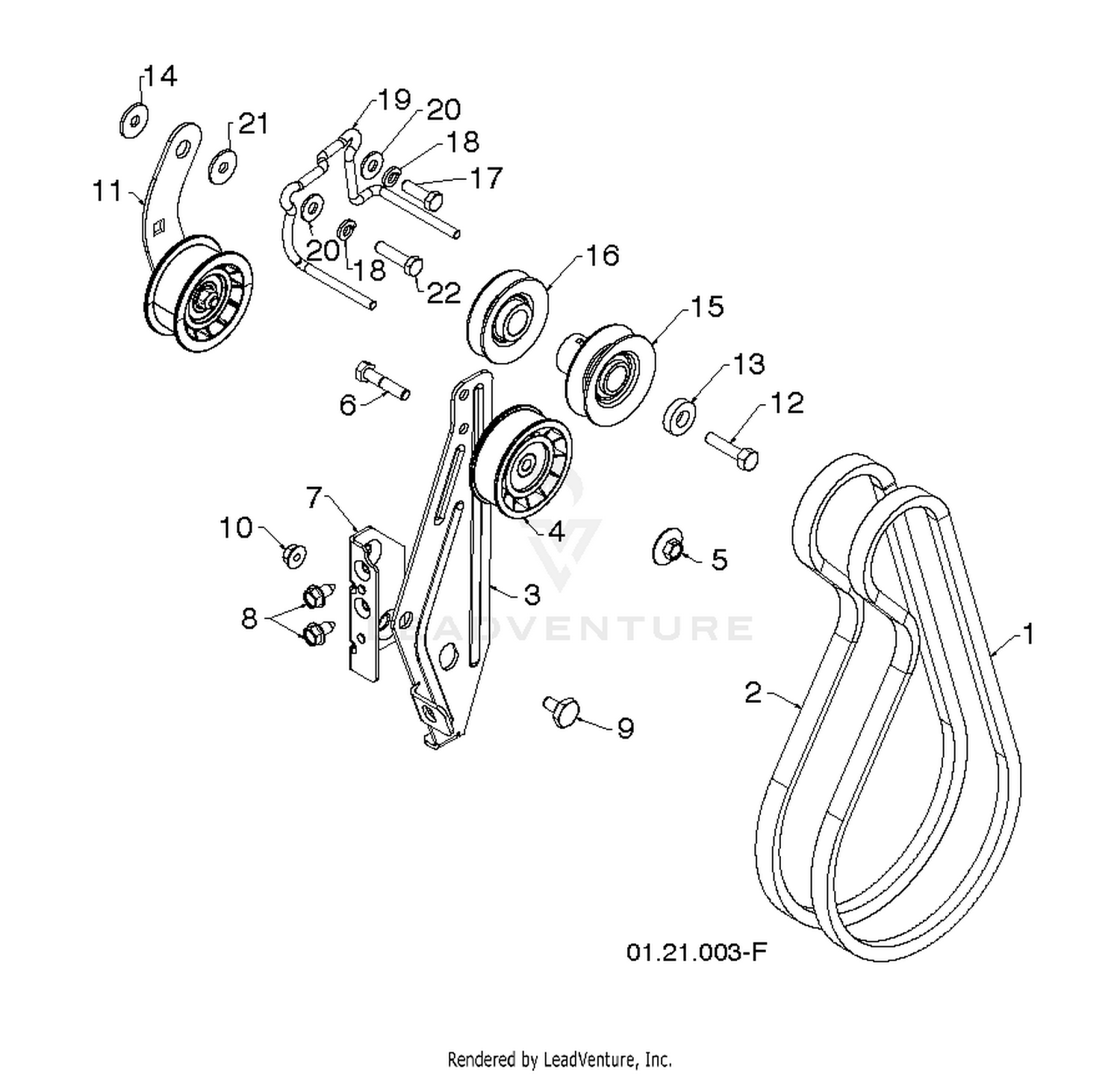

| Ref | Part Number | Description |
|---|
| 1 |
532408007 |
BELT.V.IMPELLER Price: $29.99 |
| 2 |
532419744 |
V-BELT TRACTION 34.25 Price: $22.99 |
| 3 |
104-3396 |
SCREW-HH Price: $0.75 |
| 3 |
584232402 |
ARM.IDLER BRAKE.CLEAR.ZINC Price: $11.99 |
| 4 |
532180523 |
PULLEY.W/SPACER.2.75 Price: $17.99 |
| 4 |
99-8662 |
TUBE-SPRING Price: $21.55 |
| 5 |
3218-5 |
NUT-JAM Price: $0.27 |
| 5 |
532426589 |
NUT.FLANGE.HEX.5/16X18.BLACK Price: $2.99 |
| 6 |
539976935 |
CAPSCREW 5/16 X 1/1/2 HEX HEAD This part replaces 874780524. Price: $1.99 |
| 6 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
532423990 |
RP.BRACKET.IDLER.PIVOT.BLACK This part replaces 585284901. Price: $3.99 |
| 8 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 9 |
112-1725 |
SPRING-COMPRESSION Price: $14.14 |
| 9 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $2.99 |
| 10 |
532751153 |
NUT.LOCK.5/16-18 Price: $1.99 |
| 11 |
585238401 |
ARM.ASM.TRACTION.IDLER.SNOW Price: $27.99 |
| 12 |
110-4069 |
BRACKET Price: $5.57 |
| 12 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.99 |
| 13 |
532400026 |
WASHER, FLAT 3/8 Price: $2.99 |
| 14 |
532059289 |
STEEL WASHER Price: $2.99 |
| 14 |
92-2762 |
PIN-HAIR Price: $1.09 |
| 15 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 15 |
532426491 |
PULLEY.IMPELER. Price: $14.99 |
| 16 |
532426490 |
PULLEY.ENG.TRACTION Price: $11.99 |
| 17 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 17 |
874610516 |
SCREW Price: $2.99 |
| 18 |
110-4058 |
BRACKET-CHAIN Price: $32.43 |
| 18 |
810040500 |
LOCKWASHER Price: $2.99 |
| 19 |
112-1703 |
FRAME Price: $330.04 |
| 19 |
585540501 |
GUIDE.BELT.CHAIN.LS.SNOW This part replaces 585058201. Price: $9.99 |
| 20 |
107-2979 |
BOLT-SHOULDER Price: $3.94 |
| 20 |
532155415 |
WASHER.20X8.5 Price: $3.99 |
| 21 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 21 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $1.99 |
| 22 |
67-9410 |
WASHER Price: $2.04 |
| 23 |
108-4279 |
SPACER-FRAME Price: $8.34 |
| 25 |
112-1721 |
CARRIER FRAME ASM Price: $404.76 |
