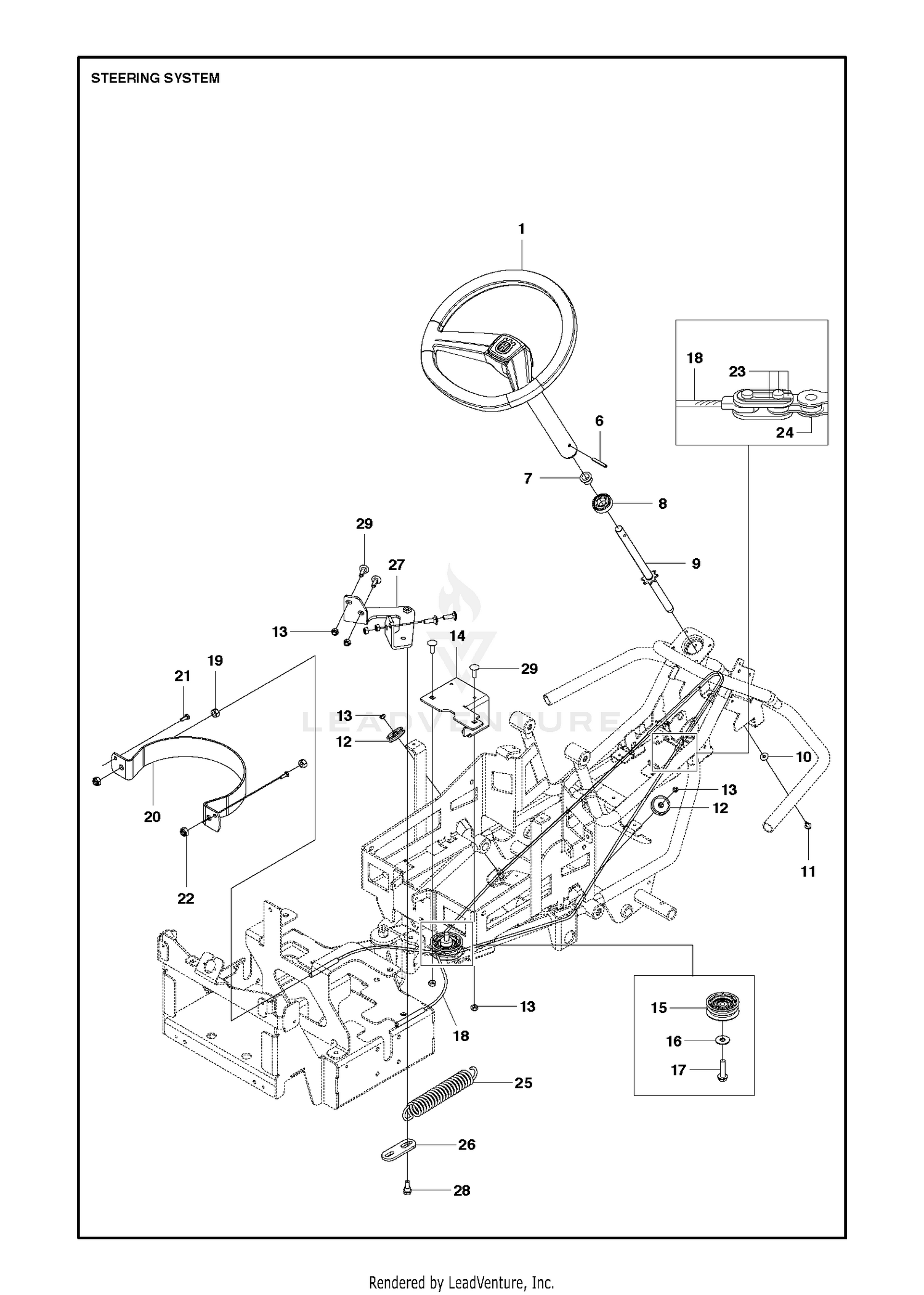

STEERING
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 581193701 | STEERING SYSTEM Price: $79.99 |
| 6 | 721434701 | PIN Price: $2.99 |
| 7 | 506887801 | SPACER Price: $7.99 |
| 8 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 9 | 581566701 | STEERING ROD Price: $44.99 |
| 10 | 734115441 | WASHER - 26X6.5X1.6 Price: $0.99 |
| 10 | 98-9620 | OVERFLOW PIPE ASM Price: $44.29 |
| 11 | 535475212 | SCREW EHHFM Price: $2.99 |
| 12 | 581158201 | PULLEY Price: $5.99 |
| 13 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 14 | 578184001 | NEEDS DESCRIPTION Price: Call Us |
| 15 | 576492502 | PULLEY Price: $27.99 |
| 17 | 506675402 | BOLT Price: $5.99 |
| 18 | 501604801 | WIRE ASSY This part replaces 577199901. Price: $24.99 |
| 19 | 731232001 | Nut Price: $3.99 |
| 20 | 525404301 | GUIDE RAIL Price: $17.99 |
| 20 | 98-9431 | SCREW-BLEEDER, AIR Price: $15.04 |
| 21 | 535475212 | SCREW EHHFM This part replaces 725236861. Price: $2.99 |
| 22 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 23 | 506554701 | LINK Price: $4.99 |
| 24 | 506554601 | STEERING CHAIN Price: $17.99 |
| 25 | 506671901 | SPRING Price: $22.99 |
| 26 | 578184301 | NEEDS DESCRIPTION Price: Call Us |
| 27 | 578184101 | NEEDS DESCRIPTION Price: Call Us |
| 28 | 506597401 | BOLT Price: $5.99 |
| 29 | 535423801 | BOLT Price: $4.99 |
| 30 | 98-7654 | GASKET Price: $8.84 |
| 40 | 98-9420 | OVERFLOW PIPE ASM Price: $3.91 |
| 45 | 112-0182 | PIPE-OVERFLOW Price: $3.78 |
| 50 | 98-7671 | CLIP-PIPE Price: $2.39 |
| 60 | 115-3018 | NOZZLE HOLDER KIT Price: $440.14 |
| 65 | 121-2411 | NUT Price: $6.48 |
| 70 | 98-7676 | GASKET Price: $2.73 |
| 80 | 98-7677 | SEAL-HEAT Price: $10.17 |
| 90 | 98-9653 | PIPE-INJECTION Price: $69.17 |
| 100 | 98-9654 | PIPE-INJECTION Price: $76.86 |
| 110 | 98-9655 | PIPE-INJECTION Price: $82.26 |
| 120 | 98-7682 | CLAMP-PIPE Price: $6.37 |
| 130 | 98-7683 | CLAMP-PIPE Price: $3.66 |
| 140 | 98-7684 | SCREW (W/WASHER) Price: $0.44 |
| 150 | 130-1411 | PLUG-GLOW Price: $66.46 |
| 160 | 98-9631 | CORD-PLUG, GLOW Price: $12.41 |
