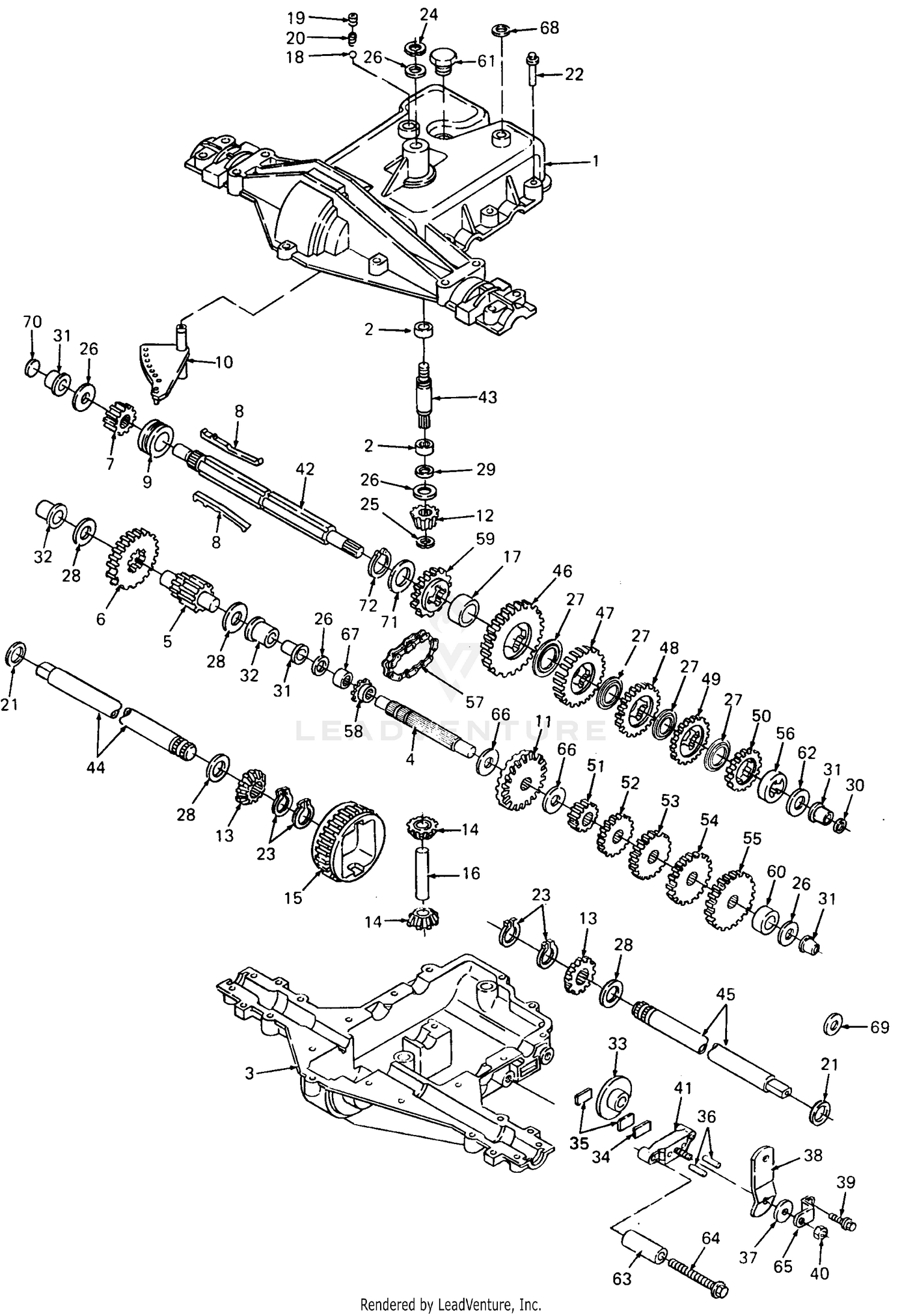

Transaxle

Transaxle

Parts (121)

RefPart NumberDescription
1 323-7 SCREW-HH Price: $0.65
1 TC-772108 COVER, TRANSAXLE Not Available Price:
2 3256-24 WASHER-FLAT Price: $0.28
2 TC-780086 THRUST BEARING Not Available Price:
3 325-5 SCREW-HH Price: $1.20
3 TC-770102 CASE, TRANSAXLE Not Available Price:
4 327-2 SCREW-HH Price: $2.44
4 TC-776260 SHAFT, COUNTER Not Available Price:
5 75-1100 AXLE SUPPORT WA *B Price: $1,097.18
5 TC-776219 SHAFT & PINION ASSY, OUTPUT Not Available Price:
6 83-5110-03 STOP-AXLE This part replaces 83-5110. Price: $42.11
6 TC-778139 GEAR-OUTPU Not Available Price:
7 3296-23 NUT-LOCK, NI Price: $0.52
7 TC-778136 SPUR GEAR (FIRST) Not Available Price:
8 3296-39 NUT-LOCK, NI Price: $2.29
8 TC-792180A KEY SET-SHIFT Not Available This part replaces TC-792136. Price:
9 237-165 GROMMET Price: $15.70
9 TC-784352 COLLAR-SHIFTER Not Available Price:
10 3272-11 PIN-COTTER Price: $0.99
10 TC-784354 ROD&FORK A Not Available Price:
11 323-9 SCREW-HH Price: $1.29
11 TC-778229 BEVEL GEAR (42 TEE Not Available Price:
12 83-5020 DISCONTINUED Price: Call Us
12 TC-778113A BEVEL GEAR-INPUT Not Available Price:
13 67-1750 BUSHING Price: $0.92
13 TC-778221 BEVEL GEAR Not Available Price:
14 56-2460 WASHER-FLAT Price: $3.32
14 TC-778068 BEVEL GEAR Not Available Price:
15 83-5040 WASHER Price: $13.13
15 TC-778260 RING GEAR Not Available Price:
16 32136-13 NUT-SHH Price: $2.85
16 TC-786139 PIN-DRIVE Not Available Price:
17 83-5100-03 DISCONTINUED This part replaces 83-5100. Price: Call Us
17 TC-786102 SPACER 1.130 x .6 Not Available Price:
18 83-5150 PIN WA Price: $46.55
18 TC-792077A BALL-5/16 GRADE 20 Not Available This part replaces TC-792077. Price:
19 32144-4 SCREW-HWH Price: $1.29
19 TC-792078 SCREW Not Available Price:
20 237-78 O-RING Price: $3.85
20 TC-792079 SPRING Not Available Price:
21 340-132 FITTING-ELBOW, 90 DEG Price: $24.64
21 TC-788061 SEAL RING Not Available Price:
22 237-21 O-RING Price: $0.70
22 TC-792073A HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price:
23 75-6230 HOSE This part replaces 75-6220. Price: $133.10
23 TC-792125 RING-RETAINER (SET Not Available Price:
24 75-6230 HOSE Price: $133.10
24 TC-792035 Ring, Retaining Not Available Price:
25 3290-378 TIE-CABLE Price: $0.79
25 TC-788040 E-RINGXT RET .521 Not Available Price:
26 82-6910 BOLT - SPECIAL Price: $27.29
26 TC-780072 THRUST WASHER Not Available Price:
27 67-9410 WASHER Price: $2.04
27 TC-780108 Washer Not Available Price:
28 83-5030 DISCONTINUED Price: Call Us
28 TC-780001 WASHER Not Available Price:
29 83-5160 SHIM - .030 Price: $6.75
29 TC-792001 RING-QUAD Not Available Price:
30 48-9480 SCREW Price: $1.97
30 TC-788051A SEAL Not Available This part replaces TC-788051. Price:
31 83-4930-03 L/H STEERING ARM ASM This part replaces 83-4930. Price: $69.13
31 TC-780105A FLANGED BUSHING Not Available Price:
32 105-7835 SEAL This part replaces 71-4760. Price: $2.76
32 TC-780118A BUSHING Not Available Price:
33 71-4740-03 RH TIE ROD END ASM This part replaces 71-4740. Price: $163.79
33 TC-790003 BRAKE-DISC Not Available Price:
34 302-55 FITTING-GREASE Price: $3.09
34 TC-790007 PLATE-BRAKE PAD Not Available Price:
35 83-5180 SHIM - AXLE Price: $13.55
35 TC-799021 BRAKE PAD KIT (1 PKG = 2 PADS ) This part replaces TC-790006. Price: $11.03
36 93-6697 DECAL-LUBE Price: $11.38
36 TC-786026 DOWEL PIN Not Available Price:
37 231-141 DISCONTINUED Price: Call Us
37 736-3078 Washer, Flat, .344 X 1.0 X.063 HDN Price: $3.95
38 241-121 WHEEL ASM This part replaces 217-121. Price: $162.77
38 TC-790004 BRAKE LEVER Not Available Price:
39 71-4450 BOLT-LUG Price: $3.29
39 TC-792073A HEX SCREW HD TAP-1 Not Available This part replaces TC-792073. Price:
40 5108 VALVE This part replaces 232-35. Price: $6.29
40 712-0237 Nut, Hex Center Lock, 5/16-24 This part replaces TC-792075. Price: $4.37
41 83-7460-03 SPACER-WHEEL This part replaces 83-7460. Price: $13.13
41 TC-790025 HOLDER-BRAKE PAD Not Available Price:
42 68-6823 STEERABLE DRIVE AXLE Price: $9,139.12
42 TC-776315A BRAKE SHAFT 4-KEYED Not Available Price:
43 5-1226 WASHER Price: $3.90
43 TC-776140 INPUT SHAFT Not Available Price:
44 75-4180-03 MASKED PIN ASM This part replaces 75-4180. Price: $136.86
44 TC-774793 AXLE (11.62 LG) Not Available Price:
45 3296-39 NUT-LOCK, NI Price: $2.29
45 TC-774794 AXLE (16.0 LG) Not Available Price:
46 83-4950-03 R/H STEERING ARM ASM This part replaces 83-4950. Price: $69.13
46 TC-778191 GEAR, SPUR (37 TEETH) Not Available Price:
47 48-9220 WASHER-PLAIN Price: $0.87
47 TC-778124A SPUR GEAR (30 TEET Not Available Price:
48 33115-025 SCREW-HH This part replaces 48-7780. Price: $0.61
48 TC-778123A SPUR GEAR (25 TEET Not Available Price:
49 302-11 FITTING-LUBE, 45 DEG Price: $1.56
49 TC-778122A SPUR GEAR (22 TEET Not Available Price:
50 TC-778121A SPUR GEAR-20T Not Available Price:
51 TC-778230 SPUR GEAR Not Available Price:
52 TC-778126A SPUR GEAR (20 TEET Not Available Price:
53 TC-778127A SPUR GEAR (25 TEET Not Available Price:
54 TC-778128A SPUR GEAR (28 TEET Not Available Price:
55 TC-778129A SPUR GEAR Not Available Price:
56 TC-786072 SPACER-BRAKE SHAFT Not Available Price:
57 TC-786081 CHAIN-ROLLER Not Available Price:
58 TC-786082 SPROCKET (9 TEET Not Available Price:
59 TC-786123 SPROCKET (18 TEETH) Not Available Price:
60 TC-786071 SPACER-COUNTERSHAF Not Available Price:
61 TC-792074 PLUG Not Available Price:
62 TC-780109 THRUST WASHER Not Available Price:
63 TC-786066 SPACER Not Available Price:
64 TC-792085A SCREW Not Available This part replaces TC-792085. Price:
65 TC-786086 BRACKET-BRAKE LEVE Not Available Price:
66 TC-780051 WASHER,THRUST Not Available Price:
67 TC-786118 SPACER Not Available Price:
68 TC-788069 SEAL-SQUARE CUT Not Available Price:
69 TC-792083 WASHER Not Available Price:
70 TC-786116A DISK Not Available This part replaces TC-786116. Price:
71 TC-780090 THRUST WASHER Not Available Price:
72 TC-788075 RETAINING RING Not Available Price:
