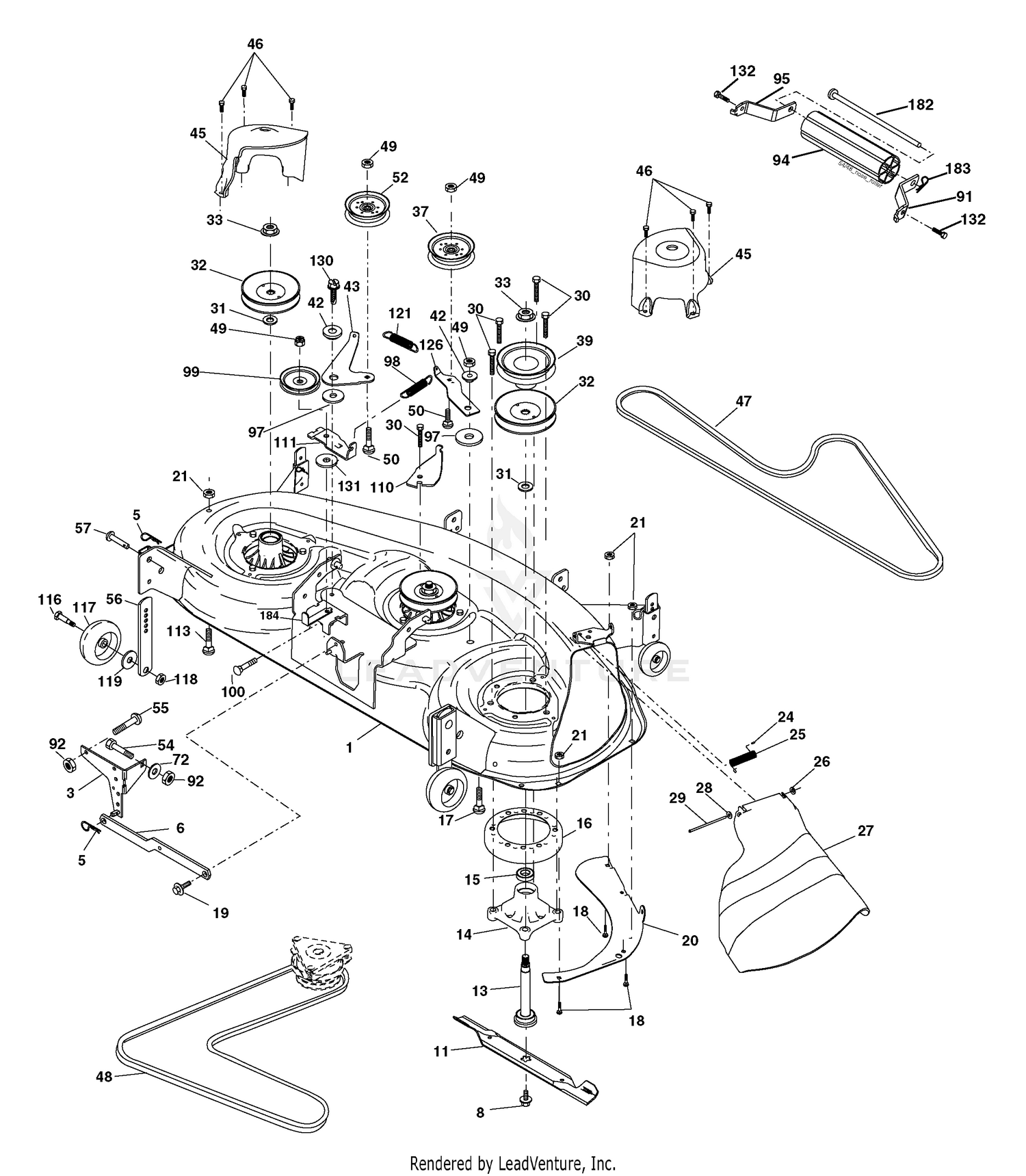

| Ref | Part Number | Description |
|---|
| 1 |
25_158_09 |
Bushing Price: Call Us |
| 1 |
532184233 |
DECK.SVC.4.GA.WHLS.48".BLK This part replaces 532181848. Price: $349.99 |
| 2 |
X-799-1 |
Palnut Price: Call Us |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 3 |
X-67-46 |
Screw-Hex. Wash. Hd. Price: Call Us |
| 4 |
232617 |
Spring-Governor Price: Call Us |
| 5 |
25_086_16 |
Screw-Hex Washer Hd. Price: Call Us |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
41_090_15 |
Lever-Governor Price: Call Us |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 7 |
2507901 |
Link-Governor Price: Call Us |
| 8 |
230476 |
Bushing Governor Price: Call Us |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 9 |
41_274_15 |
Disc-Governor Regulating Price: Call Us |
| 10 |
41_079_02 |
Link-Throttle Control to Disc Price: Call Us |
| 11 |
41_112_11 |
Spacer-Disc Price: Call Us |
| 12 |
X-25-58 |
Washer Price: Call Us |
| 13 |
230540-S |
Shaft-Governor Cross Price: Call Us |
| 13 |
532174360 |
SHAFT ASM W/LOWER BEARING Price: $39.99 |
| 14 |
231355 |
Pin-GovemorStop Price: Call Us |
| 14 |
532174358 |
HOUSING, MANDREL 48" Price: $49.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
X-25-12 |
Washer Price: Call Us |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 16 |
A-235743-S |
Governor Gear Price: Call Us |
| 17 |
41_086_29 |
Screw-H.C. Sems Price: Call Us |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 18 |
41_755_31 |
Kit-Bracket Speed Control Price: Call Us |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
41_341_03 |
Knob Price: Call Us |
| 24 |
41_090_06 |
Lever-Choke Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
4875510 |
Kit-Clamp Price: Call Us |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
X-51-8 |
Screw Price: Call Us |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $39.99 |
| 27 |
X-25-102 |
Washer Price: Call Us |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 28 |
x-67-97 |
Screw Price: Call Us |
| 29 |
235778 |
Clip Price: Call Us |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 30 |
X-72-4 |
Nut Price: Call Us |
| 31 |
41_086_12 |
Screw-Fillister Hd. Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
41_090_18 |
Lever-Speed Control Price: Call Us |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
41_468_04 |
Washer-Wave Price: Call Us |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
52_448_01 |
Tab-Locking Price: Call Us |
| 35 |
41_112_04 |
Spacer-Speed Control Price: Call Us |
| 36 |
41_468_03 |
Washer-Wave Price: Call Us |
| 37 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 37 |
X-25-53 |
Washer Price: Call Us |
| 38 |
X-101-8 |
Nut-Hex Lock Price: Call Us |
| 39 |
41_411_02 |
Rod-Choke Link Price: Call Us |
| 39 |
532174375 |
PULLEY.DRIVEN.DECK.48' Price: $34.99 |
| 40 |
X-132-6 |
Screw Price: Call Us |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
532174373 |
ARM, IDLER SECONDARY Price: $9.99 |
| 45 |
532180806 |
COVER.MANDREL.DECK.48" Price: $12.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532180808 |
V-BELT, 48"SECONDARY Price: $49.99 |
| 48 |
532174368 |
V-BELT PRIMARY 48" Price: $49.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 52 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 54 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 55 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 72 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 91 |
529846201 |
SERVICE KIT BRKT.NOSEROLLER.RH This part replaces 532180535. Price: $5.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 94 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 95 |
529846101 |
SERVICE KIT BRKT.NOSEROLLER.LH This part replaces 532180534. Price: $5.99 |
| 97 |
532178515 |
WASHER Price: $5.99 |
| 98 |
532179479 |
SPRING PRIMARY DRIVE Price: $3.99 |
| 99 |
532193195 |
PULLEY.V.IDLER This part replaces 532189993. Price: $49.99 |
| 100 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 110 |
532175016 |
ARM, SPRING SECONDARY Price: $4.99 |
| 111 |
532174610 |
ARM SPRING FIXED TENSION Price: $6.99 |
| 113 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532174371 |
SPRING.DRIVE.SECONDARY.48".DEC Price: $5.99 |
| 126 |
532174372 |
ARM, IDLER PRIMARY DECK Price: $9.99 |
| 130 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 131 |
819131606 |
Washer 13/32 x 1.00 x 6 Ga. Price: $4.99 |
| 132 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 182 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 184 |
532173979 |
KEEPER BELT IDLER PLATED Price: $4.99 |
