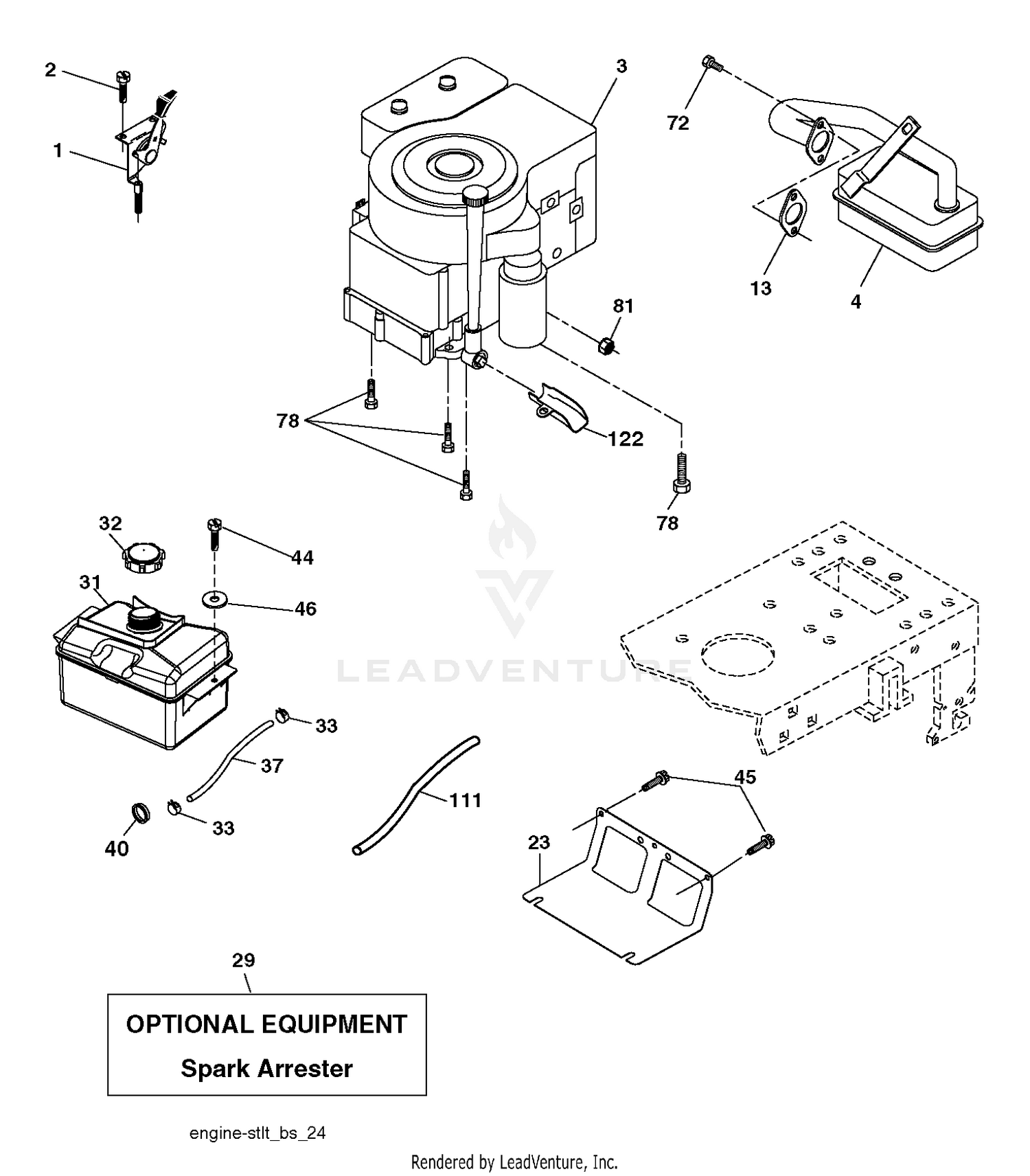

| Ref | Part Number | Description |
|---|
| 1 |
112-1403 |
ADAPTER ASM Price: $437.59 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $22.99 |
| 2 |
130-7823 |
ARM-LIFT This part replaces 112-1408. Price: $286.60 |
| 2 |
817240408 |
SCREW Price: $3.99 |
| 3 |
110-3362 |
BAR-PIVOT Price: $71.83 |
| 4 |
112-7695-03 |
HANDLE Price: $53.91 |
| 4 |
532137352 |
MUFFLER.LT.BRIGGS.14HP.IC/OHV Price: $29.99 |
| 5 |
112-7686 |
LATCH Price: $40.54 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 8 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 9 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
112-0038 |
SPACER Price: $7.34 |
| 13 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 14 |
99-7984 |
KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 15 |
75-5270 |
SPACER-KNOB, SEAT This part replaces 99-2058. Price: $4.61 |
| 16 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 17 |
144-7093 |
LINK ASM This part replaces 110-8105. Price: $105.96 |
| 18 |
92-2651 |
WASHER Price: $1.83 |
| 19 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 20 |
323-10 |
SCREW-HH Price: $0.89 |
| 21 |
132-4389 |
HANGER This part replaces 108-2941-03. Price: $129.61 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 23 |
532169837 |
SHIELD.BROWNING.DBR.GUARD Price: $7.99 |
| 23 |
84-2350 |
SPACER-LONG Price: $10.04 |
| 24 |
323-14 |
SCREW-HH Price: $1.34 |
| 25 |
323-15 |
SCREW-HH Price: $1.53 |
| 29 |
323-12 |
SCREW-HH Price: $1.14 |
| 30 |
323-47 |
SCREW-HH Price: $1.22 |
| 31 |
121-1760 |
SPACER Price: $1.45 |
| 31 |
532433003 |
TANK.ASM.1.5GAL.FRT.W/CAP.EPA Price: $119.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532438596. Price: $14.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
114-4320 |
ROD-HANDLE Price: $9.07 |
| 37 |
110-1364 |
CHAIN-PROOF, 12 LINK Price: $8.22 |
| 37 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 39 |
115-2090 |
PAD-WEAR Price: $43.56 |
| 40 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 40 |
532124028 |
GROMMET T Price: $3.99 |
| 41 |
47-2910 |
WASHER-THRUST Price: $12.99 |
| 42 |
66-9300 |
SCREW-HHF Price: $4.69 |
| 43 |
92-2739 |
PIN-CLEVIS Price: $8.48 |
| 44 |
100-5024 |
PIN-CLEVIS Price: $7.44 |
| 45 |
119-8969 |
NUT-HEX Price: $1.29 |
| 46 |
120-3499-03 |
BRACKET-STOP This part replaces 120-3499. Price: $23.48 |
| 47 |
121-9062-03 |
TUBE-TONGUE This part replaces 121-9062. Price: $85.05 |
| 48 |
121-9065-03 |
HITCH ASM This part replaces 121-9065. Price: $39.94 |
| 49 |
325-22 |
SCREW-HH Price: $4.26 |
| 50 |
325-7 |
SCREW-HH Price: $1.53 |
| 51 |
3218-5 |
NUT-JAM Price: $0.27 |
| 52 |
3233-14 |
SCREW-CARR Price: $1.95 |
| 53 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 72 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 111 |
532448562 |
KIT.PURGE.LINE.55" This part replaces 532414119. Price: $14.99 |
