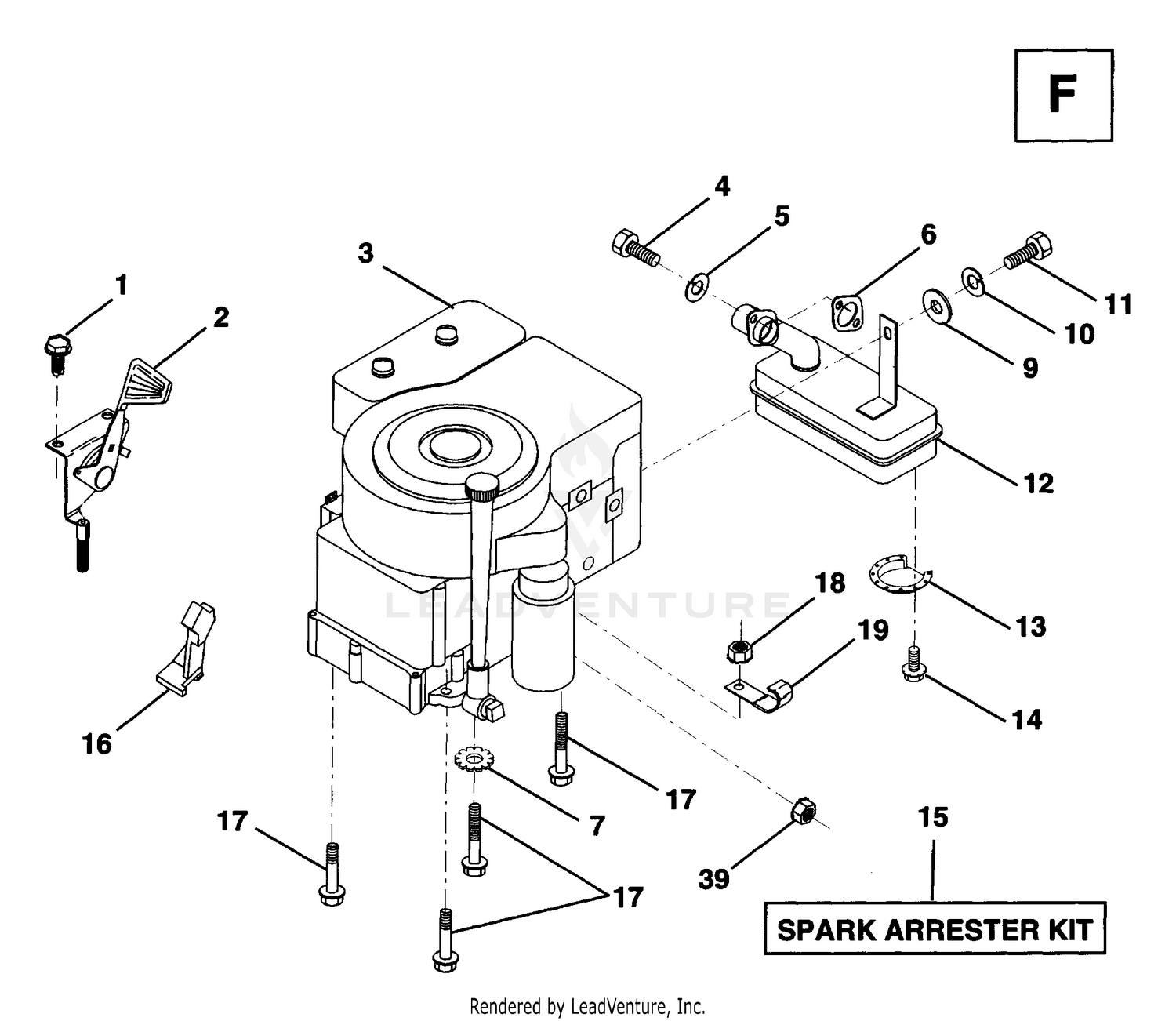

| Ref | Part Number | Description |
|---|
| 1 |
110-4752 |
CASE-GEAR, BEVEL Price: $237.26 |
| 1 |
817060408 |
SCREW Price: $4.99 |
| 2 |
110-4754 |
SEAL-OIL Price: $10.36 |
| 2 |
532133025 |
CONTROL.TH/CH.RH.BLK.FLG.EEC Price: $24.99 |
| 3 |
104-2378 |
BUSHING Price: $40.73 |
| 4 |
106-1069 |
O-RING Price: $5.20 |
| 4 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 5 |
104-2373 |
KNUCKLE Price: $58.69 |
| 5 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 6 |
104-2374 |
BOLT Price: $6.33 |
| 6 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532125593. Price: $8.99 |
| 7 |
100-3768 |
LH STEERING ARM ASM Price: $207.28 |
| 7 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 8 |
100-3766 |
RH STEERING ARM ASM Price: $207.28 |
| 9 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 10 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 10 |
95-7547 |
SHIM 0.1 Price: $2.53 |
| 10 |
95-7548 |
SHIM 0.2 Price: $3.52 |
| 10 |
95-7549 |
SHIM 0.3 Price: $3.82 |
| 11 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 11 |
99-7597 |
PIN-DOWEL Price: $3.74 |
| 12 |
104-2375 |
BOLT Price: $18.54 |
| 12 |
532137437 |
MUFFLER.SINGLE.B&S.12HP Price: $199.99 |
| 13 |
532101326 |
DEFL MUFFLER LTV Price: $4.01 |
| 13 |
99-7599 |
BOLT Price: $3.17 |
| 14 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 14 |
99-7525 |
STUD Price: $7.03 |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 16 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 18 |
106-1141 |
STEERING TIE ROD ASM Price: $642.02 |
| 18 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 19 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 39 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
