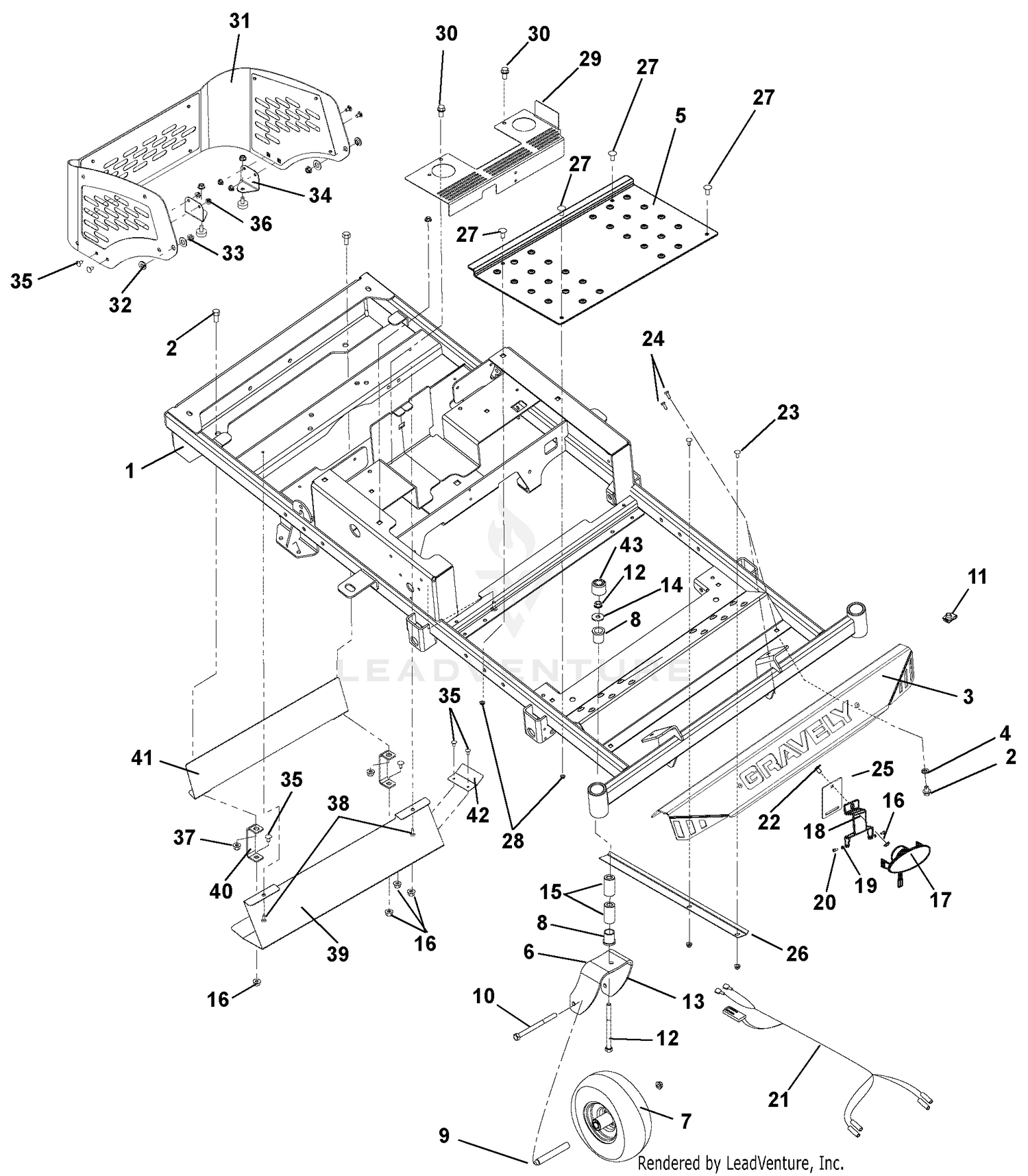

| Ref | Part Number | Description |
|---|
| 1 |
04559151 |
WLDMT, FRAME ZT/ZOOMXL (2013) Price: $1,210.45 |
| 2 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 3 |
04718253 |
WLDMT, FOOT-REST XL Price: $152.95 |
| 4 |
06300116 |
WSHR-LK-REG .375X.094 ZCC This part replaces 06308800. Price: $0.95 |
| 5 |
04186451 |
PANEL WLDMT, FOOT PLATE Price: Call Us |
| 6 |
03368553 |
WMT, CASTER FORK Price: $66.45 |
| 7 |
07100124 |
TIRE/WHEEL ASSY, 11X4-5 Price: $72.95 |
| 8 |
05500934 |
BSHG-FLG 1.00X1.25X1.50X1.50 This part replaces 05533600. Price: $6.95 |
| 9 |
00278500 |
SPACER, ROLLED WHEEL Price: $13.95 |
| 10 |
05901907 |
BLT, HEX .50-13X6.50 GR5 ZCC This part replaces 05964400. Price: $6.95 |
| 11 |
07053300 |
NUT-RTNR .375-16X.37 Price: $3.45 |
| 12 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 13 |
05901905 |
BLT, HEX .50-13X5.00 GR5 ZCC This part replaces 05962200. Price: $4.95 |
| 14 |
06401022 |
WSHR-FL-STL.511X1.44X.125ZC120 This part replaces 06436400. Price: $2.95 |
| 15 |
00363100 |
SPACER, CASTER .50X1.00X1.84 Price: $6.95 |
| 16 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC This part replaces 06543500. Price: $0.95 |
| 17 |
04815800 |
LIGHT ASSEMBLY Price: $76.45 |
| 18 |
04814851 |
BRKT, FOG LIGHT Price: $14.45 |
| 19 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 20 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 21 |
04730600 |
HARNESS, XL HEADLIGHT Price: $30.95 |
| 22 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC This part replaces 06219900. Price: $0.95 |
| 23 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 24 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 25 |
04728351 |
BRKT, LIGHT FRAME MOUNT Price: $6.45 |
| 26 |
03382551 |
BRACKET, LIGHT HARNESS Price: $20.45 |
| 27 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 28 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 29 |
04168351 |
BRACKET, XL CE FAN GUARD Price: Call Us |
| 30 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 31 |
51526700 |
ASM, ENGINE WRAP XL Price: $153.45 |
| 32 |
05501127 |
BSHG-FLG .325X.499X.3X.875 Price: $0.95 |
| 33 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC This part replaces 06528700. Price: $0.95 |
| 34 |
04717951 |
BRKT, XL ENGINE WRAP FOOT Price: $13.95 |
| 35 |
06200306 |
BLT, RHSN .25-20X.500 G5 ZCC This part replaces 06220600. Price: $0.95 |
| 36 |
06500710 |
NUT-LK-CTR-FLG .25-20 YWZC Price: Call Us |
| 37 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 39 |
04744751 |
GUARD, MUFFLER HEAT Price: $61.45 |
| 40 |
04744851 |
STRAP, MUFFLER GUARD Price: $20.45 |
| 41 |
04744951 |
SHIELD, HOT SURFACE Price: $27.45 |
| 42 |
04752651 |
DEFLECTOR, HEAT SHIELD Price: $22.45 |
