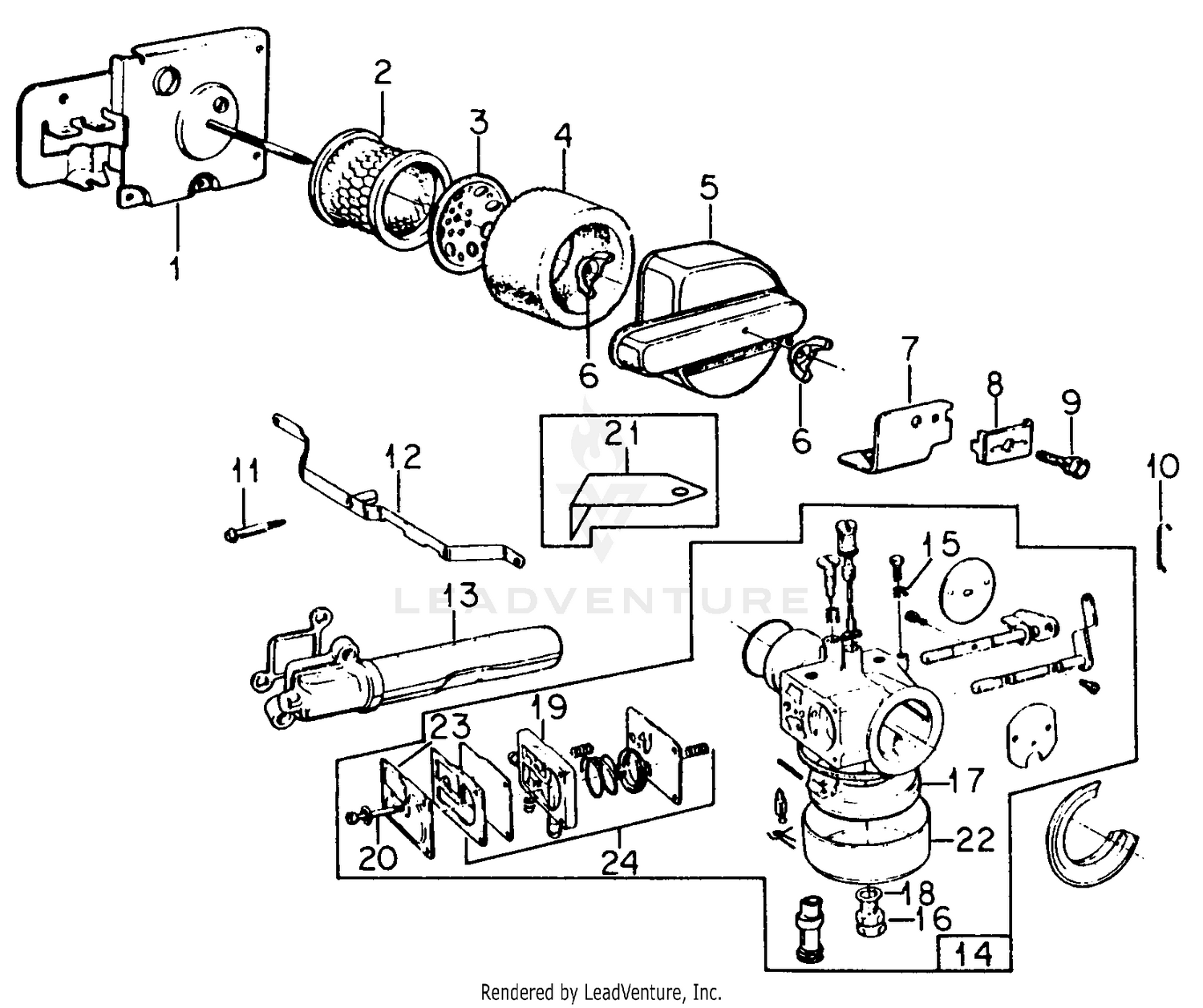

| Ref | Part Number | Description |
|---|
| 1 |
IH-76632-C1 |
PLATE Not Available Price: |
| 2 |
BS-392286 |
CLEANER Not Available Price: |
| 3 |
IH-76620-C1 |
Cup, Air Cleaner Price: Call Us |
| 4 |
BS-270973 |
ELEMENT Not Available Price: |
| 5 |
BS-392288 |
Cover, Air Cleaner Price: Call Us |
| 6 |
712-3044 |
NUT, 1/4 WING Not Available Price: |
| 7 |
IH-76587-C1 |
BRACKET Not Available Price: |
| 8 |
BS-691024 |
Clamp-Casing This part replaces BS-221535. Price: $6.90 |
| 9 |
BS-690804 |
SLOTTED HEX SCREW Not Available This part replaces BS-93496. Price: |
| 10 |
BS-261339 |
LINK Not Available Price: |
| 11 |
BS-93838 |
BOLT Not Available Price: |
| 12 |
BS-392292 |
LEVER-LINKAGE Not Available Price: |
| 13 |
IH-76618-C1 |
Manifold, Intake Price: Call Us |
| 14 |
BS-392690 |
CARBURETOR Not Available Price: |
| 15 |
BS-260575 |
Spring, Throttle Adjusting Price: Call Us |
| 16 |
IH-76573-C1 |
SCREW Not Available Price: |
| 17 |
BS-299707 |
FLOAT Not Available Price: |
| 18 |
BS-690618 |
WASHER Not Available This part replaces BS-222014. Price: |
| 19 |
BS-280162 |
BODY Not Available Price: |
| 20 |
BS-93829 |
Screw, Pump Cover Price: Call Us |
| 21 |
None |
Not used in this application |
| 22 |
BS-221995 |
CARB BOWL Not Available Price: |
| 23 |
808128 |
Flywheel Price: Call Us |
| 23 |
BS-222615 |
COVER Not Available Price: |
| 24 |
BS-393397 |
KIT Not Available Price: |
| 73 |
494439 |
Screen-Rotating Price: Call Us |
| 78 |
805447 |
Screw Price: Call Us |
| 332 |
806028 |
Nut-Hex. Price: Call Us |
| 333 |
492341 |
Armature-Magneto Price: Call Us |
| 334 |
805407 |
Screw-HH Price: Call Us |
| 353 |
92791 |
Washer-Lock Price: Call Us |
| 354 |
90576 |
Nut Price: Call Us |
| 356 |
493792 |
Wire-Stop Price: Call Us |
| 363 |
19203 |
Puller-Flywheel Price: Call Us |
| 474 |
393295 |
Alternator Price: Call Us |
| 501 |
394890 |
Regulator Price: Call Us |
| 507 |
398525 |
Insulator Price: Call Us |
| 520 |
93722 |
Terminal Price: Call Us |
| 526 |
805448 |
Screw Price: Call Us |
| 529 |
805641 |
Grommet Price: Call Us |
| 726 |
808162 |
Flywheel Ring Gear (Includes Hardware) Price: Call Us |
| 729 |
280470 |
Clip-Wire Price: Call Us |
| 851 |
493880 |
Terminal-Spark Plug Price: Call Us |
| 877 |
393537 |
Connector-Wire, Tri Circuit Price: Call Us |
| 531002366 |
531002366 |
Price: $66.85 |
| 531002367 |
531002367 |
Crankase Price: $60.62 |
| 531002370 |
531002370 |
SEAL RING Price: $9.99 |
| 531002371 |
531002371 |
SEAL RING Price: $6.99 |
| 531002372 |
531002372 |
SEALING RING Price: $7.99 |
| 531002373 |
531002373 |
Price: $0.81 |
| 531002374 |
531002374 |
RETAINING RING Price: $4.99 |
| 531002393 |
531002393 |
Price: $15.58 |
| 531002406 |
531002406 |
Price: $0.87 |
| 725533101 |
725533101 |
SCREW Price: $3.99 |
| 725533501 |
725533555 |
SCREW MC6S 5X30 This part replaces 725533501. Price: $2.99 |
