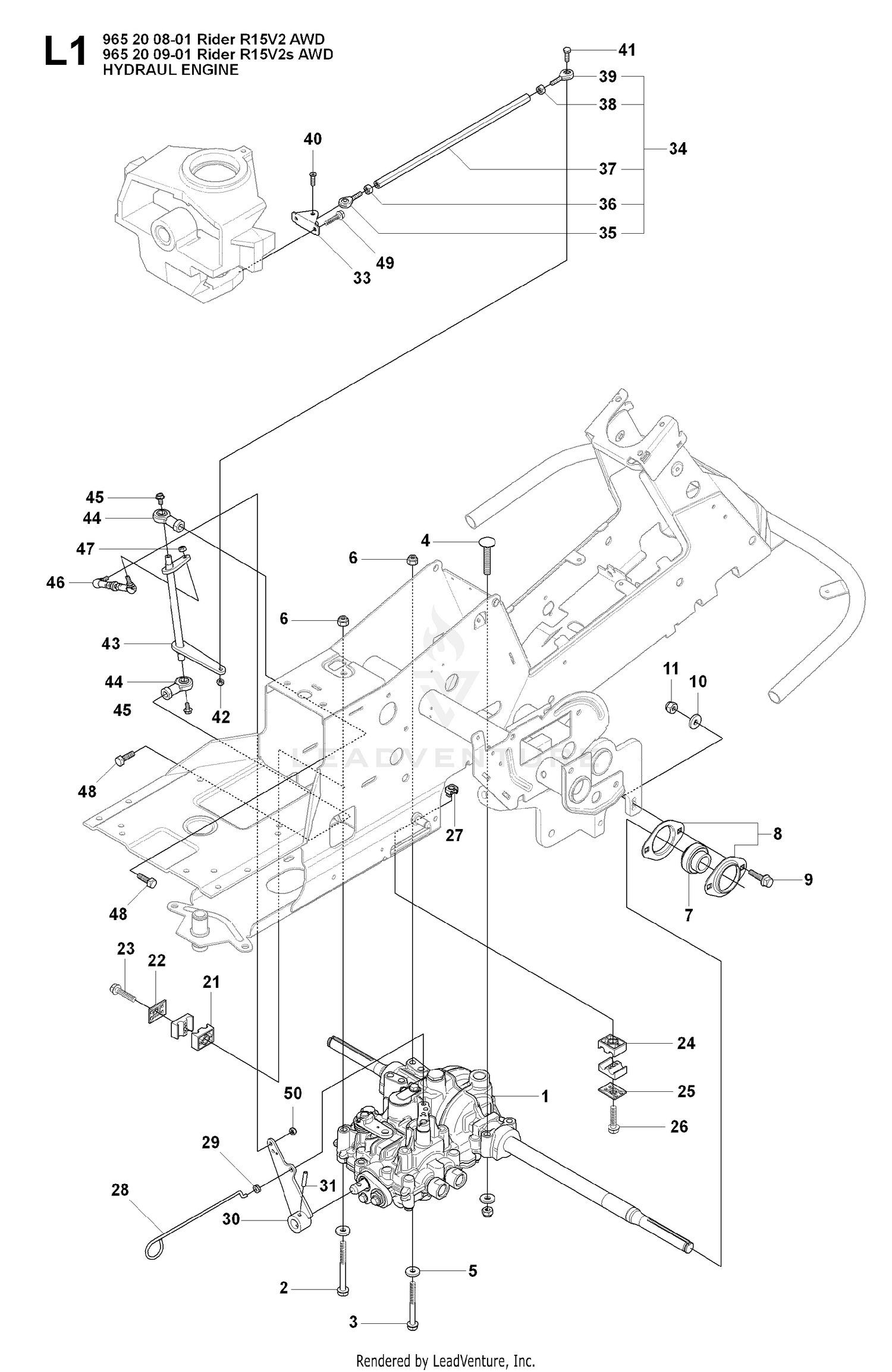

HYDRAULIC PUMP - MOTOR 2
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 575870301 | TRANSMISSION This part replaces 544116001. Price: $899.99 |
| 2 | 725246751 | Hex Bolt Price: $4.99 |
| 3 | 725246451 | SCREW Price: $5.99 |
| 4 | 535423803 | SCREW Price: $3.99 |
| 5 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 6 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 7 | 544008902 | BEARING This part replaces 544008901. Price: $64.99 |
| 8 | 544009001 | BEARING HOUSING Price: $17.99 |
| 9 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 10 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 11 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 21 | 544373303 | PIPE CLAMP Price: $4.99 |
| 22 | 535438501 | COVER Price: $4.99 |
| 23 | 725237861 | BOLT Price: $2.99 |
| 24 | 544373302 | PIPE CLAMP Price: $3.99 |
| 25 | 544373802 | COVER PLATE Price: $4.99 |
| 26 | 506570107 | SCREW EHHFM Price: $5.99 |
| 27 | 544811701 | CAGE NUT Price: $3.99 |
| 28 | 535499701 | ARM Price: $8.99 |
| 29 | 503735801 | FUEL TANK BUSHING Price: $5.99 |
| 30 | 544435201 | LEVER Price: $17.99 |
| 31 | 721434701 | PIN Price: $2.99 |
| 33 | 535492802 | BRACKET Price: $49.99 |
| 34 | 593959403 | NEEDS DESCRIPTION This part replaces 544456703. Price: $74.99 |
| 35 | 535486602 | LINK Price: $64.99 |
| 36 | 503221018 | NUT Price: $2.99 |
| 37 | 535486503 | ROD Price: $37.99 |
| 38 | 731231601 | NUT Price: $2.99 |
| 39 | 535486601 | LINK Price: $54.99 |
| 40 | 544841701 | SCREW Price: $2.99 |
| 41 | 725237071 | SCREW Price: $3.99 |
| 42 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 43 | 535497401 | LINK Price: $99.99 |
| 45 | 535475212 | SCREW EHHFM Price: $2.99 |
| 46 | 544441901 | ADJUSTING ROD Price: $17.99 |
| 47 | 732251601 | NUT FLANGE - M6 Price: $2.99 |
| 48 | 725249371 | Screw M10x25 Price: $1.82 |
| 49 | 725236651 | SCREW Price: $2.99 |
| 50 | 732211601 | LOCKNUT M6 Price: $4.99 |
